| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | BS80A |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | 10 work days after getting payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000 set per month |
| Product Name: | Fish Plate | Application: | Railway / Track / Railroad |
|---|---|---|---|
| Type: | 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. | Material: | 45#, 50# |
| Length: | 4 Hole 6 Hole | Standard: | BS, ASTM And DIN, Among Others. |
| High Light: | railroad fish plate,rail joint bar |
||

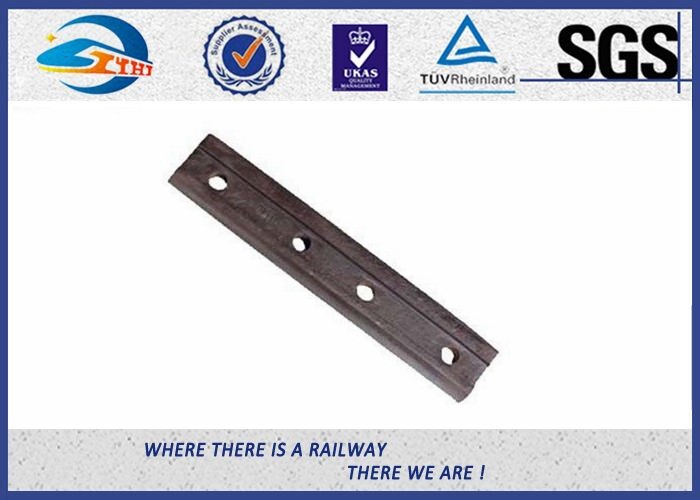

Plain Oiled 45 Steel Fish Plate Joint 4 Holes 6 Holes for UIC60 BS75R
ZHONGYUE specialize in producing rail fastening , fish plates are our main products , we produce many kinds of fish plates , which designed to join rail section of different size while keeping gage and running surface in alignment , the raw material we use is mid carbon steel & high carbon steel . The below list is available in our factory :
|
Type |
Length /Diameter |
Weight(Kg) |
|
115RE |
4 hole- 24″ |
17.04 |
|
115RE |
6 hole -36″ |
25.56 |
|
132-136RE |
4hole-24″ |
17.75 |
|
132-136RE |
6hole-36″ |
26.63 |
|
UIC60 |
4 hole - 630/￠26 |
18.07 |
|
UIC60 |
4 hole-600/￠28 |
17.47 |
|
UIC60 |
4 hole - 630/￠25 |
18.1 |
|
UIC54 |
4hole |
14.34 |
|
UIC54 |
6hole- 800 |
19.94 |
|
BS80A |
4hole |
6.5 |
|
BS90A |
685.8 / ￠26 |
13.23 |
|
BS90A |
792.9/￠26 .2 |
15.34 |
|
90/91LB |
4 hole |
18.08 |
|
90/91LB |
6hole |
19.9 |
|
50Kg |
4hole |
14.3 |
|
50Kg |
6hole |
19.5 |
|
BS75R |
4hole |
6.56 |
|
BS60A |
4hole |
5.61 |
|
S49 |
4 hole |
9.71 |
As a leading manufacturer of rail fastening in China ,ZHONGYUE also can produce many other railway fasteners , such as track bolt . Sleeper screw . track spike .tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .
Sticking to the “quality first” policy, ZHONGYUE pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
(Rail joint plywood, also called fishplate), is the first selection of rail joint connection products.
Plywood is a kind of used for connection using the connection between rail and rail fasteners.

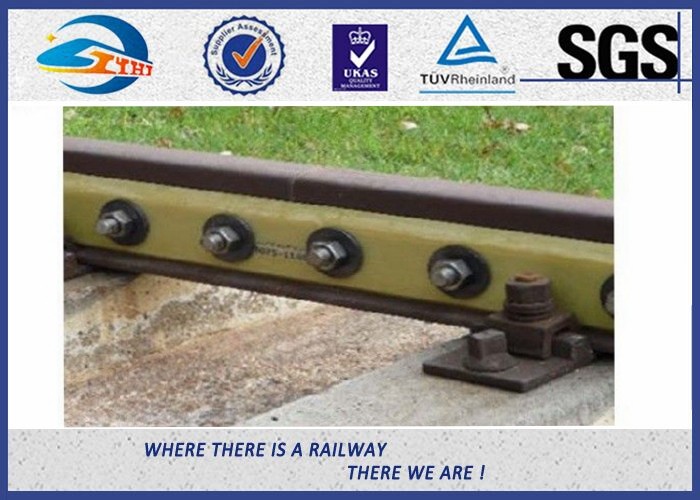

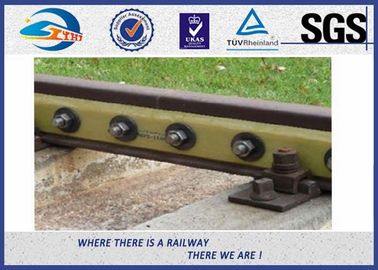

Fishplates are two section of track link of plywood .as the following picture
Standard: TB/T2345-2008
Material: 55 #
Model: 43 kg, 50 kg, 60 kg, 75 kg
Chemical composition
C Mn Si S P
0.52 0.60 0.50 0.80 0.17 0.37 0.035 0.035 or less or less
Mechanical properties of
Tensile strength of the Rm: p 785 Mpa
Yield strength ReL/Rr0.2: p 520 Mpa
Elongation A: 9% or higher
Reduction of area Z: 20% or higher
Brinell hardness HBW10/3000: HBW. 227-388
Cold bending d = 3 a: 30 degree, in good condition
Application
