Rubber Pad / Elastic Clip And Base Plate Rail Fastening System SKL12 For Subway

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: SKL12
Minimum Order Quantity: 10000sets
Price: Negociable
Packaging Details: 25kg/bags or carton, 36 bags/wooden pallet, 24 pallets/container
Delivery Time: 10 to 25 days according to your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 100,000 sets per week
Name: SKL12 Railway Fastening System Application: Railway, Subway
Contain: Screw Spike, Plastic Dowel, Elastic Clip, Rubber Pad, Guide Plate Sample: Available
Items Inside: Changeable Delivery: Timely
High Light:

railway track fasteners

,

vossloh fastening system

 Rubber Pad  / Elastic Clip And Base Plate Rail Fastening System SKL12 For Subway​



A rail fastening system is a means of fixing rails to railroad ties (United States) or sleepers (international). The terms rail anchors, tie plates, chairs and track fasteners are used to refer to parts or all of a rail fastening system. Various types of fastening have been used over the years.



A screw spike, rail screw (or lag bolt) is a large (~6 in or 152 mm length, slightly under 1 in or 25 mm) metal screw used to fix a tie plate or fasten rail. Screw spikes are fixed into a hole bored in the sleeper.



A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties by means of spikes or bolts through holes in the plate.



A Rail Pad is a resilient insulating material located between the rail foot and the sleeper, or baseplate surface.



A Spring Clip is a metal fastener made of spring steel which clamps the rail foot to the
sleeper or baseplate.



Fastening System Available

1. E type rail fastening system

2. Kpo rail fastening System

3. Nabla rail fastening system

4. SKL12, SKL13, SKL14 rail fastening System



Ss35 screw spike

M24×150mm
M24 ×160mm
M24×180mm

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized,

hot dip galvanized, Dacromet and sherardized

Standard: ISO898-1, UIC864-1 and NF F500-50

Plain washer

Uls7

Q235

Plain oiled, black oxide, galvanized,

hot dip galvanized, Dacromet and sherardized

Standard: EN10025, EN10139

Plastic dowel

For different sizes of screw spike

HDPE, Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other color

For insert into concrete sleeper

Guide plate

UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered

Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other color

Different designs are available

Rail pad

UIC54,UIC60, and size as ordered

EVA, or rubber

Black, blue, yellow, green or other color

Different designs are available

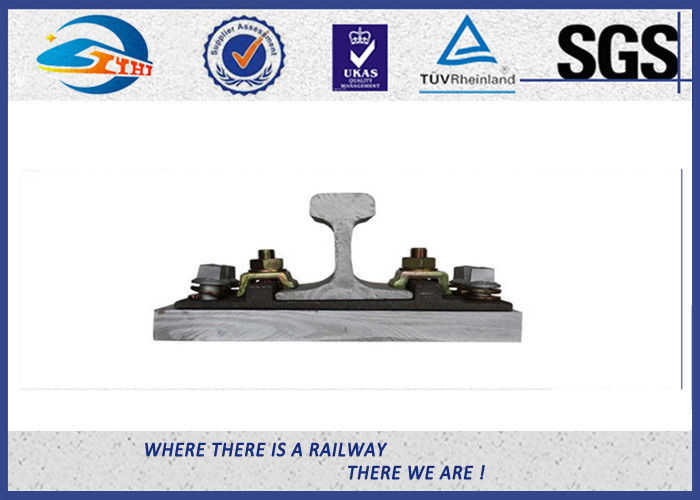

Rubber Pad  / Elastic Clip And Base Plate Rail Fastening System SKL12 For Subway 0

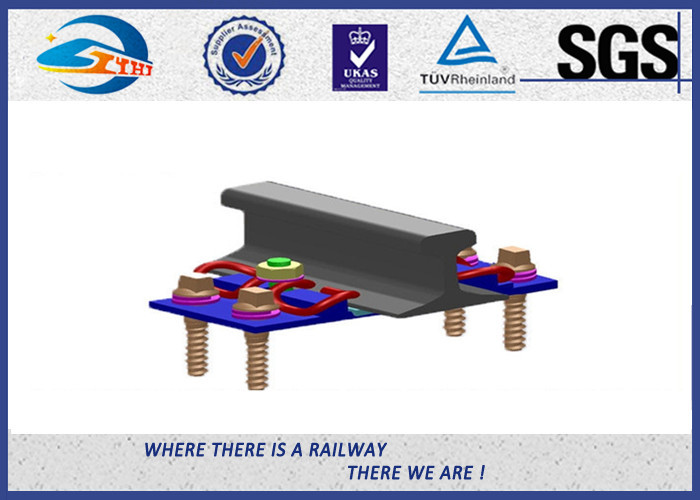

Rubber Pad  / Elastic Clip And Base Plate Rail Fastening System SKL12 For Subway 1
