Fixation of Rail Elastic Clip Oxide Black Pearlitic Malleable Iron Rail Shoulder

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Rail Sleeper Inserts
Minimum Order Quantity: 2000pcs
Price: Negociable
Packaging Details: 25kg/wowen pad, 36bags/pallet, 24pallets/container
Delivery Time: 15 to 25 days according to your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 50,000pcs perweek
Material: QT400-15 .QT450-10 .QT500-7. ZG25. ZG35. ZG45 Grade: 4.6, 5.6, 5.8, 6.8, 8.8
Surface: Plain Sample: Available
Customization: Acceptable Name: Fixation Of Rail Elastic Clip Oxide Black Pearlitic Malleable Iron Rail Shoulder
High Light:

iron shoulders

,

railway shoulder

Fixation of Rail Elastic Clip Oxide Black Pearlitic Malleable Iron Rail Shoulder

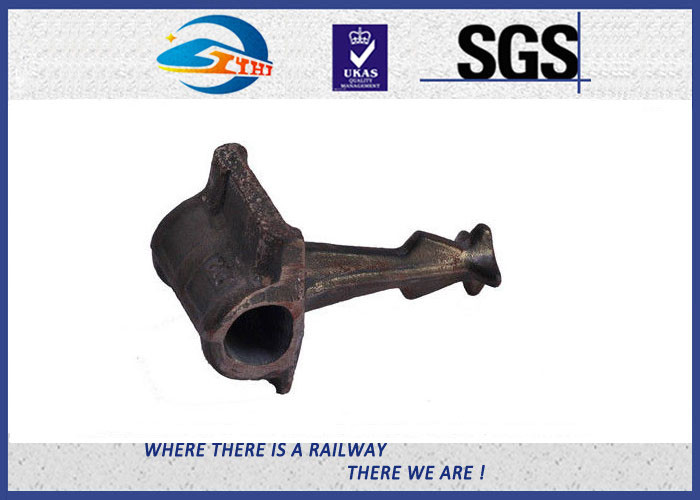

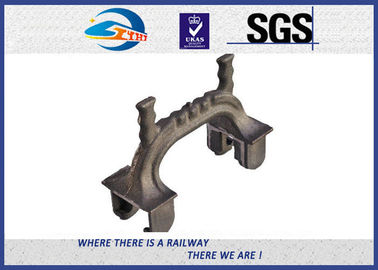

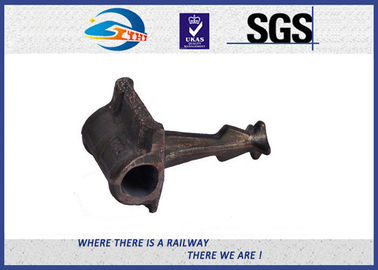

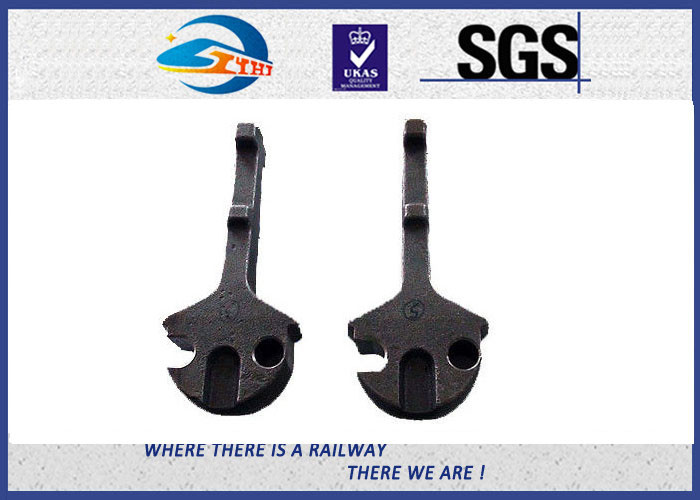

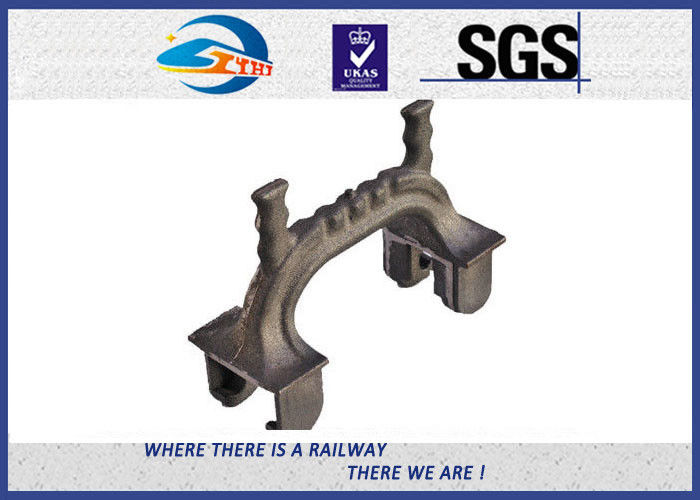

Inserts/Iron Shoulders are cast in the concrete ties for fixation of Elastic Rail Clips. Our Iron Shoulders are manufactured from pearlitic malleable iron (M. C. I. Inserts) and spheroid graphite iron (S. G. C. I. Inserts). We offer two types of Iron Shoulders: Single Stem Iron Shoulders mostly used in pre-stressed concrete ties, and Twin Stem Iron Shoulders commonly used in Bi-Block or Twin Block concrete ties.

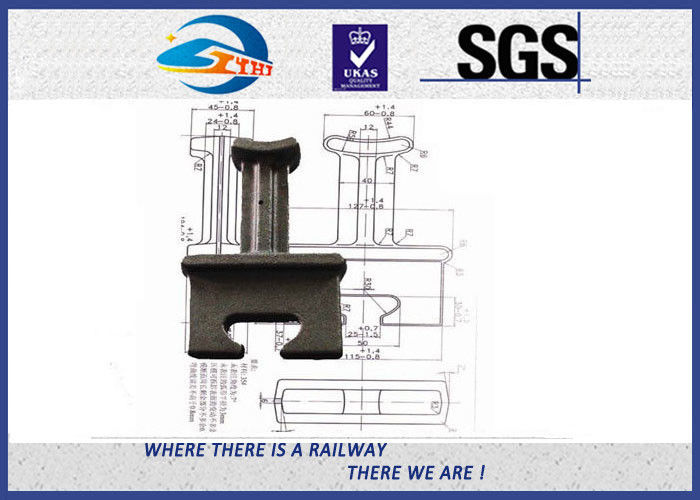

The shoulder accessories are supplied for specific rail sections with design criteria which ensure that the correct elastic clip toe loading is achieved. Certain shoulders are supplied with milled weld area faces to assist in achieving the necessary weld integrity.



Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

Fixation of Rail Elastic Clip Oxide Black Pearlitic Malleable Iron Rail Shoulder 0Fixation of Rail Elastic Clip Oxide Black Pearlitic Malleable Iron Rail Shoulder 1
