| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 10000sets |
| Price: | Negociable |
| Packaging Details: | according to clients' requirement |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000set per month |
| Product Name: | Rail Fastening System | Application: | Railway |
|---|---|---|---|
| Type: | E Type, Nabla Type, SKL Type, KPO Type, Etc. | Sample: | Available |
| Surface: | Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet | ||
| High Light: | railway track fasteners,railroad fasteners |
||

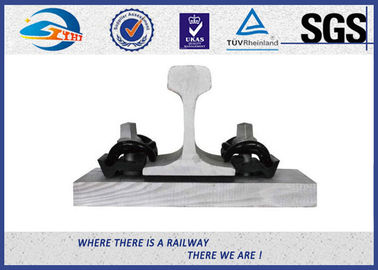

44 - 48HRC Hardness E Clip Vossloh Fastening Systems Bitumen Dacromet
Specifications:
Technical Parameters
|
Part name |
Type |
Material |
Finish |
Remark |
|
|
E clip |
Dia. 16mmDia. 18mmDia. 20mm |
60Si2MnA, 60Si2CrA,55SiMn |
Plain oiled, color painting, or the other custom finish |
Hardness: 44-48HRC |
|
|
Shoulder |
UIC54,UIC60, 115RE,50kg rail, 60kg rail,BS80lbs,BS100lbs |
QT500-7 QT450-10 |
Plain oiled, color painting |
Different designs are available. |
|
|
Rail pad |
UIC54,UIC60, BS80lbs,BS100lbs, in ordered size |
HDPE, EVA, or rubber |
Black or other colors |
Different designs are available. |
|
|
Insulator |
UIC54,UIC60, 50kg rail, 60kg rail,BS80lbs,BS100lbs, and size as ordered |
Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other colors |
Different designs are available. |
|
Technical Parameters
|
Part name |
Type |
Material |
Finish |
Remark |
|
Nabla clip |
Thickness 4mm or 4.5mm |
60Si2MnA, 60Si2CrA |
Plain oiled, red color painting, or the other required by customers |
Hardness: 42-47HRCFatigue |
|
Insulator |
UIC54, UIC60, S49 rails |
Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other colors |
Different designs are available. |
|
Double end screw spike |
UIC54, UIC60, 50kg rail, 60kg rail |
Grade 5.6: 35# |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Bending at 30 degree without crack. |
|
Special spring washer |
18.25×34×78mm |
ML08Al |
Plain oiled, black oxide, galvanized, hot dip galvanized |
For protecting the thread of the double end screw spike |
|
Hex nut |
As ordered |
Grade 5: 35# |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Standard: DIN985 |
|
Plain washer |
As ordered |
Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Standard: DIN125 |
Technical Parameters
|
Part name |
Type |
Material |
Finish |
Remark |
|
SKL14 tension clip |
Dia. 13mm |
60Si2CrA, 38Si7 |
Plain oiled, color painting, or the other required ones. |
Hardness: 42-47HRC |
|
Ss35 screw spike |
M24×150mm |
Grade 4.6: Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: ISO898-1, UIC864-1 and NF F500-50 |
|
Plain washer |
Uls7 |
Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: EN10025, EN10139 |
|
Plastic dowel |
For different sizes of screw spike |
HDPE, Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other color |
For insert into concrete sleeper |
|
Guide plate |
UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other color |
Different designs are available. |
|
Rail pad |
UIC54,UIC60, and size as ordered |
EVA, or rubber |
Black, blue, yellow, green or other color |
Different designs are available. |

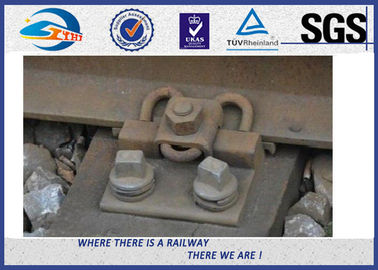

KPO Clamp Rail Fastening System
Technical Parameters
|
Part name |
Type |
Material |
Finish |
Remark |
|
KPO clip |
KPO3, KPO6, KPO9 |
Q235 |
Plain oiled |
Standard: DIN5906 |
|
HS bolt |
HS26, HS32 |
Grade4.6: Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Diameter: 22mm or 24mm. |
|
Hex nut |
As ordered |
Grade 5: 35# |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Standard: DIN985 |
|
Double coil spring washer |
As ordered |
65Mn |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Standard: UIC864-3 |
|
screw spike |
M24×150mm |
Grade 4.6: Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. |
Standard: ISO898-1, UIC864-1 and NF F500-50 |
|
Base plate |
UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size |
Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel |
Plain oiled |
Standard: UIC864-6 |
The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad fastener is extensively employed in South America and Australia.
The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The components for the rail fastening device are manufactured according to ISO 9001-2008 standard.
Fast Clip Rail Fastening System
The demand for fast clip rail fastening system is growing faster than other railroad fastener in the industry. It is generally pre-assembled in the factory of sleeper manufacturer. The high-safety rail fastener is a switch on-switch off system developed to meet the growing demand on fast clip rail fastening system. Our fast clip rail fastener is capable of satisfying user requirement on rapid installation, low installation cost, and low maintenance cost.
Both the clips and the toe insulators are installed at the parked position, where the side post insulators and pads are mechanically held in place. All the components are transported to the site. The installation of the fast clip rail fastening system is quite easy and can be conducted in different ways. The wide applications make this product quite popular.
