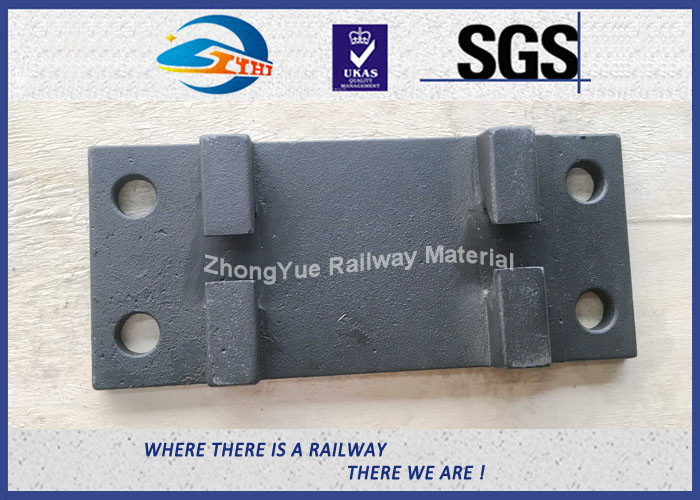

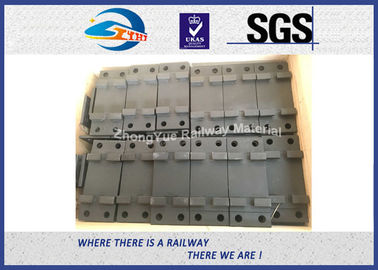

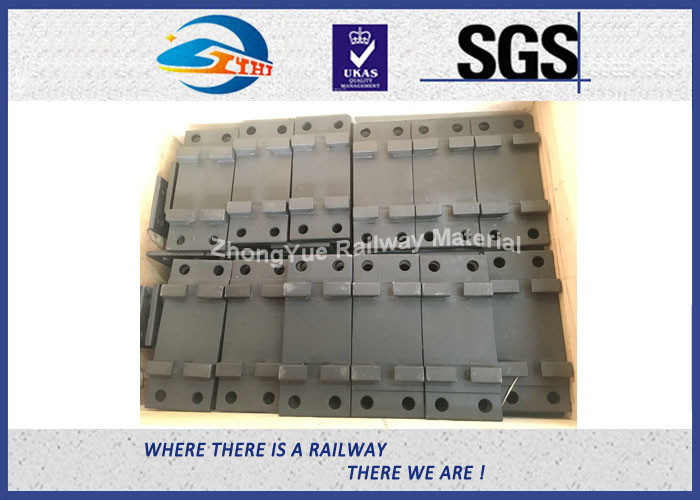

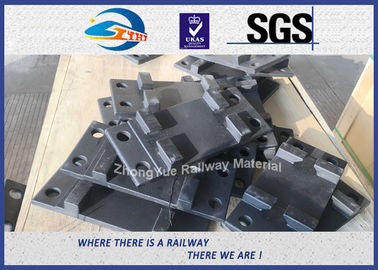

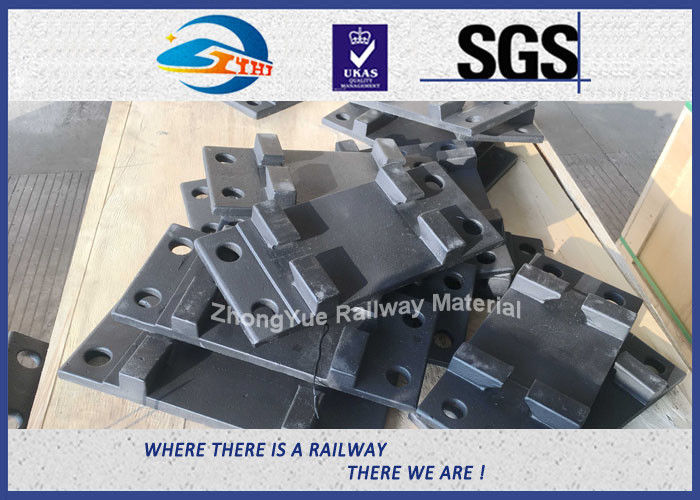

High Tensile Steel Base Plate QT500-7 For Railway KPO / SKL Fastening System


High Tensile Steel Base Plate for Railway KPO / SKL fastening system Nodular Cast Iron QT500-7


Railway Tie Plate QT500-7

Name: tie plate, base plate, steel plate, sole plate

Material: Q235, 45#, QT500-7

Specifications:

Tie plate is used in rail construction to support the rails. We can offer rail tieplate made using  either casting iron or casting steel for customers to choose from, depending on the load and the type of rails. Boltable as well as weldable clips can be applied. For the discontinuous type of support, we supply various ribbed tie plate which are also produced in casting iron or casting steel.
Tie plates are generally used to take the load of rail and distribute the load to the sleepers offering proven economies. We manufacture all types of base plates suitable for various rail sections, for use on wooden, steel or concrete sleepers and ballast less tracks used with elastic fastenings on wooden sleepers and 'K' type fastening system.
Cast iron can be the welded or fabricated type, depending upon the customers requirements. Our rail tie
plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.


Adhering to our quality first policy, ZHONGYUE pays great attention to quality control management on our tieplate. We have been granted ISO9001-2008 certificates and have received the production license of
 China's Railway Ministry on railway products
. We have a full set of inspection instruments to ensure all our rail tie plates are of high quality and up to
 customers' requirements.

Application



Surface Treatment
1.plain (oiled)
2.color paint
3.oxide Black (most choice)
4.Zinc
5.Hot dip galvanized
6.bitumenizing
7.wax
8.etc

Sale Range
1.Rail fastening system
2.Dog spike / Screw spike
3.Bolts & Nuts
4.Elastic clamp
5.Rail anchor
6.Rail shoulder
7.Fishplate
8.Base plate
9.Plastic / Rubber parts
10.Brake pad
11.Steel rail


Our Company
    Established in 2013, ZY has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are also a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
    Sticking to our quality first rules, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection equipments to make sure all our railway bolt products are of high quality and up to customers' requirements.
