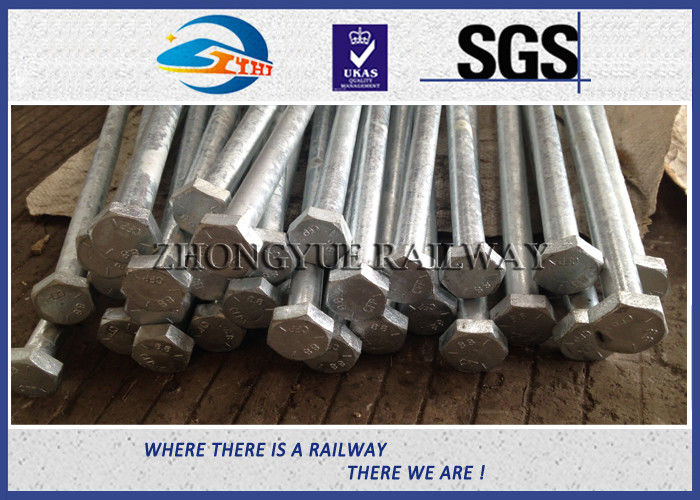

Oxide Black / Plain 8.8 Grade HEX Railway Bolt 24x3x1100mm With GB Standard

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: M24
Minimum Order Quantity: 5000pcs
Price: Negociable
Packaging Details: double layer woven bags on wooden pallet
Delivery Time: 45 days after order
Payment Terms: T/T, 30% in advance
Supply Ability: 1000 tons per month
Material: 45# Grade: 8.8,5.6,4.6
Surface Treatment: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing Type: HEX Head
Standard: GB Standard
High Light:

hexagon head bolt

,

steel bolts and nuts



GB Standard 8.8 Grade Railway HEX Bolt 24x3x1100mm with nuts and washers



Other Name:
Rail Bolt, HEX Bolt, Railway Bolt, Track Bolt,sleeper bolt,stud bolt,anchor bolt,clamp bolt,insert bolt

Description:

GB Standard 8.8 Grade Railway HEX Bolt 24x3x1100mm with nuts and washers are used to fasten rail ends together at a joint.

The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.

Oxide Black / Plain 8.8 Grade HEX Railway Bolt 24x3x1100mm With GB Standard 0

Standard:
DIN, JIS, ISO, ANSI, ASTM, BS, AS

Application:

Railway, Mining, Bridge, Construction and so on

Railway HEX Bolt GB Standard Hot Dip Zinc with 24x3x1100mm 45# material Specifications:
Grade:4.6/4.8/5.6/ 8.8/ 10.9
Dimensions:M20, M22, M24 M25, M27, M28, M30, M32, M40, M50and so on


BrandZhongYue
NameRailway bolt
TypeDIN931/DIN933
HEX Bolt
Or the type by customers’ drawings
Grade4.65.68.810.9
MaterialQ23535#45#40Cr
Mechanical propertiesTensile strength: ≥400MpaTensile strength:≥500MpaTensile strength:≥800MpaTensile strength:≥1000Mpa
Yield strength:≥240MpaYield strength:≥300MpaYield strength:≥640MpaYield strength:≥900Mpa
Elongation:≥22%Elongation:≥20%Elongation:≥12%Elongation:≥9%
Cold bending: 90 degree without crackCold bending: 90 degree without crackCold bending: 90 degree without crackCold bending: 90 degree without crack
Surfaceplain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refersDIN933/DIN931




Production Procedure GB Standard 8.8 Grade Railway HEX Bolt 24x3x1100mm with nuts and washers

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment

Oxide Black / Plain 8.8 Grade HEX Railway Bolt 24x3x1100mm With GB Standard 1


Production process 2.jpg

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

Railway High Strength Hex Bolts Grade 10.9 M24 With HDG Coating

Railway High Strength Hex Bolts Grade 10.9 M24 With HDG Coating


Zhongyue's products ranges:

Railway High Strength Hex Bolts Grade 10.9 M24 With HDG Coating

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail
