| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | M24 |
| Minimum Order Quantity: | 5000pcs |
| Price: | Negociable |
| Packaging Details: | double layer woven bags on wooden pallet |
| Delivery Time: | 45 days after order |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 1000 tons per month |
| Material: | 45# | Grade: | 8.8 |
|---|---|---|---|
| Surface Treatment: | Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing | Type: | HEX Head |
| Standard: | GB Standard | ||
| High Light: | hexagon head bolt,steel bolts and nuts |
||

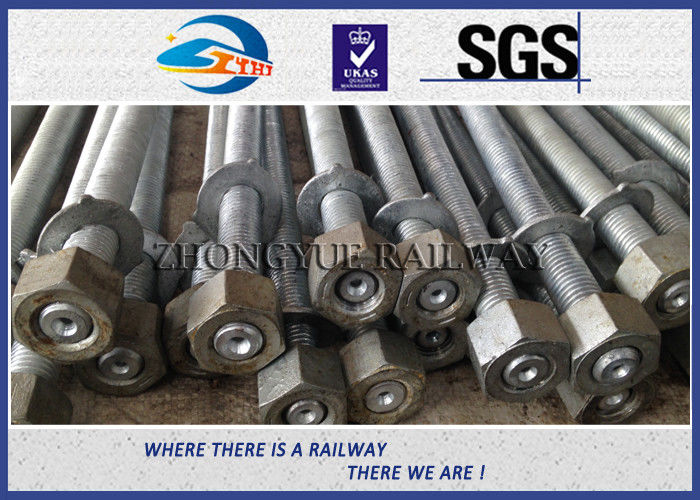

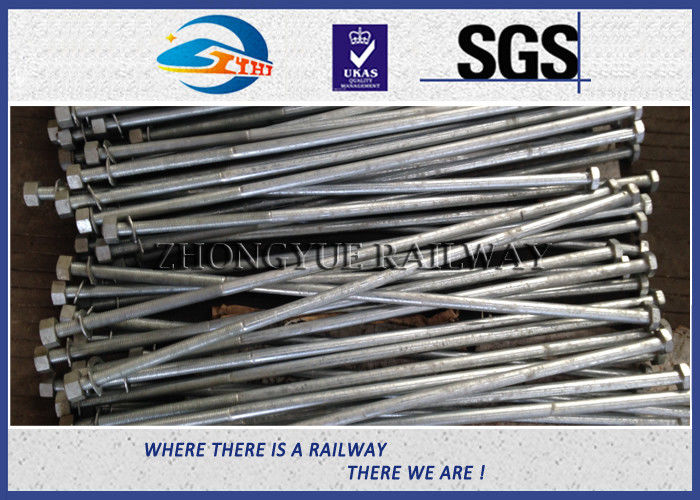

Railway HEX Bolt GB Standard Hot Dip Zinc with 24x3x1100mm 45# material
Other Name:
Rail Bolt, HEX Bolt, Railway Bolt, Track Bolt,sleeper bolt,stud bolt,anchor bolt,clamp bolt,insert bolt
Description:
Railway HEX Bolt GB Standard Hot Dip Zinc with 24x3x1100mm 45# material are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.
Standard:
DIN, JIS, ISO, ANSI, ASTM, BS, AS
Application:
Railway, Mining, Bridge, Construction and so on
Railway HEX Bolt GB Standard Hot Dip Zinc with 24x3x1100mm 45# material Specifications:
Grade:4.6/4.8/5.6/ 8.8/ 10.9
Dimensions:M20, M22, M24 M25, M27, M28, M30, M32, M40, M50and so on
| Brand | ZhongYue | |||
| Name | Railway bolt | |||
| Type | DIN931/DIN933 | |||
| HEX Bolt | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | DIN933/DIN931 | |||
Production Procedure
Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment
Surface Treatment
1.plain (oiled)
2.color paint
3.oxide Black (most choice)
4.Zinc
5.HDG
6.bitumenizing
7.wax
8.phosphatiert
Inspection facilities
1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine
4. Automatic Impact Testing Machine
5. Metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. Metallographic Specimen Polishing Machine
9. Metallographic Specimen Pointing Machine
