Place of Origin: | China |
---|---|
Brand Name: | ZhongYue |
Certification: | ISO9001:2015 |
Model Number: | Railway Fish Plate |
Minimum Order Quantity: | 1000pcs |
Price: | Negociable |
Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, 30% in advance |
Supply Ability: | 500,000pcs per month |

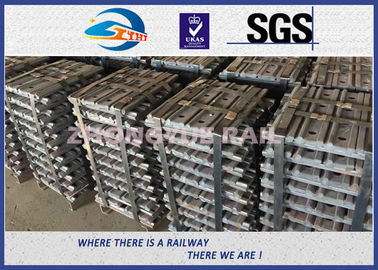

Product Name: | 4 Hole BS80A Railway Fish Plate Fishplate Railroad Fish Plate With Material 50# | Application: | Railway |
---|---|---|---|
Type: | 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. | Material: | 45#, 50# |
Length: | 4 Hole, 6 Hole | Standard: | BS, ASTM And DIN, Among Others. |
Package: | Pallets | ||
High Light: | railroad fish plate,steel fish plates |
The Fishplate (or Rail Joint Bars) inspection system is able to automatically detect any crack, scratch or any other defect. The system is able to measure from 0 to 320 km/h. The specific algorithm that regulates the inspection includes the fishplates and the missing bolts auto-detection as well as automatic detections of cracks in the fishplate.
Railroad track: railway rack made of parallel steel rails laid on wooden ties.
Rail: set of steel bars placed end to end in two parallel lines.
Fishplate bolt: piece of steel with a head at one end and threaded at the other, used in conjunction with a nut to connect the rails of a railway track.
Spike: curved piece of metal used to attach the base plate pad to the rail.
Tie: wooden plank laid perpendicular to and beneath the rails.
Tie plate: piece of metal that supports the rail.
Nut: piece of metal that holds a bolt in place.
Expansion space: space left between the rails to allow expansion when the temperature rises.
Type |
Length/Diameter |
Weight(Kg) |
115RE |
4 hole- 24 ″ |
17.04 |
115RE |
6 hole -36 ″ |
25.56 |
132-136RE |
4hole-24 ″ |
17.75 |
132-136RE |
6hole-36 ″ |
26.63 |
UIC60 |
4 hole - 630/ ¢ 26 |
18.07 |
UIC60 |
4 hole-600/ ¢ 28 |
17.47 |
UIC60 |
4 hole - 630/ ¢ 25 |
18.1 |
UIC54 |
4hole |
14.34 |
UIC54 |
6hole- 800 |
19.94 |
BS80A |
4hole |
6.5 |
BS90A |
685.8 / ¢ 26 |
13.23 |
BS90A |
792.9/ ¢ 26 .2 |
15.34 |
90/91LB |
4 hole |
18.08 |
90/91LB |
6hole |
19.9 |
50Kg |
4hole |
14.3 |
50Kg |
6hole |
19.5 |
BS75R |
4hole |
6.56 |
BS60A |
4hole |
5.61 |
S49 |
4 hole |
9.71 |
Zhongyue's products ranges:
Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Thread rolling —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment
Company Profile:
Founded in 2013, located at No.199 Huanlou Road, development zone Kunshan city, we Suzhou Zhongyue Railway Material Co., Ltd. Is a leading and reputed manufacturer of qualified railway fasteners in China.
We are certified by ISO 9001:2008. We have a complete set of inspection equipments to strictly control the quality of each production procedure and make sure all the products reach the international standards and customers’ requirements.
ZY team is composed of high professional senior engineers, professional technicians and a group of highly experienced operation workers, this is the strong guarantee of our products quality. We have our own R&D team, after-sales service team and quality-assurance team with the most advance technology and management concepts.
With advanced technology, comprehensive testing facilities, excellent management team and powerful processing capacity, our products have been exported worldwide. After many times of inspections by BV, SGS,ABS etc, our products have been well recognized by our customers. We are qualified supplier of Kazakhstan Railway, Thailand Railway, Zambia Railway, Indonesia Railway, Malaysia Railway, Sweden Railway, New Zealand Railway, American Railway, Canada Railway etc, supplying all kinds of railway material to them for many years without any quality complaint.
We not only can produce according to International standards, customers’ drawings and samples, but also can provide design proposal by our own high standard R&D department.
With the principles of quality first and customers first, ZY Rail enjoys bulk popularity and high reputation at home and abroad, while having many customers all over the world. With powerful strength and broad vision, ZY rail is moving towards internationalization of enterprises.
