Railway Track Fasteners Railroad Bolts Railway Track Fittings 45# Grade 8.8

China Railway Track Fasteners Railroad Bolts Railway Track Fittings 45# Grade 8.8 supplier

Large Image :  Railway Track Fasteners Railroad Bolts Railway Track Fittings 45# Grade 8.8

Product Details:

Place of Origin: jiangsu China
Brand Name: zhongyue
Certification: ISO9001:2008
Model Number: 24x145mm

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: Negotiable
Packaging Details: Plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 days after received your payment
Supply Ability: 500000PCS/MONTH
Detailed Product Description
Product Name:: Railway Track Fasteners,Fish Bolts, Railway Track Fittings 45# Grade 8.8 Material:: 45#
Grade:: 8.8 Application:: Railway Track Fasteners
Main Surface Treatment:: Oxide Black Package:: Woven Bag, Wood Pallet



Railway Track Fasteners,Fish Bolts, Railway Track Fittings 45# Grade 8.8

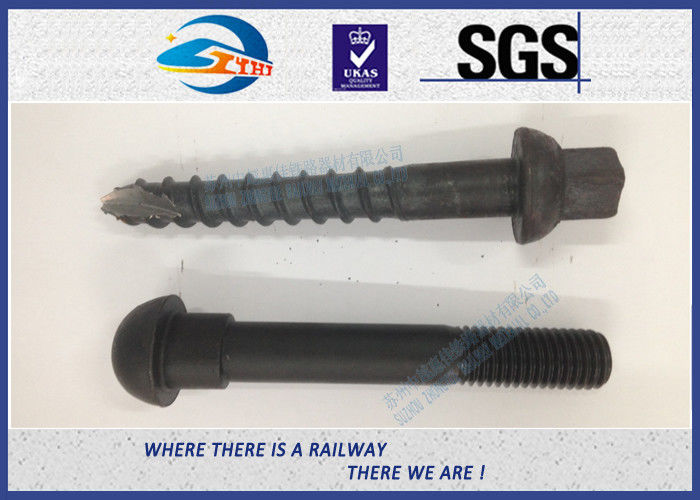

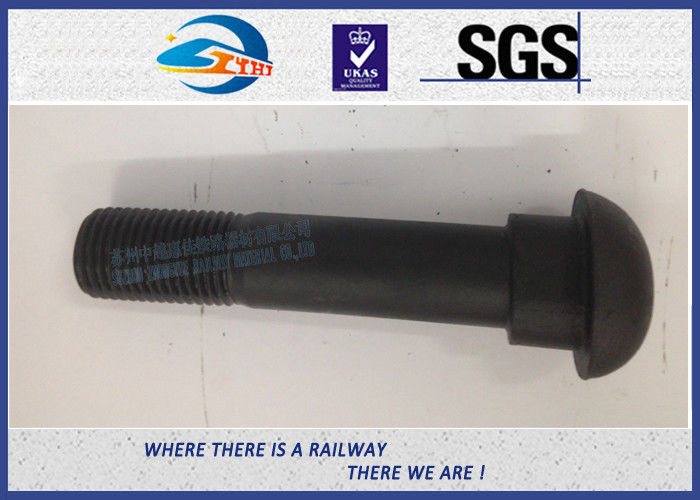

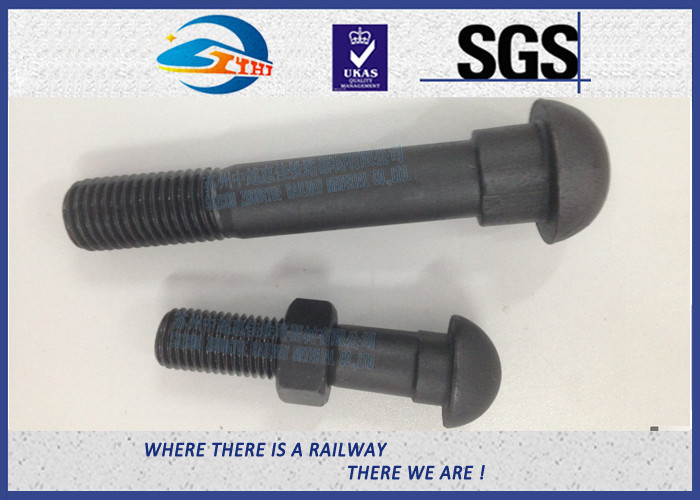

Track bolts are normally hex domed head bolts. They are used to secure the track plates to the track  on crawler equipment . Zhongyue track bolts are forged from alloy steels and heat-treated to the specifications of the original rail fasteners manufacturers.

They are secured by either squared, hexagon or special domed railway track nuts.




Brand ZhongYue Brand
Name Rail bolt
Type HS26/HS32
Russian clamp bolt & inserted bolt
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers UIC864-2

Railway Track Fasteners Railroad Bolts Railway Track Fittings 45# Grade 8.8




Established in 2013, ZhongYue company has become one of the largest  of Railway fasteners producers in China. Our products are produced according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are tested frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a sound supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.




Aplication

Railway, Mining, Bridge, Construction and so on

Inspection machine for finished rail clips

Our main products:


Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
