1'' x130mm Railway Track Bolts , Fish Bolts With Plain Oiled Treatment

Basic Information
Place of Origin: jiangsu China
Brand Name: zhongyue
Certification: ISO9001:2008
Model Number: 1''x130mm
Minimum Order Quantity: 10000PCS
Price: Negotiable
Packaging Details: Plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 days after received your payment
Supply Ability: 500000PCS/MONTH
Contact Now
Product Name:: 1''x130mm Railway Track Bolts, Fish Bolts With Plain Oiled Treatment Material:: Q235. 35#. 45#. 40Cr
Grade:: 4.6 4.8 5.6 8.8 10.9. Application:: Fastening Part
Main Surface Treatment:: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Package:: Woven Bag, Wood Pallet
High Light:

railroad bolts

,

hexagon head bolt

1''x130mm railway track bolts, fish bolts with plain oiled treatment

Track bolts are generally hexagon domed head bolts. They are used to secure the track plates to the track chains on crawler equipment such as bulldozers. Ajax track bolts are forged from alloy steels and heat-treated to the specifications of the original equipment manufacturers.

A tensile strength of 170,000 lbf/in2 provides 14% more clamping force that SAE J 429 Grade 8. Impact resistance is greatly improved by tempering and fatigue resistance reduced by having rolled threads and a smooth under-head radius. Some bolts may be heat-treated to 185,000 lbf/in2 depending upon the requirements of the application.

Track bolts are made in either inch-series with UNRF or UNRS threads, or metric with fine-pitch threads. They are secured by either square, hexagon or special domed track nuts.


Standard:DIN, JIS, ISO, ANSI, ASME, BS, AS

Grade:4.8/ 8.8/ 10.9/ 12.9

Dimensions:M8, M10, M12, M14, M16, M18, M20, M22, M24 and so on

Surface Treatment:Zinc-plated, Plain, Black Anodize, Dacroment



Brand ZhongYue
Name Railway bolt
Type HS26/HS32
Russian clamp bolt & inserted bolt
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers UIC864-2

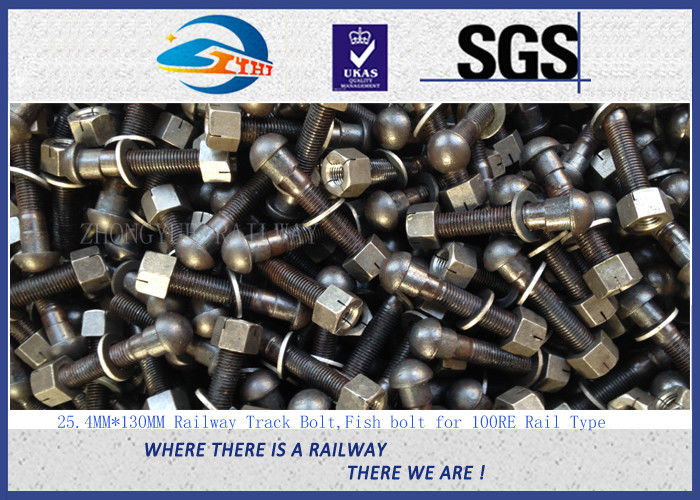

1'' x130mm Railway Track Bolts , Fish Bolts With Plain Oiled Treatment 0

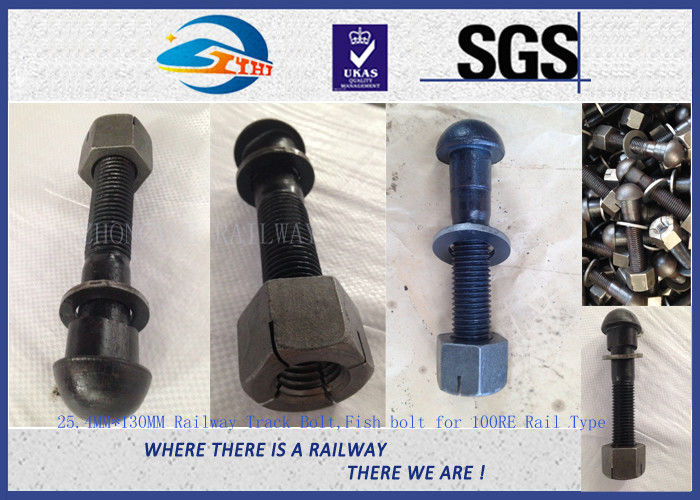

1'' x130mm Railway Track Bolts , Fish Bolts With Plain Oiled Treatment 1

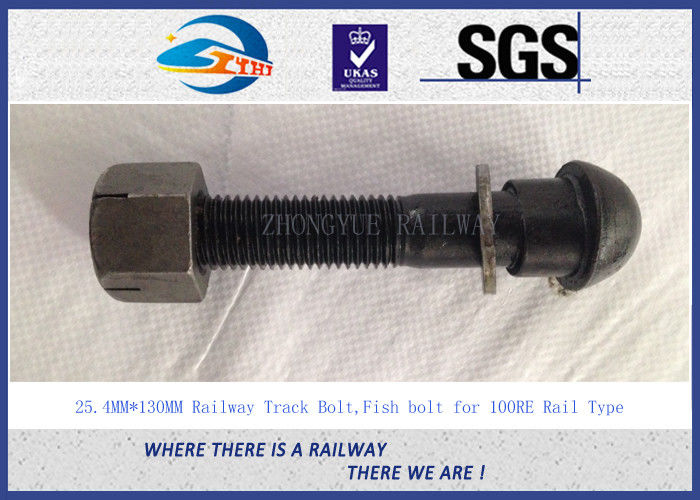

1'' x130mm Railway Track Bolts , Fish Bolts With Plain Oiled Treatment 2


Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.


Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.



Aplication



Railway, Mining, Bridge, Construction and so on





Production Procedure



Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment



Production process 2.jpg



Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

Zinc Plated Forged Bolts Track Fish Bolts And Nuts For Railway

Zinc Plated Forged Bolts Track Fish Bolts And Nuts For Railway
