Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

China Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6 supplier
Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6 supplier Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6 supplier Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6 supplier

Large Image :  Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Product Details:

Place of Origin: Suzhou,China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001-2008
Model Number: ZHONGYUE SS8-165

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Price: USD0.4 to USD1.2
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container
Delivery Time: 10 to 30 days according to your order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Product Name:: Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6 Application:: Railway, Subway, Mine
Material:: Q235, 35#, 45#, 40Cr Surface Treatment:: HDG, Oil, Oxide Black, Wax
Brand:: Zhongyue Grade:: 4.6, 4.8, 5.6, 8.8
Standard:: ISO898-1, UIC864-1, And NF F500-50 Hardness:: 43-47
Tensile Strength:: ≥800Mpa Yield Strength:: ≥640Mpa
Elongation:: ≥12% Cold Bending:: 90 Degree Without Crack
Customization:: Acceptable Samples:: Available

Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Product Description

Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers.

Characteristically, the sleeper screw thread may only be produced in a hot-forming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of therail sleeper screws.ZHONGYUE can supply a range of rail sleeper screw spikes manufactured to international standardsaccording to BS, ASTM and DIN, among others. ZHONGYUE has extensive experience in the rail industry and a high level of expertise in this specialized field. ZHONGYUE can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.





Name 8.8 Grade 45# Oxide Black Screw Spike Insert Plastic Dowel for Railway Fastening system
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical

properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

  Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50





Application of Screw Spike

Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

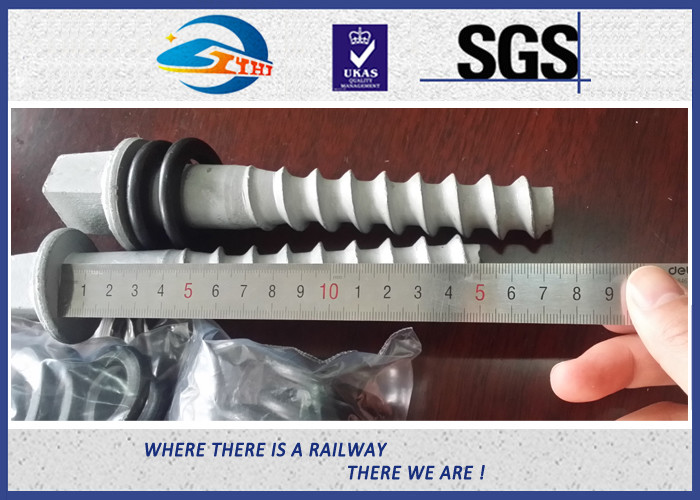

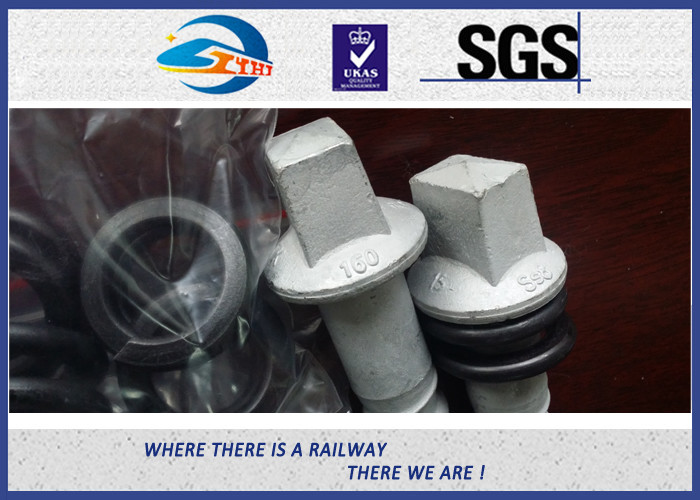

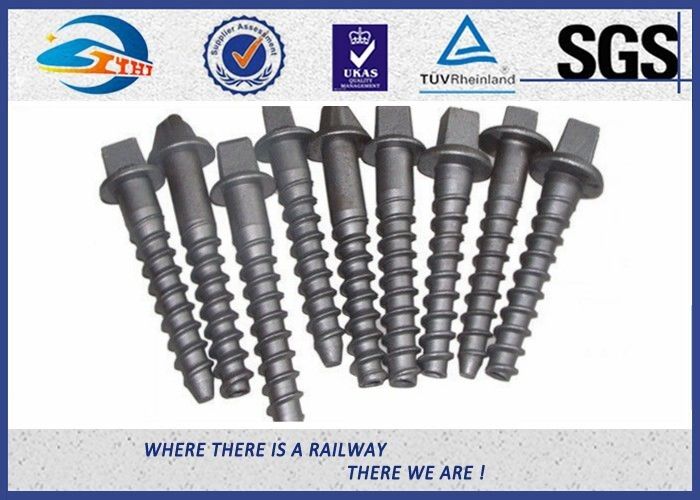

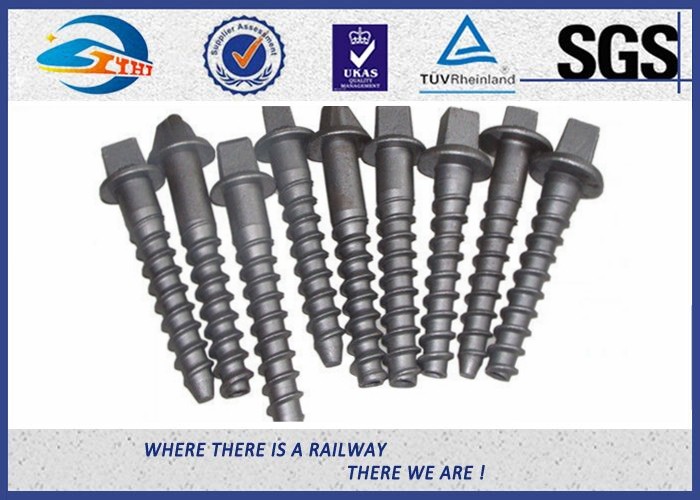

Photos Details of Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6



Zhongyue's products ranges:



customize track spikes / threaded spike / screw spike for Rail fastening system



  • Rail Fastening
  • Rail Sleeper Screw
  • Rail Spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nul
  • Rail Fastening System
  • Crane rail

Production process of Custom Railroad Screw Spikes Q235 Concrete Sleepers Grade 5.6

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Thread rolling —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment



10.9 Grade 40Cr Steel Oxide Black Screw Spike Insert  Plastic Dowel Railway Fasteners



Company Profile:



Founded in 2013, located at No.199 Huanlou Road, development zone Kunshan city, we Suzhou Zhongyue Railway Material Co., Ltd. Is a leading and reputed manufacturer of qualified railway fasteners in China.
