Customized 6m - 12m Overhead Crane Track / Steel Rail Track GB15KG GB22KG GB30KG

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Minimum Order Quantity: 20 tons
Price: Negociable
Packaging Details: in Bundle, in Bulk
Delivery Time: about 30 days after receiving advance payment.
Payment Terms: T/T, 30% in advance
Supply Ability: 3000tons/month
Production Name:: Chinese Standard Light Rail, Steel Crane Rail With Customized Length Material:: Q235B/55Q
Standard:: GB11264-89/YB222-63 Length:: 6-12m,Customized Acceptable
Weight:: 5.98(KG/M) Application:: Crane Rail
Samples:: Available Upon Request
High Light:

tram rails

,

steel rail track



Detailed Product Description



Chinese standard Light Rail, steel crane rail with customized length

ZHONGYUE Steel crane rail:



The steel rail is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.



Due to high quality and competitive prices, our rails have been exported to over 50 countries, including America, Brazil, Canada, Germany, Britain, Spain, Belgium, Poland, India, Thailand, Malaysia, and Sudan, etc.



In order to ensure better quality, the steel rails have to undergo various tests, such as chemical composition test, tensile strength test, hardness test and drop weight test.





Chinese standard Light Rail, steel crane rail with customized length

Chinese standard Light Rail, steel crane rail with customized length































































The light rails are mainly used for laying temporary hauling tracks in forested areas, factories, mines, and construction areas. As an experienced manufacturer of light rail in China, we can provide high quality GB standard light rails at low prices.



Application:



1. Used under traveling wheel of various cranes such as overhead crane, gantry crane, portal crane, launching crane, flat car, girder carrier, etc.

2. Used in the field of train travel

3. railway construction, shipbuilding, bridge construction



Specifications

China Standard/ Light Rail
Standard:GB11264-89


Size
Dimension(mm)
Weight(kg/m)

Material

Length(m)
Head(mm) Height (mm) Bottom(mm) Web(mm)
GB6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12
GB9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12
GB12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12
GB15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12
GB22KG 50.3 93.66 93.66 10.72 22.3 Q235B/55Q 6-12
GB30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12
Standard:YB222-63
Size Dimension(mm)
Weight(kg/m)

Material

Length (m)
Head(mm) Height (mm) Bottom(mm) Web(mm)
8KG 25 65 54 7 8.42 Q235B 6-12
18KG 40 90 80 10 18.06 Q235B/55Q 6-12
24KG 51 107 92 10.9 24.46 Q235B/55Q 6-12



Note:Infomation listed above is for reference only, please contact us for safe.

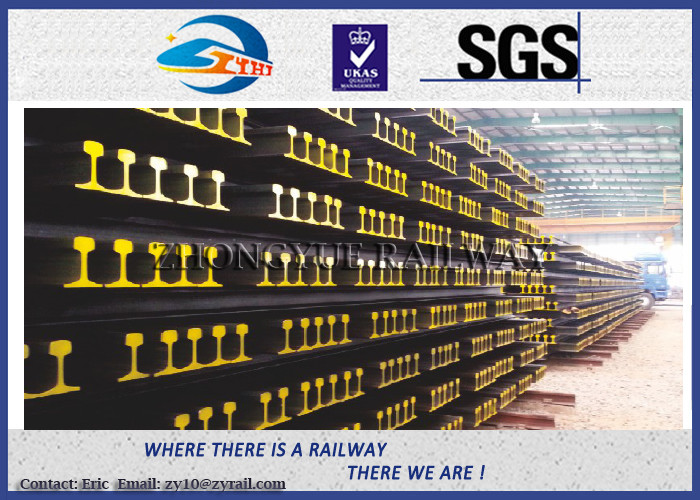

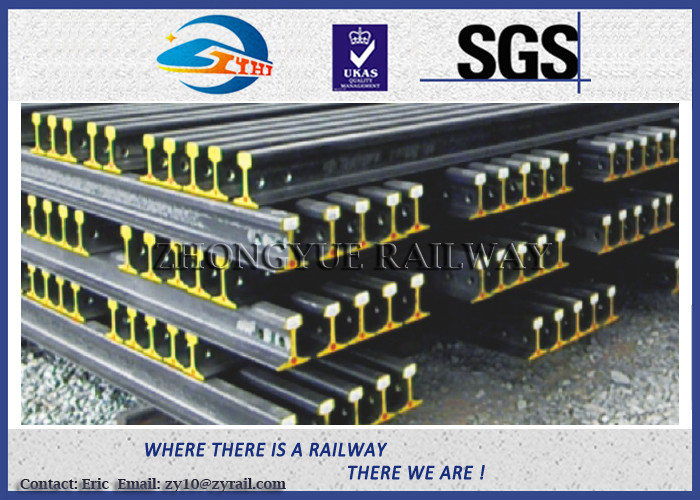

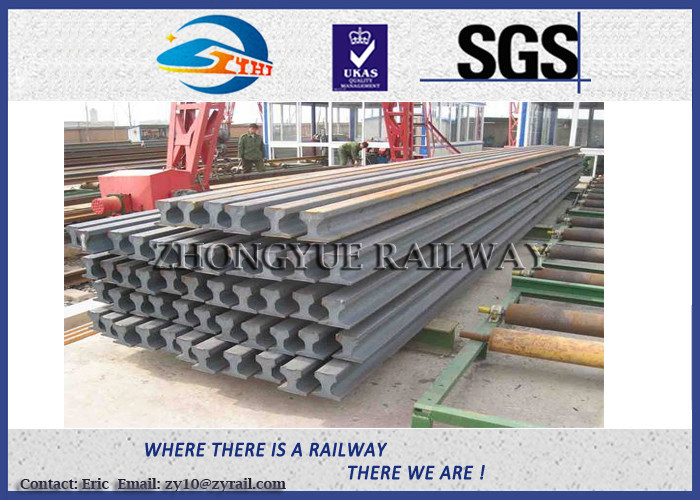

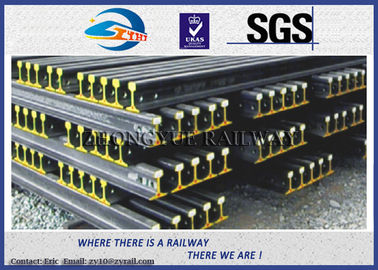

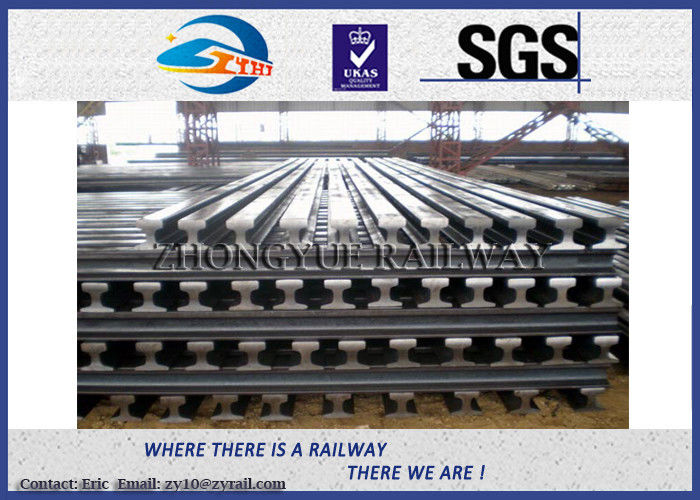

Photo of Chinese standard Light Rail, steel crane rail with customized length



Customized 6m - 12m Overhead Crane Track / Steel Rail Track GB15KG GB22KG GB30KG 1

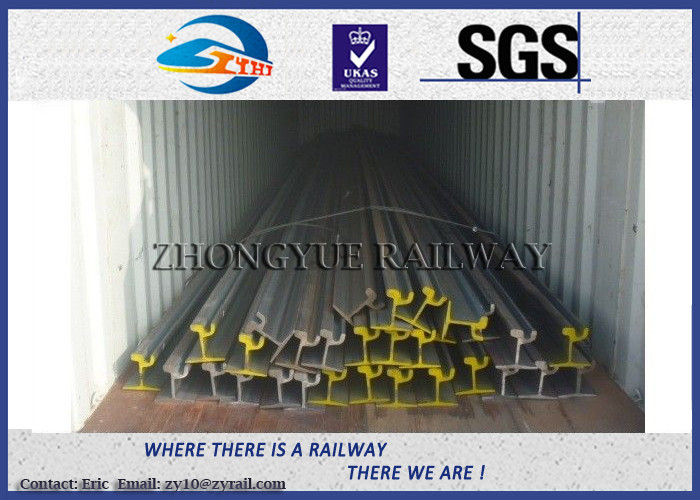

Pakaging of the light stell crane rail:



Package of zhongyue Chinese Standard Light Rail,crane rails

ZHONGYUE'S PRODUCTS RANGES:



Rail fastening system, screw spike, track spike,elastic clip,tie plate,fish plate,brake block,crane rail



For more details of the crane rail light rail OR any demands on the Light rail,

pls kindly contact us.



CONTACT ZHONGYUE FOR CRANE RAL INQUIRY!



Other names different people usually say:



Steel rail, hearty steel rail, rail, ISO Chinese standard heavy rail, crane rail, light steel rail, iron rail, steel rail of railway system, high strength steel rail, new steel rail, hot rolled rail, DIN rail, GB rail,

hot rolled light rail, steel crane rail, hot rolled rail, standard rail, rails for mining, High quality carbon light steel rail(Q235 55Q.....manufacture), European standard rail.
