Payment & Shipping Terms:
|Product Name:||Steel Rail||Application:||Railroad|
|Weight:||44.653kg/m||Length:||12.5m - 25m|

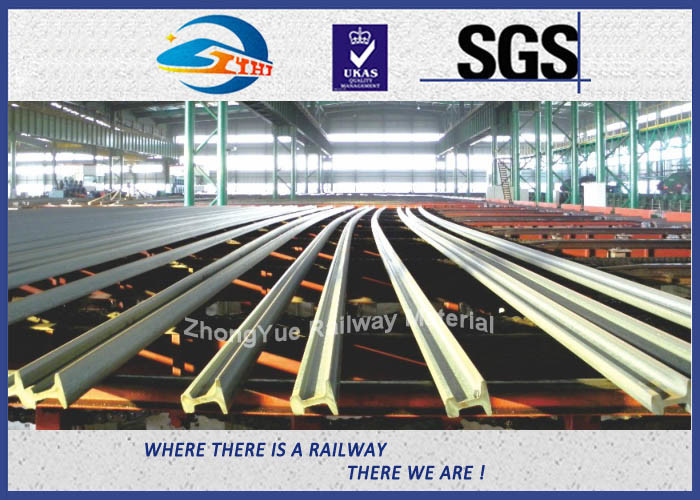

GB Standard P43KG GB43 Railway Steel Rail According GB2585-2007
Other Name: Railway Rail, Steel Rail, Railroad Track
Steel rail is used to guide the train wheels in the right position, by withstanding the large stress by the wheel when a train passes by, and transferring to the sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. The heavier the rails and the rest of the track work, the heavier and higher speed for the train these railway tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

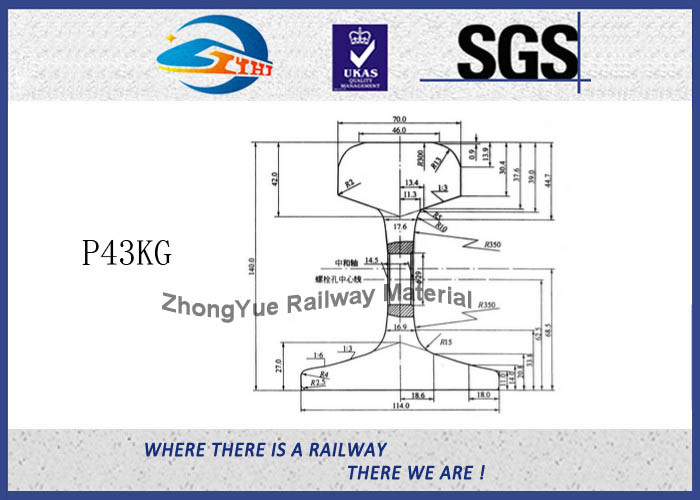

All modern rails are made by hot rolled steel of specific cross-section (profile) which approximates to I-beam but is asymmetric about a horizontal axis---flat bottomed, so that can rest directly on the tie sleepers and bullhead rails well. A rail is composed by three parts of rail Head, Web and Foot, and overall cross-sectional dimensions are always made of rail height(A), Foot width (B) and Head width(C). Together with the Web thickness(t), the 4 sizes are overall dimensions for rail type classifications.
Packaging: in bundle, 25 tons per container or by LCL
|1||Railway fastening system|
|2||Dog spike / Screw spike|
|3||Bolts & Nuts|
|10||Plastic / Rubber parts|
Established in 2013, ZhongYue Railway Material has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to the policy of quality first, ZhongYue Railway pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
