High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard

China High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard supplier
High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard supplier High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard supplier High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard supplier High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard supplier

Large Image :  High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard

Product Details:

Place of Origin: Suzhou,China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: ZHONGYUE Screw Spike

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Price: USD0.4 to USD1.5
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container
Delivery Time: 10 to 30 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Product Name:: 5.6 Grade 35# Screw Spike DIN Standard High Hardness Application:: Railway Construction
Material:: Q235, 35#, 45#, 40Cr Surface Treatment:: HDG, Oil, Oxide Black, Wax
Brand:: Zhongyue Grade:: 4.6, 4.8, 5.6, 8.8
Standard:: ISO898-1, UIC864-1, And NF F500-50 Hardness:: 43-47
Tensile Strength:: 500Mpa Yield Strength:: ≥300Mpa
Elongation:: ≥20% Cold Bending:: 90 Degree Without Crack
Customization:: Acceptable Samples:: Available

5.6 Grade 35# Screw Spike DIN Standard High Hardness

Screw Spike

Railway screw spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and Suyu can help with product specification and selection.





Name 5.6 Grade 35# Screw Spike DIN Standard High Hardness
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical

properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

  Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50





Application of 5.6 Grade 35# Screw Spike DIN Standard High Hardness



High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard

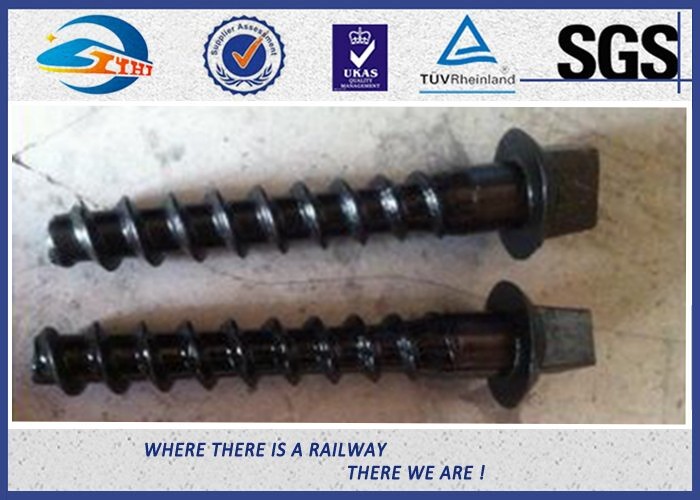

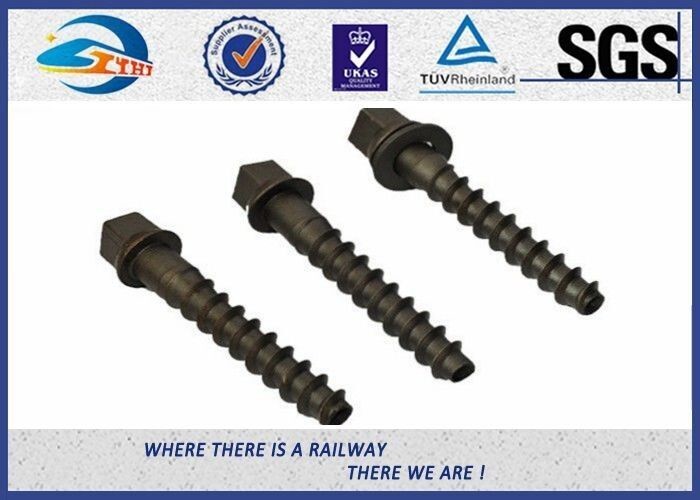

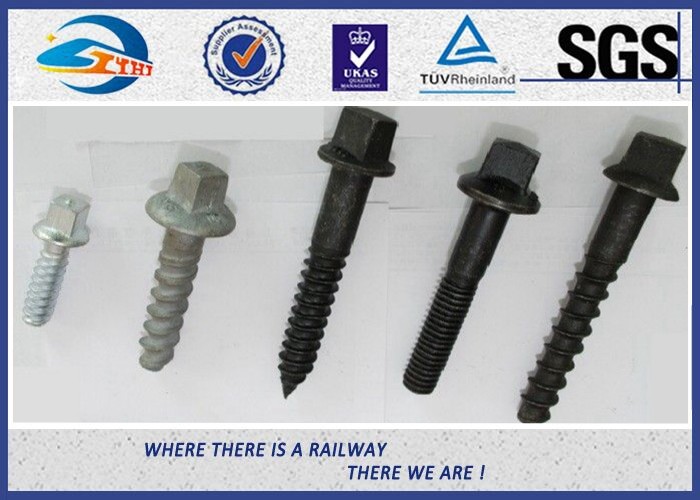

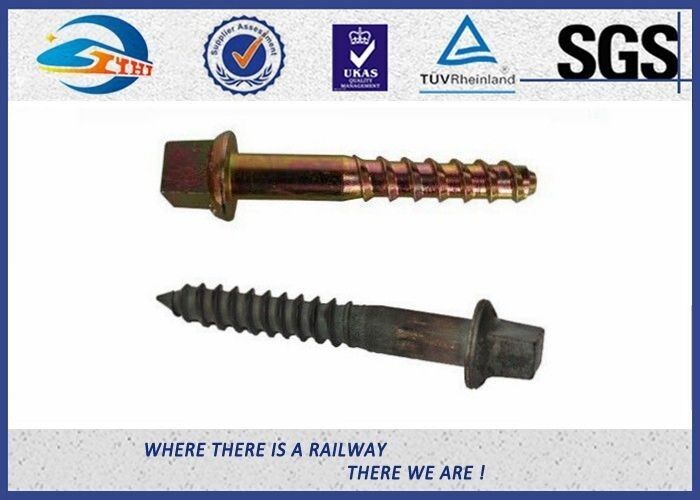

Photos Details of 5.6 Grade 35# Screw Spike DIN Standard High Hardness

High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN StandardHigh Hardness 5.6 Grade 35# Railway Screw Spikes , DIN StandardHigh Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard



Zhong yue's products ranges:



High Hardness 5.6 Grade 35# Railway Screw Spikes , DIN Standard



  • Rail Fastening
  • Rail Sleeper Screw
  • Rail Spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nul
  • Rail Fastening System
  • Crane rail



Production process of 8.8 Grade 45# Oxide Black Screw Spike Insert Plastic Dowel

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Thread rolling —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment



10.9 Grade 40Cr Steel Oxide Black Screw Spike Insert  Plastic Dowel Railway Fasteners





Best regards

Eric Li




Our main products:UIC54 Rail Joint Bar, rail Fishplates, rail joints With GB Standard


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



customize track spikes / threaded spike / screw spike for Rail fastening system





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, ZHONGYUE pay for it.
