E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC

China E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC supplier
E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC supplier E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC supplier E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC supplier E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC supplier

Large Image :  E Type Rail Shoulder Rail Fastening System , Hardness 44-48HRC

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Nabla E Type Rail Fastening System

Payment & Shipping Terms:

Minimum Order Quantity: 5000set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description

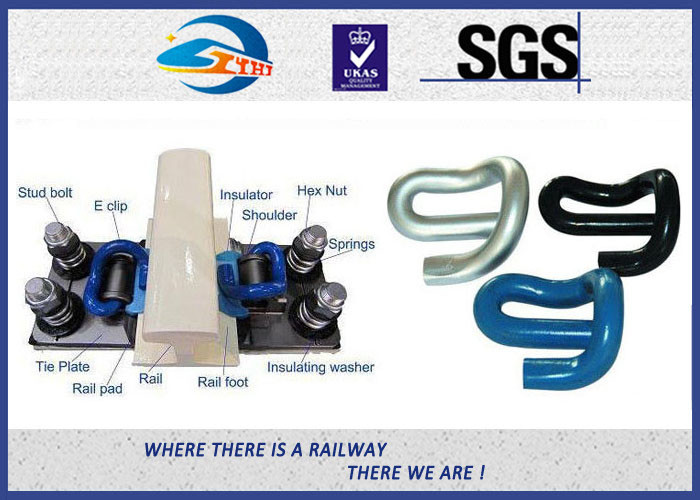

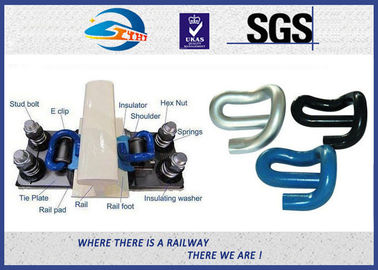

Product Name: E Type Rail Clip Rail Shoulder With Insulator Railway Fastening System Application: Railway

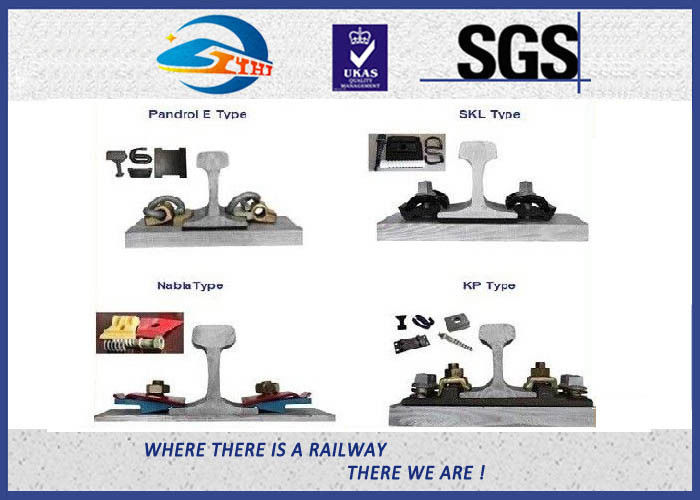

Type: E Type, Nabla Type, SKL Type, KPO Type, Etc. Sample: Available
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet 38Si7 Dimensions (L X W X H) (mm): Standard

E type rail clip rail shoulder with insulator railway fastening system



Technical Parameters



Part name Type Material Finish Remark
E clip

Dia. 16mm

Dia. 18mm

Dia. 20mm

60Si2MnA,

60Si2CrA,

55SiMn

Plain oiled,

color painting,

or the other

custom finish

Hardness: 44-48HRC
Toe Load: 500-700kgf for

Dia.16mm
750-900kgf for Dia.18mm
1100-1400kgf for Dia.20mm
Fatigue life:3 millions cycles

without breaking for Dia.18mm,

5 millions cycles without breaking

for Dia.20mm
Standard: DIN17221, BS970,

GB/T1222

Shoulder

UIC54,UIC60,

115RE,50kg rail,

60kg rail,BS80lbs,

BS100lbs

QT500-7

QT450-10

Plain oiled,

color painting

Different designs are available.
Rail pad

UIC54,UIC60,

BS80lbs,BS100lbs,

in ordered size

HDPE, EVA,

or rubber

Black or

other colors

Different designs are available.
Insulator

UIC54,UIC60,

50kg rail, 60kg rail,

BS80lbs,BS100lbs,

and size as ordered

Reinforced

Nylon 66 (PA66)

Black, blue,

yellow, green

or other colors

Different designs are available.





Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
