Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222

China Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222 supplier
Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222 supplier Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222 supplier Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222 supplier Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222 supplier

Large Image :  Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 5000 set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Fast Clip Application: Railway Fastening System
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
Warranty: Two Years Customize: Available

Zhongyue railway south america elastic rail Nabla clip rail fastening



Brand ZhongYue

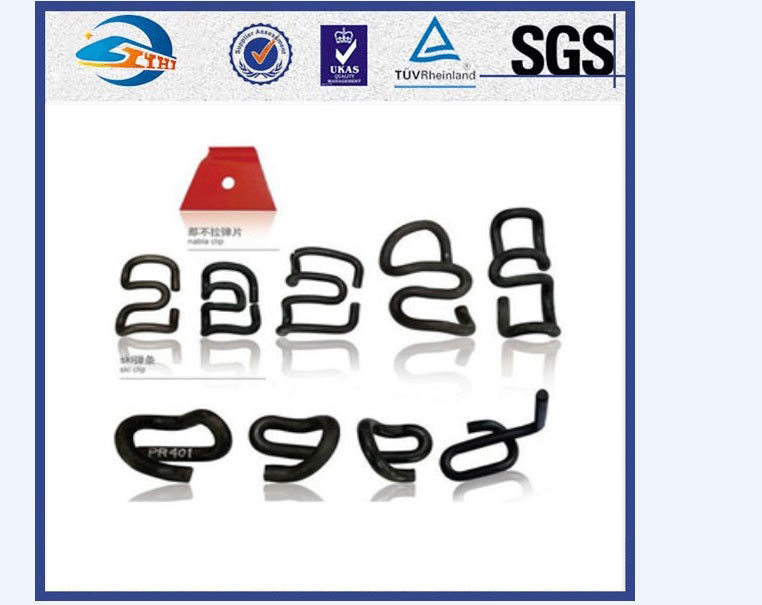

Name E clip
Type E clip (e1809, e2006,e2007,e2009,etc)
Skl clip (skl1,skl3,skl12,skl14)
Or the type by customers’ drawings
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222



Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222



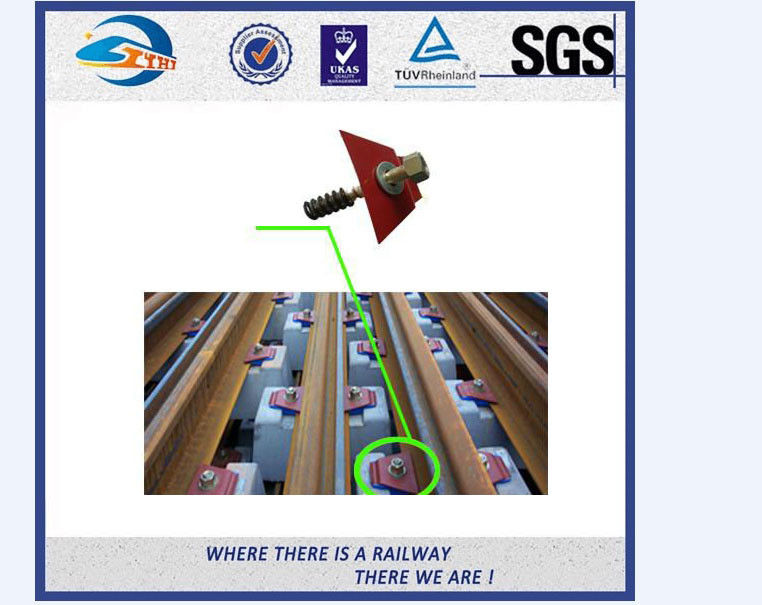

One set of fast clip fastening system includes:



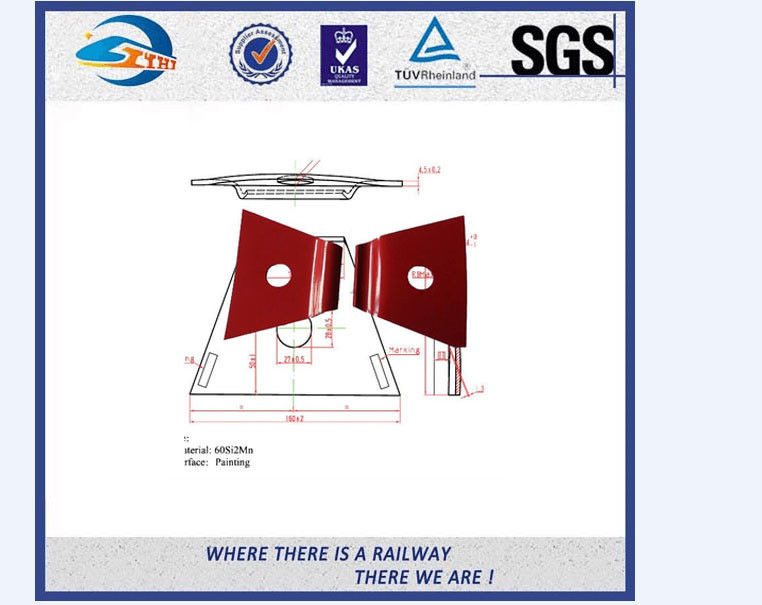

  1. Cast iron tie plate

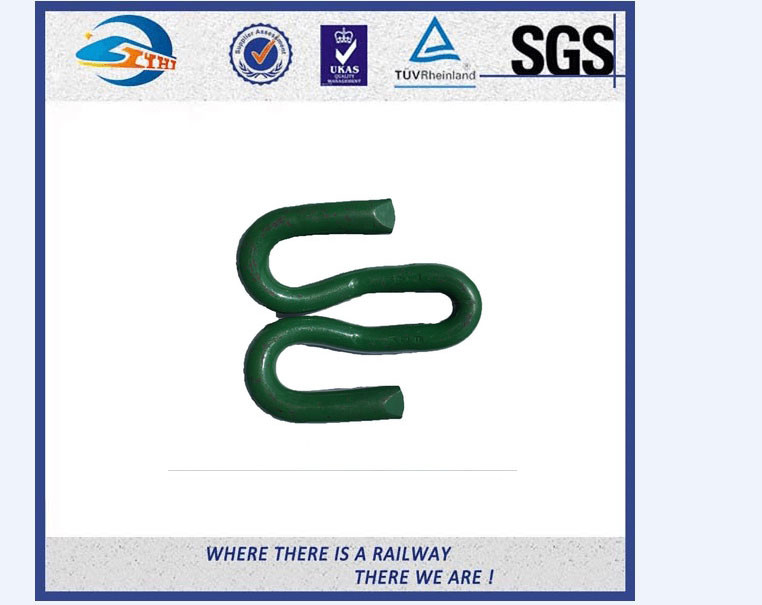

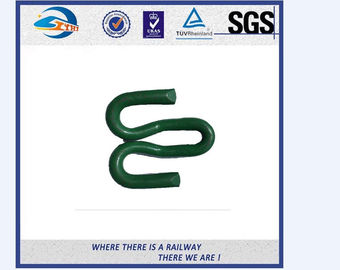

  2. Fast clip
  3. Rail anchor
  4. Sleeve



Features:

  1. Fast clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222





Surface Treatment

  1. plain (oiled)
  2. oxide Black
  3. color painting
  4. DHG
  5. galavazing



Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity

Similarity



  1. E clip system
  2. SKL1 clip system
  3. SKL2 clip system
  4. SKL3 clip system
  5. SKL12 clip system
  6. SKL14 clip system
  7. SKL21 clip system
  8. Nabla clip system
  9. KP clip system

Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222

Packing:



Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222



Oxide Black / Plain Elastic Rail Clips / Rail Nabla Clip GB/T1222
