Home ProductsRailway Bolt

DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt

China DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt supplier
DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt supplier DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt supplier DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt supplier DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt supplier

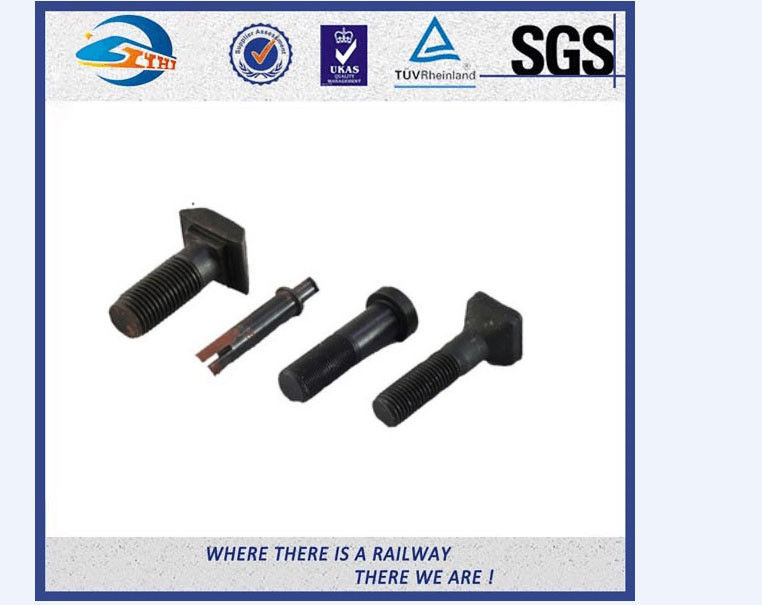

Large Image :  DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Railway Bolt

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: negotiation
Packaging Details: Plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Product Name: Railway DIN933 Hex Bolts Screw Bolts And Nuts Material: Q235. 35#. 45#. 40Cr
Main Surface Treatment: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Warranty: Two Years
Package: Woven Bag, Wood Pallet Certificate: ISO9001, SGS

ZhongYue railway DIN933 hex bolts screw bolts and nuts

Specifications:

Standard:DIN, JIS, ISO, ANSI, ASME, BS, AS

Grade:4.8/ 8.8/ 10.9/ 12.9

Dimensions:M8, M10, M12, M14, M16, M18, M20, M22, M24 and so on

Surface Treatment:Zinc-plated, Plain, Black Anodize, Dacroment




Item

head oval neck fish bolt


Type

Cup head oval neck fish bolt

Square head fish bolt

Bitish standard track bolt

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength:≥400Mpa

Tensile strength:≥500Mpa

Tensile strength:≥800Mpa

Tensile strength:≥1000Mpa

Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:≥640Mpa

Yield strength:≥900Mpa

Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Surface

Plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

AS, BS 64, DIN, AREMA/SAE,NF,JIS






Packing
65lbs bag+wooden pallet/wooden box;
The normal size of wooden pallet is 1100X840X580mm;,
The size of the wooden box could be made according to customer's specification or according to the products size.





DIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track BoltDIN933 Q235 35# Head Oval Neck Fish Bolt / Bitish Standard Track Bolt
