Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material

Basic Information
Place of Origin: CHINA
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Minimum Order Quantity: 1,000 pcs
Price: Negotiable
Packaging Details: In bundle with fumigation-free wooden pallet
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50,000 pcs/month
Product Name: 6 Holes Rail Fish Plate Standard: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Grade: 4.6.4.8.5.6.8.8.10.9. Material: Q235 .35#. 45#
High Light:

railroad fish plate

,

steel fish plates

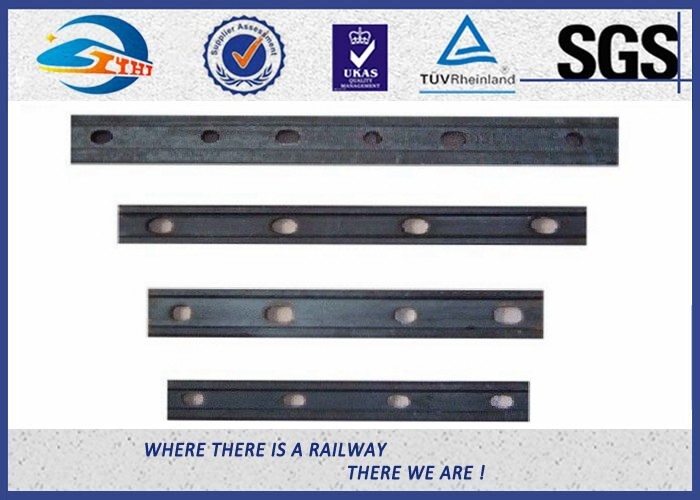

 6 Holes Railway Fish Plate Railroad Fish Plate

Specifications:

We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.



Brand Zhongyue
Name railway fish plate
Type Length /Diameter Weight(Kg) Material
115RE 4 hole- 24″ 17.04

45#



Chemical composition(%):

C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035







50#



Chemical composition(%):

C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035

115RE 6 hole -36″ 25.56
132-136RE 4hole-24″ 17.75
132-136RE 6hole-36″ 26.63
UIC60 4 hole - 630/26 18.07
UIC60 4 hole-600/28 17.47
UIC60 4 hole - 630/25 18.1
UIC54 4hole 14.34
UIC54 6hole- 800 19.94
BS80A 4hole 6.5
BS90A 685.8 / 26 13.23
BS90A 792.9/26 .2 15.34
90/91LB 4 hole 18.08
90/91LB 6hole 19.9
50Kg 4hole 14.3
50Kg 6hole 19.5
BS75R 4hole 6.56
BS60A 4hole 5.61
S49 4 hole 9.71

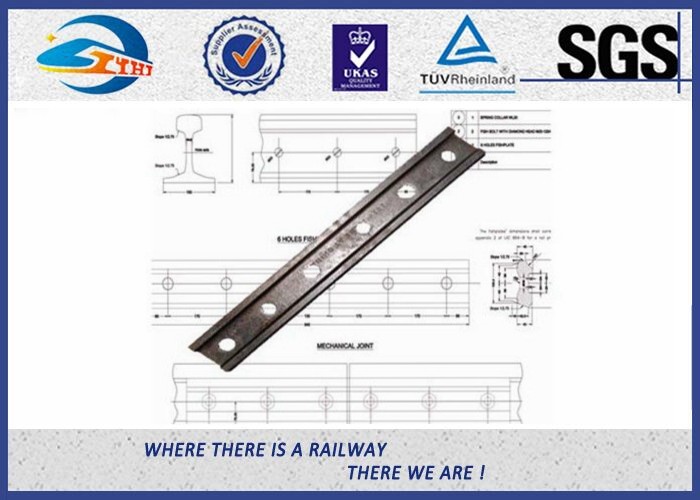

Normal Fish Plate
We offer 6 holes fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A,

80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.

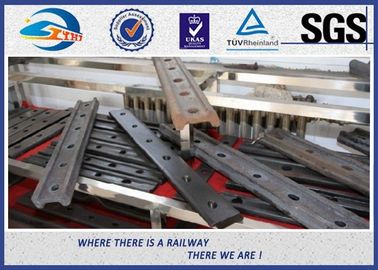

Production Process


Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material 0

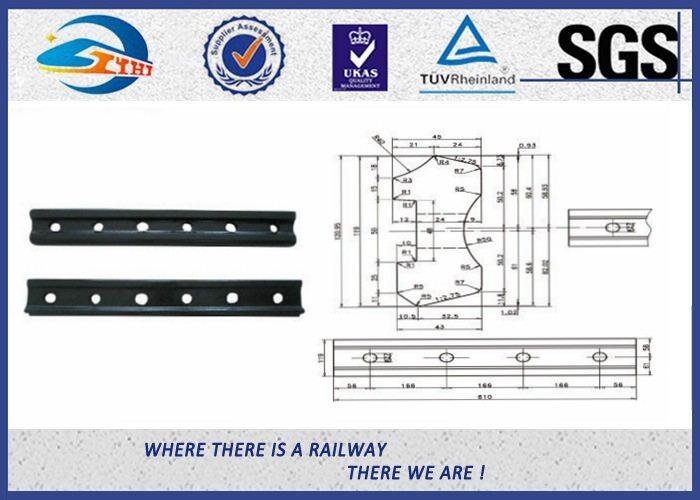

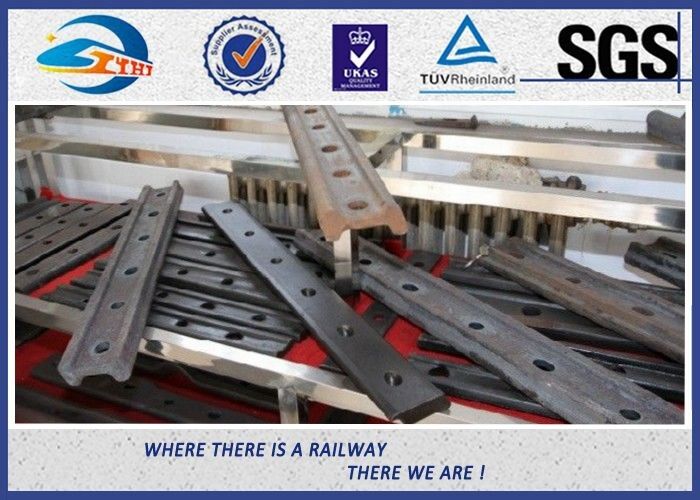

Package


Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material 1


Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material 2
IF YOU NEED MORE PRODUCT INFORMATION PLEASE CONTACT ME.
Contact: Janet Jiang zy15@zyrail.com

Our main products:
Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.

Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material 3

About us



Founded in 2003, Suyu is the largest railway fastener manufacturer in China. We are committed to providing our global customers with high quality and economically priced railway fastener products, including our rail sleeper screw, rail spike, railway bolt, and elastic rail clip.
With certificates SGS, TUV, ISO9001-2008, we supply our products, to famous companies such as VAE, and Hilti. In Suyu Group, quality control management is always a priority at Suyu. We welcome costomers all around the world to visit our factory and our office.


Welcome to Visit Our Factory!

Antique Railway Rail Track steel fish plates 6 Holes with Q235 35# 45# Material 4
