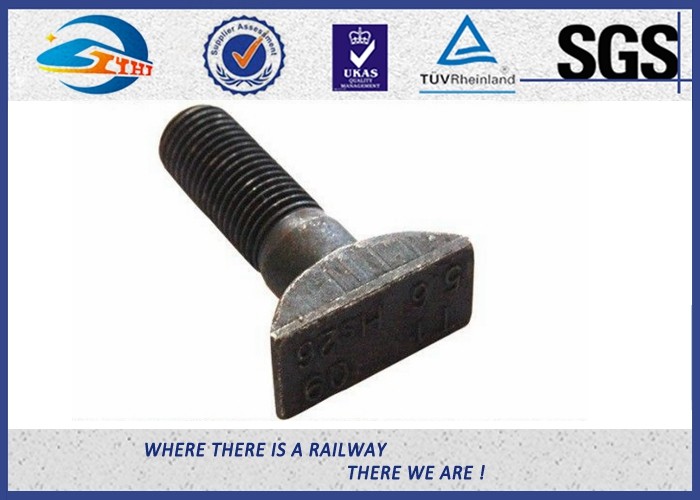

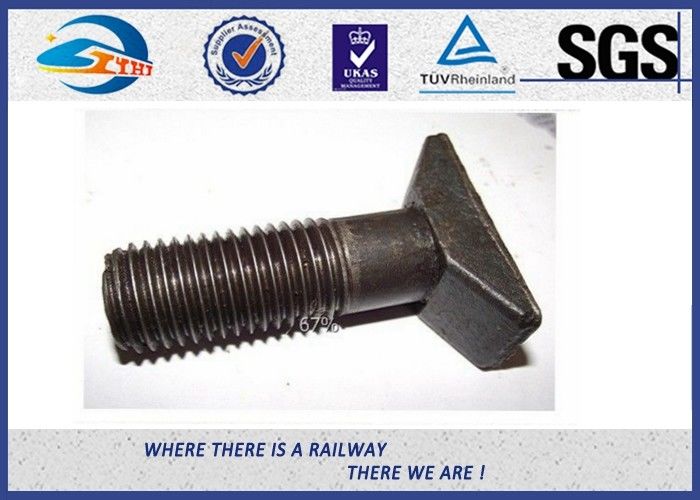

Durable T Head Short Rod Railway Bolt Plain Surface Custom Made

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: T Bolt
Minimum Order Quantity: 3.0 MT
Price: Negitiable. it depends on your drawing of bolt
Packaging Details: double-layer bags and wooden pallets / 200LB Keg
Delivery Time: 15-30 work days after getting payment
Supply Ability: 500,000 pcs per month
Product Name: T Head Bolt Application: Railroad
Grade: 8.8 /10.9 Material: 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Guarantee: 100% Meet Contract
High Light:

railroad bolts

,

steel bolts and nuts



Durable T Head Short Rod Railway Bolt Plain Surface Custom Made



Product Name: Track Bolt

HS Code: 73181 59001

Brief introduction



Fish bolt are used for splice bar connections and ZHONGYUE can supply a range of fish bolts manufactured to international standards according to BS, ASTM and DIN, among others.
Listed below are examples of some of our fish bolt manufactured over the last several years as per BS 20M, 30M, 35M, 35R, 50 O, 60A, 75R, 80R, 80A, 95RBH, and 113A; DIN S10, S14, S18, S20, S24, S30, S49, UIC54, UIC60; and AREMA 40ASCE, 60ASCE, 75ASCE, 90ARA, 115RE.


Material



Material
Grade 8.8 10.9
Material 45# 40Cr
Mechanical properties

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

Yield strength:

≥640Mpa

Yield strength:

≥900Mpa

Elongation:

≥12%

Elongation:

≥9%

Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing



Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.



 Durable T Head Short Rod Railway Bolt Plain Surface Custom Made 0









Classification


Button Head Oval Neck Track Bolt

Diameter

Length

Weight (Kg)

1/2"

1-3/4"

0.097

1/2"

2"

0.10

1/2"

2-1/4

0.112

5/8

2-1/2

0.183

3/4

3

0.328

3/4

3-1/2

0.339

3/4

4

0.356

7/8

4-1/2

0.559

7/8

5

0.593

1

5

0.8

1

5-1/2

0.839

1

6

0.879

1-1/16

6

0.995

1-1/8

6-1/2

1.186




Diamond Neck Track Bolts

Diameter

Length

Weight (Kg)

7/8

4-1/2

0.563

7/8

5-1/2

0.651

1

5-1/4

0.889

1

5-3/4

0.895




Nominal Size

Thread Length

Bolt Length

3/4

2

3-7/8

7/8

2-1/8

4-3/8

15/16

2-5/16

4-5/16

15/16

2-1/8

5

1

2-5/16

4-15/16

1

2-11/16

6-1/16





Process

  1. Raw material
  2. Wiredrawing
  3. Cutting
  4. Head forming
  5. Heat treatment
  6. Surface treatment
  7. Final inspection
  8. Packing
  9. Shippment.

Durable T Head Short Rod Railway Bolt Plain Surface Custom Made 1





Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Durable T Head Short Rod Railway Bolt Plain Surface Custom Made 2



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Package

1. 25kg per double layer woven bag+ free fumigation wooden pallet

    36bags/pallet,

    24pallets/container

2. Keg

3. in according with your request



Durable T Head Short Rod Railway Bolt Plain Surface Custom Made 3







Similarity



Type 1. fish bolt
2. T bolt
3. anchor bolt
4. tunnel bolt
5. arch bolt
6. knurling bolt
7. slipknot bolt
8. hex socket head bolt
9. hex head cao bolt
10 square bolt
11. stud bolt
12. special bolt
13. any other bolts


Durable T Head Short Rod Railway Bolt Plain Surface Custom Made 4


Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and Grade
  3. Surface Treatment
  4. Order quantity (MOQ is 3MT)


Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper
