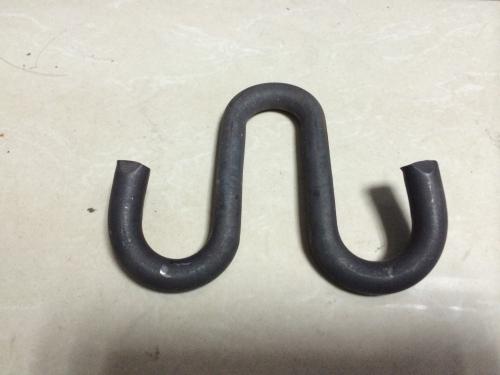

Railway Fastening System W2 SKL2 Railroad Elastic Clip

China Railway Fastening System W2 SKL2 Railroad Elastic Clip supplier
Railway Fastening System W2 SKL2 Railroad Elastic Clip supplier Railway Fastening System W2 SKL2 Railroad Elastic Clip supplier Railway Fastening System W2 SKL2 Railroad Elastic Clip supplier

Large Image :  Railway Fastening System W2 SKL2 Railroad Elastic Clip

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: W2 / SKL2

Payment & Shipping Terms:

Minimum Order Quantity: 5000 set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 15-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: W2 Rail Fastening System Application: Railway
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
New/Used: New

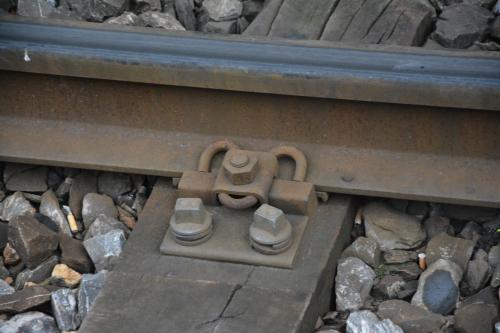

W2 SKL2 Railway Fastening System Standard Fastener on Railroad





One set of W2 fastening system includes:



A) Tension clamp W2

B) Screw spike & washer & nut

C) Tie plate

D) Plastic dowel

E) Rail Pad

Railway Fastening System W2 SKL2 Railroad Elastic Clip



Features:

  1. W2 tension clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps

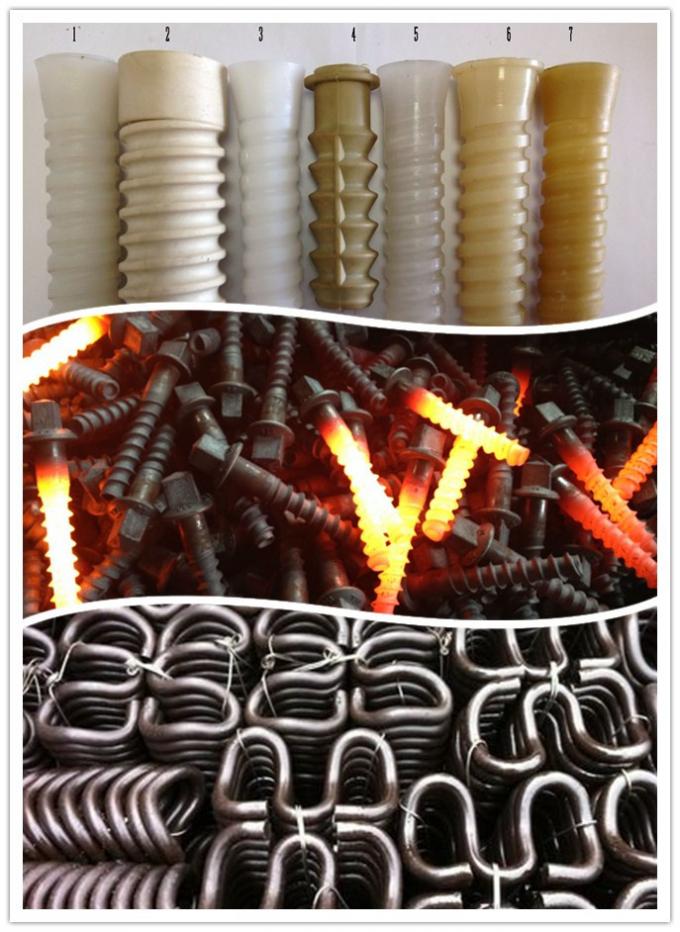

Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Railway Fastening System W2 SKL2 Railroad Elastic Clip

Railway Fastening System W2 SKL2 Railroad Elastic Clip





Surface Treatment

  1. plain (oiled)
  2. oxide Black (most choice)
  3. color paint
  4. DHG
  5. galavazing



Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Railway Fastening System W2 SKL2 Railroad Elastic Clip



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Railway Fastening System W2 SKL2 Railroad Elastic Clip





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity
