Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: W2 / SKL2
Minimum Order Quantity: 5000 set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 15-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 500,000set per month
Product Name: W2 Rail Fastening System Application: Railway
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
New/Used: New
High Light:

railway track fasteners

,

railroad fasteners



W2 SKL2 Railway Fastening System Standard Fastener on Railroad



As an important part of E-clip fastening system, elastic rail clips are used with concrete railway sleepers to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged elastic rail clips are considered to be better than other metal forming processes due to most uniform microstructure. There are several types of railway fasteners. Elastic rail clips are in a category called elastic fasteners. They can be engaged in line with the rail in E-clip fastening, or called fast clip fastening system. Both serve very well in attaching the rail track to the base plate and most importantly controlling those longitudinal forces. In this article we will give you a detailed introduction to Elastic rail clips.



One set of W2 fastening system includes:



A) Tension clamp W2

B) Screw spike & washer & nut

C) Tie plate

D) Plastic dowel

E) Rail Pad

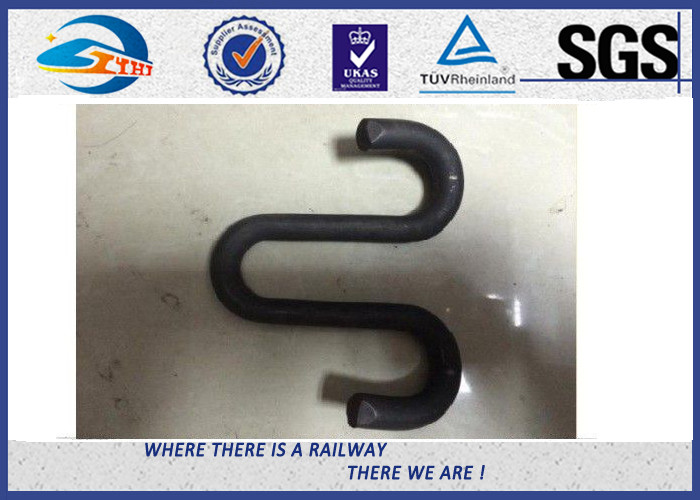

Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track 0



Features:

  1. W2 tension clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

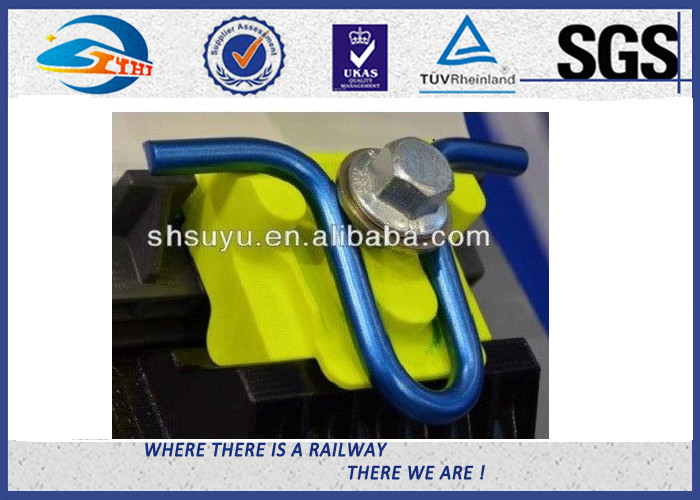

Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track 1

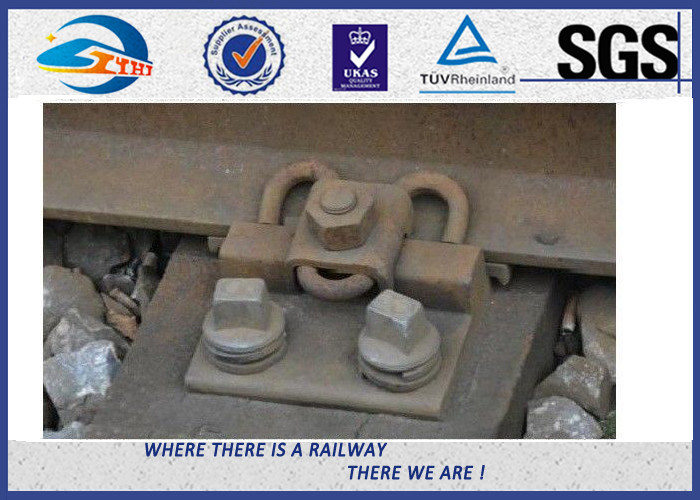

Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track 2





Surface Treatment

  1. plain (oiled)
  2. oxide Black (most choice)
  3. color paint
  4. DHG
  5. galavazing



Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track 3



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Railway Fastening System W2 SKL2 Railroad Elastic Clip, rail elastic clips for railway track 4





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity



Our main products:


Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
