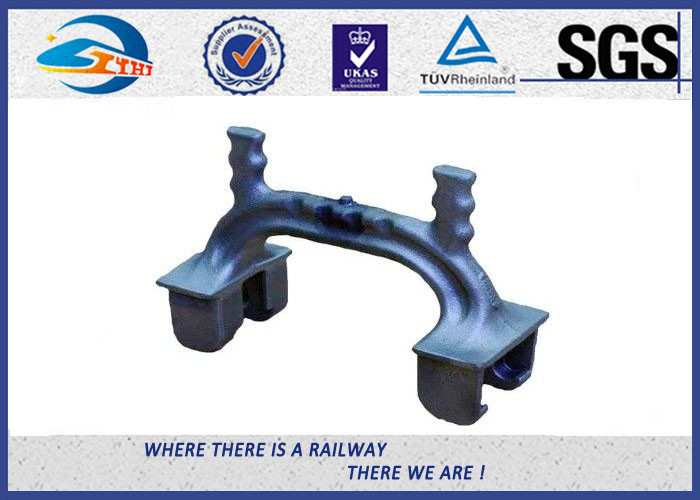

GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part

China GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part supplier
GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part supplier GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part supplier GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part supplier

Large Image :  GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: Russian
Model Number: rail shoulder

Payment & Shipping Terms:

Minimum Order Quantity: 5.0MT
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 work days after received payment
Payment Terms: T/T
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Russian Rail Shoulder Application: Railway
Type: For Rail UIC54, UIC60, 115RE,50kg Rail, 60kg Rail,BS80lbs, BS100lbs Material: QT450-10, QT400-15
Surface: Plain (oiled), Galvanizing Sample: Available



GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part





Casting shoulders are pressed in concrete sleeper and assembled with E clip in order to fasten the rail. The material we use is cast iron and the mechanical property and chemical composition of the rail cast iron shoulder are shown below:



Technical Specifications

Brand ZHONGYUE
Product Railway iron shoulder
Application UIC54 UIC60 115RE,ect
Material
Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88 GB 1348-88 GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa ≥310 Mpa ≥250 Mpa
Elongation(%) ≥7 ≥10 ≥15
Hardnrss 170~230HB 160~210HB 130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite
Surface plain (oiled)






Comparing Chart For Material:



  GB DIN NF
1 QT400-15 GGG-40 EN-GJS-400-15
2 QT400-18   EN-GJS-400-18
3 QT450-10   EN-GJS-450-10
4 QT500-7 GGG-50 EN-GJS-500-7

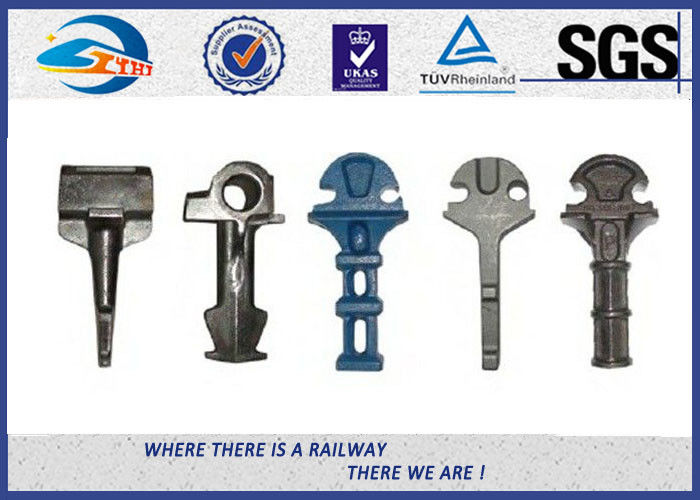

Samples Show:

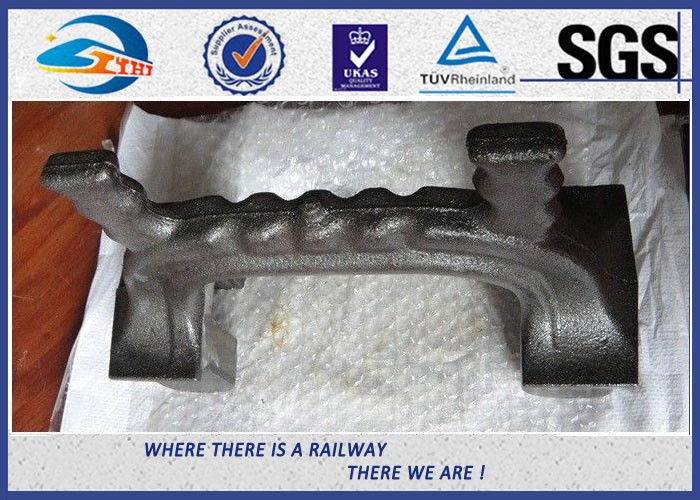

GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part



Workshop:



GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part



Similarity



1. The iron shoulder is cast in the concrete ties for fixation of elastic rail clips. Our rail cast iron shoulders include M.C.I. shoulder manufactured from pearlitic malleable iron and S.G.C.I. shoulder manufactured from spheroid graphite iron. We offer two types of iron shoulders. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.



2. This type of rail shoulder is produced by hot forging, used together with clip bolt and special rail clip to fix the rail. The material can be low carbon steel and mid carbon steel, according to our customers' requirement.



3. Weld-on shoulder is used for the typical position of rail. This rail cast iron shoulder is welded on flat steel plate instead of the standard tie plate and is produced according to AREA standard. Designed for use with E style elastic rail clips, the weld on shoulder fastening allows customers to fabricate rail retaining units on both steel sleepers and steel base plates.



GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part



Packing

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft

GOST Russian Type Railway Shoulder with Clamp as Railway Fastening System Part





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity
