Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail

China Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail supplier
Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail supplier Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail supplier

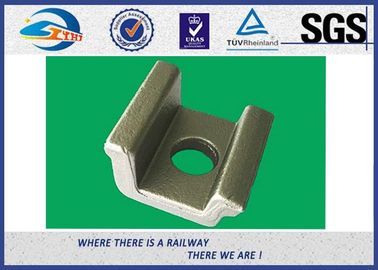

Large Image :  Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail

Product Details:

Place of Origin: Suzhou China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001
Model Number: KPO

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: USD1 to USD 2
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container
Delivery Time: 20- 30 days according to your order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Material: Carbon Steel Surface Treatment: Plain, HDG, Oxide Black, Paint
Customization: Acceptable Sample: Available

Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail





1. Material: Q235

2. Surface: Plain, Oiled, Oxide black, Wax, HDG

3. Sample: Available

4. Customization: Acceptable



We offer various rail clamps, which are known for their high quality and strong durability. They are made of high-grade steel and conform to the defined parameters of railways and prevailing market demands. These rail clamps are available in varied specifications and can be customized according to customers’ specific requirements. Their main features are as followsExcellent designing ;high quality ; low maintenance ; optimum performance ;reliable; highly efficient ; high tensile strength ; long functional life ; corrosion resistance.



Name

Plain Surface Carbon Steel KPO Type Rail Clip Used For DIN 536 And UIC 860 Standard Rail

Type

used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail



 Or the type by customers drawings

Material

60Si2MnA

45#

QT500-7

Chemical composition(%)

C:0.56-0.64,

 Mn:0.60-0.90,

Si:1.60-2.00,

 Cr:≤0.35,

P:0.03, S:0.03

C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:0.035, S:0.035

C:3.60-3.80,

Mn:≤0.6, Si:2.50-2.90,

P:0.08, S:0.025

Surface

plain (oiled),color painting

Standard refers

DIN, ISO, JIS, EN



Material Technical Specifications

  1. Forging: Q235;
  2. Cast steel:  ZG35;
  3. Cast iron: TQ500-7
Grade 4.6
Material Q235
Mechanical Tensile strength:  ≥ 400Mpa
Yield strength: ≥ 240Mpa
Elongation: ≥ 22%
Cold bending: 90 degree
without crack



Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88  GB 1348-88  GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa  ≥310 Mpa  ≥250 Mpa
Elongation(%) ≥7  ≥10 ≥15
Hardnrss 170~230HB  160~210HB  130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite




Drawing

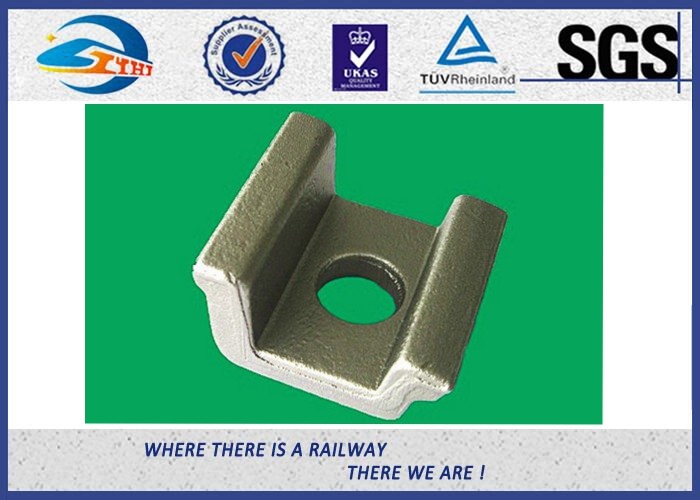

Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail

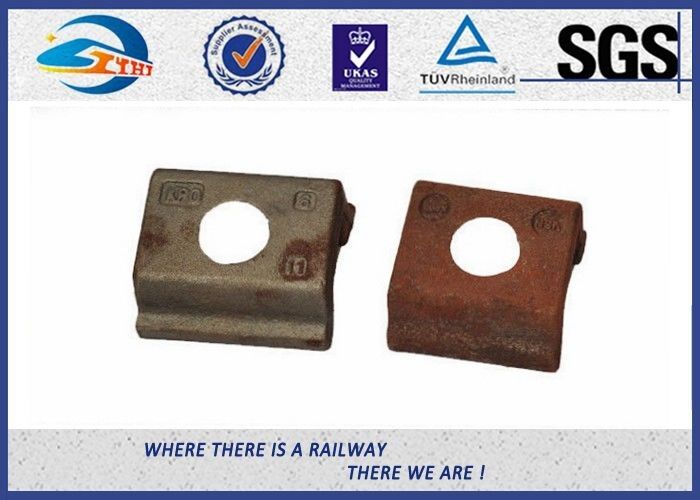

Other Rail Clip We Supply



Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail
