| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | ASCE |
| Minimum Order Quantity: | 20 tons |
| Price: | Negociable |
| Packaging Details: | In bundle |
| Delivery Time: | 7 days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 30,000pcs per month |
| Product Name: | Steel Rail | Application: | Railway |
|---|---|---|---|
| Grade: | 4.6, 5.6, 8.8, 10.9 | Material: | 700, 900A, 1100 |
| Surface: | Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet | Standard: | ASTM A1, AREMA |
| Highlight: | tram rails,steel rail track |
||
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard Steel Rail
Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS
Specifications
|
Standard: ASTMA1, AREMA |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
ASCE 25 |
38.1 |
69.85 |
69.85 |
7.54 |
12.4 |
700 |
6-12 |
|
ASCE 30 |
42.86 |
79.38 |
79.38 |
8.33 |
14.88 |
700 |
6-12 |
|
ASCE 40 |
47.62 |
88.9 |
88.9 |
9.92 |
19.84 |
700 |
6-12 |
|
ASCE 60 |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |
700 |
6-12 |
|
ASCE 75 |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
900A/1100 |
12-25 |
|
ASCE 85 |
65.09 |
131.76 |
131.76 |
14.29 |
42.17 |
900A/1100 |
12-25 |
|
90RA |
65.09 |
142.88 |
130.18 |
14.29 |
44.65 |
900A/1100 |
12-25 |
|
115RE |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
900A/1100 |
12-25 |
|
136RE |
74.61 |
185.74 |
152.4 |
17.46 |
67.41 |
900A/1100 |
12-25 |
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
900A/1100 |
12-25 |

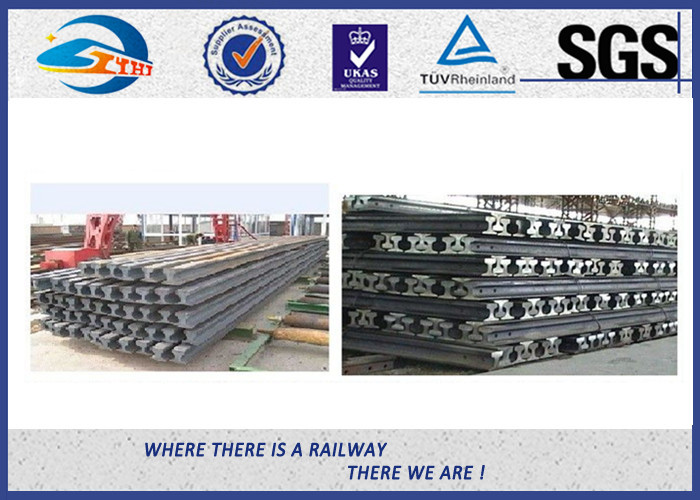

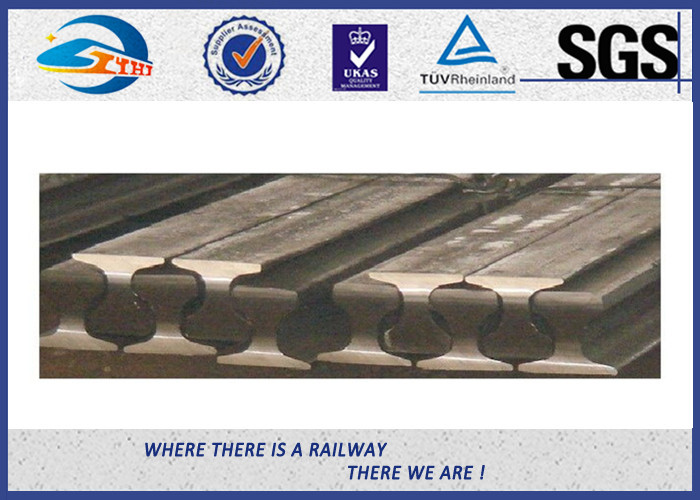

Product Show:
Application:

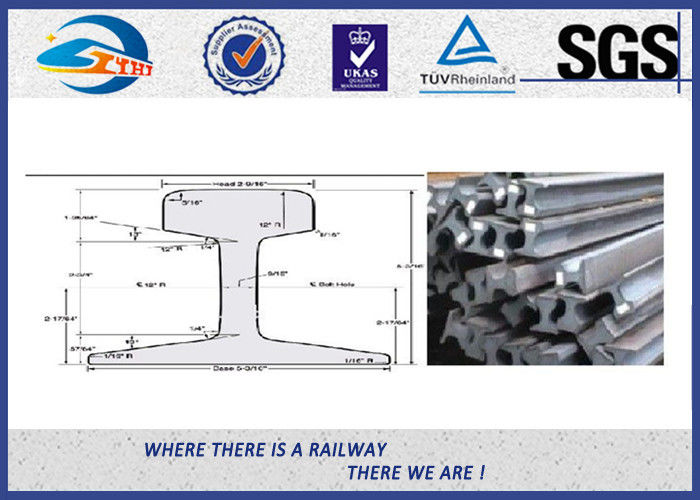

ASTM standard ASCE 85 Steel rail
| Rail Type | Rail Height | Flange Width | Head Width at Top | Head Width at Base | Head Height | Web Thickness | Flange Thickness at Edge | Flange Thickness at Center | Weight (per yard) |
| RH | FW | HT | HB | HH | WT | FE | FM | lbs | |
| ASCE 85 rail | 5.188 | 5.188 | 2.563 | 2.563 | 1.547 | 0.563 | 0.291 | 0.891 | 85 |
| 132 | 132 | 65 | 65 | 39 | 14 | 7 | 23 | 42.16 |
| U71Mn | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| 880min | 9 | 260 | 0.65-0.77 | 0.15-0.35 | 1.10-1.50 | 0.04 | 0.04 |
||||
