Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM

China Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM supplier
Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM supplier Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM supplier Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM supplier

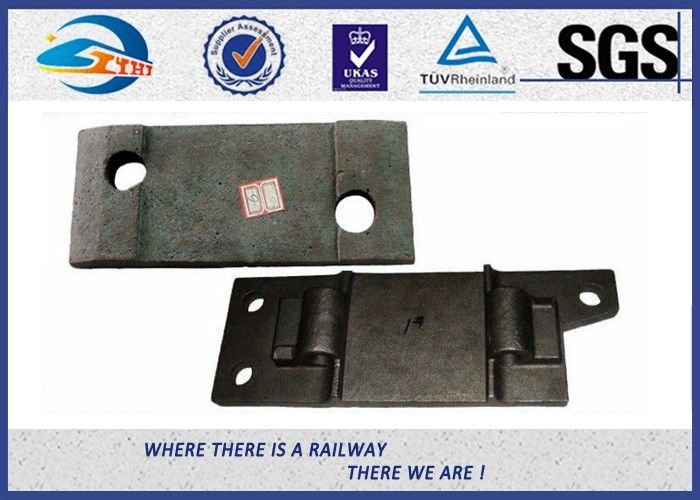

Large Image :  Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM

Product Details:

Place of Origin: Changshu City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: SUYU598

Payment & Shipping Terms:

Minimum Order Quantity: 2000 Pcs
Price: USD 0.6-1 / Pc
Packaging Details: Double woven bags with woden pallet, container or based on clients' requirements
Delivery Time: 15-30 Days after Receiving Purchasing Order
Payment Terms: L/C, T/T
Supply Ability: 250 Tons Per Week
Contact Now
Detailed Product Description
Product: Forged Tie Plate Material: QT500-7 Or Q235
Application: UIC60, S49, S54, 90A Etc. Surface: Plain Color
Hole Diameter: 10MM Can Be Customized Another Name: Base Plate

Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM



Cast / Forged Railway Baseplate

A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail

and the crossties. The tie plate increases bearing area and holds the rail to correct gauge

They are fastened to wooden ties by means of spikes or bolts through holes in the plate.



The part of the plate under the rail base is tapered, setting the cant of the rail, an inward

rotation from the vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of

the plate has one or two shoulders that fit against the edges of the base of the rail. The

double-shoulder type is currently used. Older single-shoulder types were adaptable for

various rail widths, with the single shoulder positioned on the outside (field side) of the

rails. Most plates are slightly wider on the field side, without which the plates tend to cut

more into the outsides of the tie, reducing cant angle.



Cast iron can be the welded or fabricated type, depending upon the customers requirements.



Technical Specification

Type

Dimension

Holes

Incline

Rail

Weight(Kg)

Rph 1/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,86

Rp 01/01/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,70

Rph 1/210

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,55

Rph 1/210

345/285/127x210x15/13

Ø 36,3 (2x)

1:40

S 49/S 54

10,55

Rph 1/210 FVZ

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,69

Sph 1(a)

345/350/127x410x15/13

Ø 26 (8x)

1:40

UIC 60

20,60

Rph 6/160

370/310/152x160x15/13

Ø 26 (4x)

1:40

UIC 60

8,44

Rph 6/210

370/310/152x210x15/13

Ø 26 (4x)

1:40

UIC 60

11,32

SZ 60

370/350/152x420x15/13

Ø 26 (8x)

1:40

UIC 60

22,73

Rph 11 Ü

664/554x160

Ø 26 (4x)

1:40

S 54

15,37

Rph 13 Ü

690/570x160

Ø 26 (4x)

1:40

UIC 60

15,27

Rpo 5

345/285/127x160x15/13

Ø 26 (4x)

1:20

S 49/S 54

8







Double / Single Shoulder Tie Plate

Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM

The use of single or double shoulder tie plates makes a more stable track and greatly lengthens

the life of wood ties and better load distribution to the ties. They hold the rail to gage, providing

more uniform wear to ties. Tie plate are designed with a long end or field end to be located outside

the rails. In the case of single shoulder tie plates, the shoulder is placed on the field end of the plate.

The gage end or short end of the plate is located inside of the rails.



When ordering, indentification of the rail section or width of the rail base should be specified. Top

quality relay tie plates (hand-sorted and palletized) are readily available and offer a substantial

savings when compared to the cost of new tie plates. Tie plates come in a variety of sizes and

punching patterns. These patterns may include both "line holes" and "hold-down holes". The plates

shown above have four line holes punched to line up with the edge of the rail base. Many tie plates

also feature hold-down (or anchor) holes that are between the line holes and the edges of the tie plate.



Standard Plate Sizes
No. Rail Base Width SS DS Weight Plate Length
1 4-7/16 to 5-1/8 SS 11.63 10
2 5-1/8 to 5-1/2 SS 12.93 11
3 5-3/8 DS 15.86 12
4 5-1/2 DS 13.45 11
5 DS 16.25 12
6 DS 19.6 13
7 DS 22.9 14
8 6 DS 14.94 12
9 DS 17.87 13
10 DS 21.47 14
11 DS 23.32 14-3/4
12 DS 27.67 16

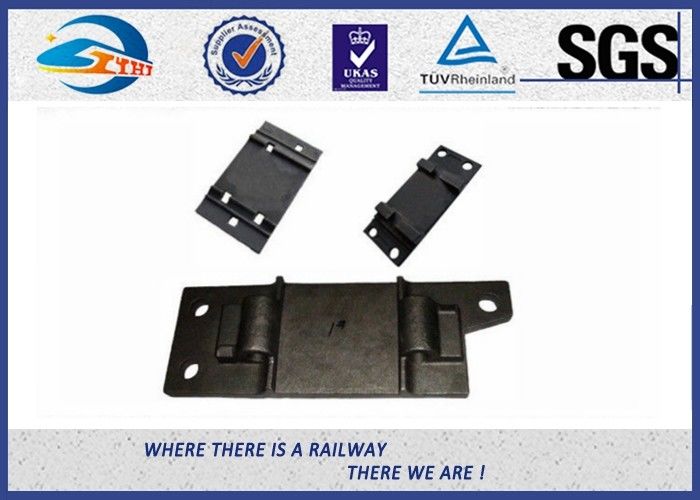

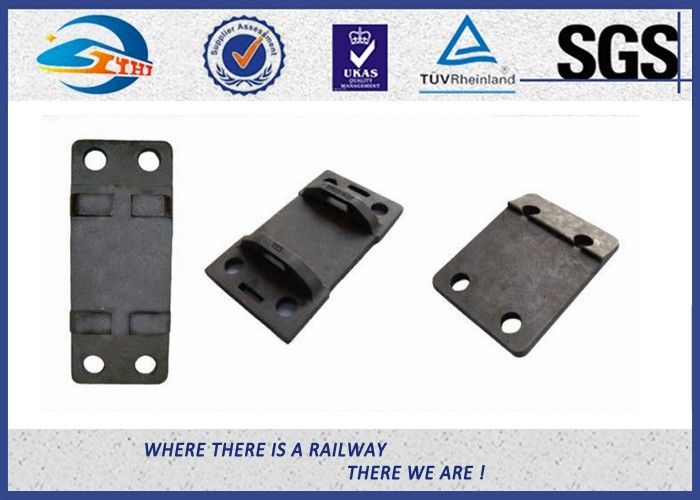

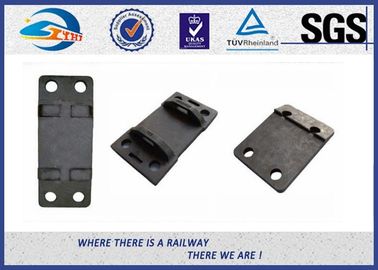

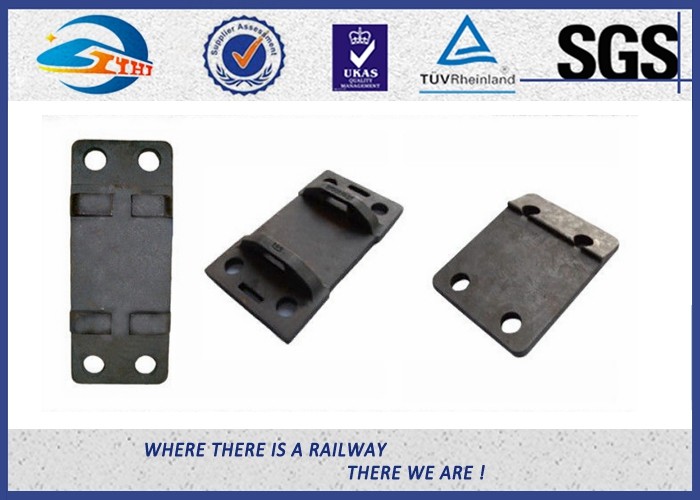

Photos

Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM

Double Shoulder Forged Cast Rail Base Plate Hole Diameter 10MM
