Fastening Railroad Sleepers Railway Shoulder Casting Iron

China Fastening Railroad Sleepers Railway Shoulder Casting Iron supplier
Fastening Railroad Sleepers Railway Shoulder Casting Iron supplier Fastening Railroad Sleepers Railway Shoulder Casting Iron supplier Fastening Railroad Sleepers Railway Shoulder Casting Iron supplier

Large Image :  Fastening Railroad Sleepers Railway Shoulder Casting Iron

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: rail shoulder

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Fastening Railroad Sleepers Railway Shoulder Casting Iron Application: Railway
Type: For Rail UIC54, UIC60, 115RE,50kg Rail, 60kg Rail,BS80lbs, BS100lbs Material: QT500-7 (GGG50), QT450-10(GGG45), QT400-15(GGG40)
Surface: Plain (oiled) Sample: Available

Fastening Railroad Sleepers Railway Shoulder Casting Iron









Casting shoulders are pressed in concrete sleeper and assembled with E clip in order to fasten the rail. The material we use is cast iron and the mechanical property and chemical composition of the rail cast iron shoulder are shown below:



Brand

ZhongYue

Name

Railway Shoulder Casting Iron For Fastening Railroad Sleepers

Type

For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs

 Or the type by customers’ drawings

Material

QT500-7 (GGG50)

QT450-10(GGG45)

QT400-15(GGG40)

Chemical composition(%)

C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025

C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03

C:3.5-3.60, Mn: ≤0.5, Si:3.00-3.20 ,P:≤0.07, S:≤0.02

Surface

plain (oiled)







Rail shoulder is produced by hot forging, used together with clip bolt and special rail clip to fix the rail. The material can be low carbon steel and mid carbon steel, according to our customers' requirement.

Weld-on shoulder is used for the typical position of rail. This rail cast iron shoulder is welded on flat steel plate instead of the standard tie plate and is produced according to AREA standard. Designed for use with E style elastic rail clips, the weld on shoulder fastening allows customers to fabricate rail retaining units on both steel sleepers and steel base plates.


The rail cast iron shoulders can also be welded on to longer length steel sleeper sections or bearers for use in the fabrication of switch and crossing layouts where vertical rail geometry is employed. The railway shoulder's ability to be welded in the specific position as dictated by the layout design makes it particularly useful and cost effective in this role.


The shoulder accessories are supplied for specific rail sections with design criteria which ensure that the correct elastic clip toe loading is achieved. Certain shoulders are supplied with milled weld area faces to assist in achieving the necessary weld integrity.

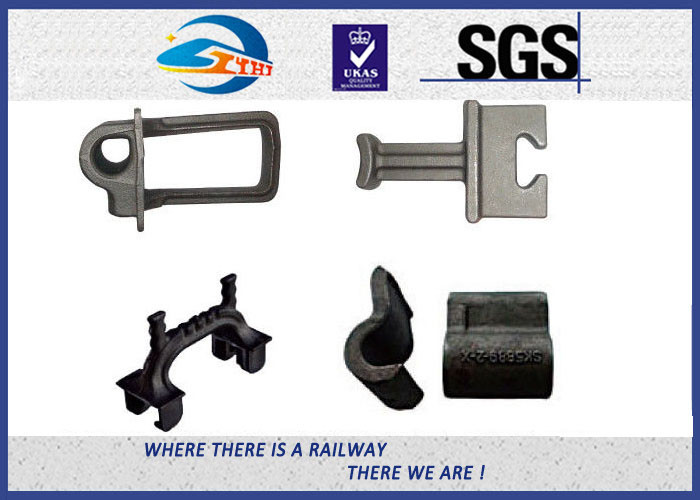

Samples Show:





Fastening Railroad Sleepers Railway Shoulder Casting Iron

Fastening Railroad Sleepers Railway Shoulder Casting Iron
