Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders

China Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders supplier
Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders supplier Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders supplier Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders supplier Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders supplier

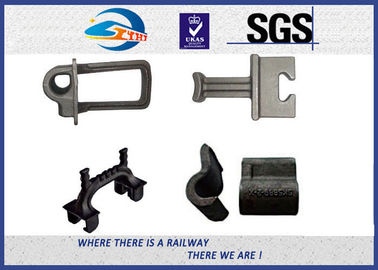

Large Image :  Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Railroad Fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders Application: Railway
Type: For Rail UIC54, UIC60, 115RE,50kg Rail, 60kg Rail,BS80lbs, BS100lbs Material: QT500-7 (GGG50), QT450-10(GGG45), QT400-15(GGG40)
Surface: Can Be Customized Sample: Available

Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders









Specifications:

The iron shoulder is cast in the concrete ties for fixation of elastic rail clips. Our rail cast iron shoulders include M.C.I. shoulder manufactured from pearlitic malleable iron and S.G.C.I. shoulder manufactured from spheroid graphite iron. We offer two types of iron shoulders. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.





Casting shoulders are pressed in concrete sleeper and assembled with E clip in order to fasten the rail. The material we use is cast iron and the mechanical property and chemical composition of the rail cast iron shoulder are shown below:

Material

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

QT400-15(GGG40)

400

250

15

QT450-10(GGG45)

450

310

10

QT500-7 (GGG50)

500

320

7





C

Si

Mn

P

S

QT400-15

3.6-.36

3.0-3.2

0.5

0.07

0.02

Qt450-10

3.4-3.9

3.7-3.0

0.5

0.07

0.03

QT500-7

3.4-3.8

2.5-2.9

0.6

0.08

0.025







Weld-on shoulder is used for the typical position of rail. This rail cast iron shoulder is welded on flat steel plate instead of the standard tie plate and is produced according to AREA standard. Designed for use with E style elastic rail clips, the weld on shoulder fastening allows customers to fabricate rail retaining units on both steel sleepers and steel base plates.

The rail cast iron shoulders can also be welded on to longer length steel sleeper sections or bearers for use in the fabrication of switch and crossing layouts where vertical rail geometry is employed. The railway shoulder's ability to be welded in the specific position as dictated by the layout design makes it particularly useful and cost effective in this role.



Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

Railroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On ShouldersRailroad fastener Carbon Steel Rail Cast Iron Shoulders Weld On Shoulders
