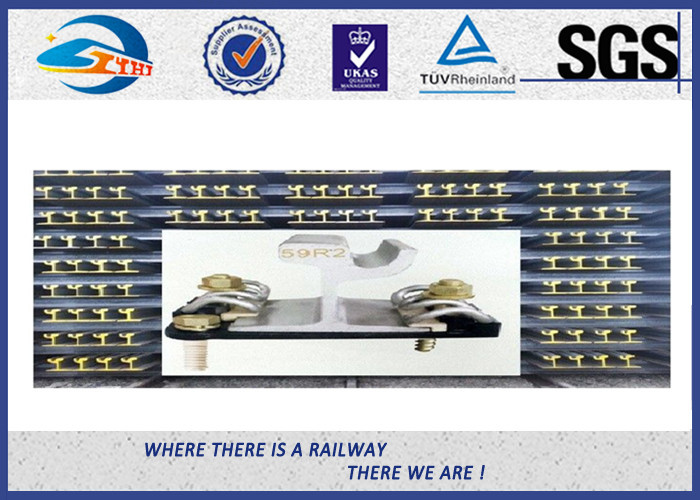

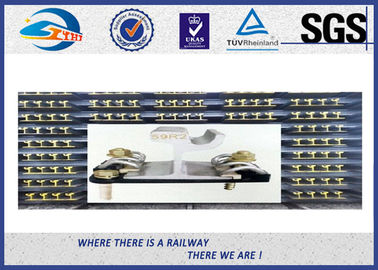

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

China Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail supplier
Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail supplier Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail supplier

Large Image :  Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In bundle
Delivery Time: 7 days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Product Name: Steel Rail Application: Tram Rail
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: BS EN14811:2006
Height: 180mm Bottom: 180mm
Web: 12mm Size: 59R2 60R2

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail





 Grooved Rail

Standard BS EN 14811: 2006: 59R1 59R2 60R1 60R2



Specifications



Size

Height (mm)

Bottom (mm)

Head A (mm)

Head B(mm)

Channel A (mm)

Channel B (mm)

Web (mm)

Weight (kg/m)

59R1

180

180

113

56

42

15

12

58.97

59R2

180

180

113

55.83

42.52

14.65

12

58.14

60R1

180

180

113

56

36

21

12

60.59

60R2

180

180

113

55.83

36.34

20.83

12

59.75





Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail





Drawing:



Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

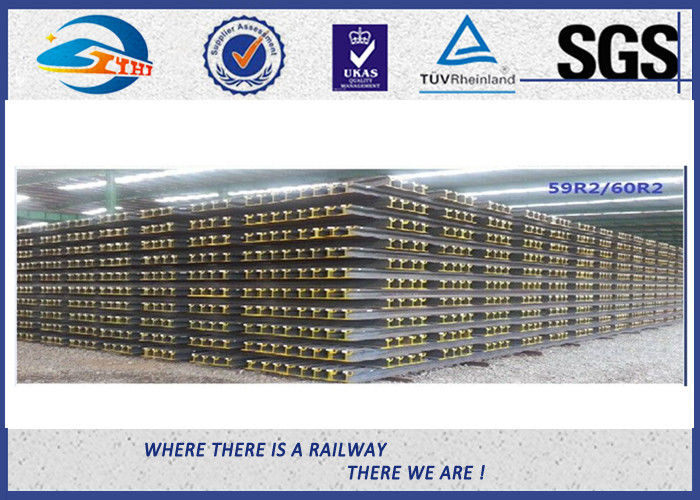

Product Show:



Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail



Application:



Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail



Other Main Rail:



Din 536 Standard Steel Rail A75, Railroad Steel Rail, Crane Rail A75



1. Chinese Standard Light Rail

Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Standard YB222-63: 8KG, 18KG, 24KG

Specifications

Standard: GB11264-89

Size

Dimension(mm)

Weight
(kg/m)

Material

Length(m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

GB6KG

25.4

50.8

50.8

4.76

5.98

Q235B

6-12

GB9KG

32.1

63.5

63.5

5.9

8.94

Q235B

6-12

GB12KG

38.1

69.85

69.85

7.54

12.2

Q235B/55Q

6-12

GB15KG

42.86

79.37

79.37

8.33

15.2

Q235B/55Q

6-12

GB22KG

50.3

93.66

93.66

10.72

23.3

Q235B/55Q

6-12

GB30KG

60.33

107.95

107.95

12.3

30.1

Q235B/55Q

6-12

Standard: YB222-63

8KG

25

65

54

7

8.42

Q235B

6-12

18KG

40

90

80

10

18.06

Q235B/55Q

6-12

24KG

51

107

92

10.9

24.46

Q235B/55Q

6-12

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

2. Chinese Standard Heavy Rail

Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG

Specifications

Standard: GB2585-2007

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

P38KG

68

134

114

13

38.733

U71Mn

12.5-25

P43KG

70

140

114

14.5

44.653

U71Mn

12.5-25

P50KG

70

152

132

15.5

51.514

U71Mn

12.5-25

P60KG

73

170

150

16.5

61.64

U71Mn

12.5-25

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

3. Chinese Standard Crane Rail

Standard YB/T5055-93: QU70, QU80, QU100, QU120

Specifications

Standard: YB/T5055-93

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

QU 70

70

120

120

28

52.8

U71Mn

12

QU 80

80

130

130

32

63.69

U71Mn

12

QU 100

100

150

150

38

88.96

U71Mn

12

QU 120

120

170

170

44

118.1

U71Mn

12

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

4. American Standard Steel Rail

Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS

Specifications

Standard: ASTMA1, AREMA

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

ASCE 25

38.1

69.85

69.85

7.54

12.4

700

6-12

ASCE 30

42.86

79.38

79.38

8.33

14.88

700

6-12

ASCE 40

47.62

88.9

88.9

9.92

19.84

700

6-12

ASCE 60

60.32

107.95

107.95

12.3

29.76

700

6-12

ASCE 75

62.71

122.24

122.24

13.49

37.2

900A/1100

12-25

ASCE 85

65.09

131.76

131.76

14.29

42.17

900A/1100

12-25

90RA

65.09

142.88

130.18

14.29

44.65

900A/1100

12-25

115RE

69.06

168.28

139.7

15.88

56.9

900A/1100

12-25

136RE

74.61

185.74

152.4

17.46

67.41

900A/1100

12-25

175LBs

109.86

152.4

152.4

38.1

86.8

900A/1100

12-25

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

5. BS Standard Steel Rail

Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A

Specifications

Standard: BS11: 1985

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

50 O

52.39

100.01

100.01

10.32

24.833

700

6-18

60 A

57.15

114.3

109.54

11.11

30.618

900A

6-18

75 A

61.91

128.59

114.3

12.7

37.455

900A

8-25

75 R

61.91

128.59

122.24

13.1

37.041

900A

8-25

80 A

63.5

133.35

117.47

13.1

39.761

900A

8-25

80 R

63.5

133.35

127

13.49

39.674

900A

8-25

90 A

66.67

142.88

127

13.89

45.099

900A

8-25

100 A

69.85

152.4

133.35

15.08

50.182

900A

8-25

113 A

69.85

158.75

139.7

20

56.398

900A

8-25

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

6. UIC860 Standard Steel Rail

Standard UIC860: UIC50, UIC54, UIC60

Specifications

Standard: UIC860

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

UIC50

70

152

125

15

50.46

900A/1100

12-25

UIC54

70

159

140

16

54.43

900A/1100

12-25

UIC60

74.3

172

150

16.5

60.21

900A/1100

12-25

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

7. JIS Standard Steel Rail

Standard: JIS

Specifications

Standard: JIS E1103-91/JISE 1101-93

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

JIS 15KG

42.86

79.37

79.37

8.33

15.2

JIS E standard

9-10

JIS 22KG

50.8

93.66

93.66

10.72

22.3

9-10

JIS 30KG

60.33

107.95

107.95

12.3

30.1

9-10

JIS 37A

62.71

122.24

122.24

13.49

37.2

10-25

JIS 50N

65

153

127

15

50.4

10-25

CR 73

100

135

140

32

73.3

10-12

CR 100

120

150

155

39

100.2

10-12

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

8. EN Standard Steel Rail

Standard EN 13674-1-2003: 49E1, 49E2, 50E1, 50E2, 50E4, 50E5, 50E6, 54E1, 54E2, 54E3, 55E1, 60E1

Specifications

Standard: EN 13674-1-2003

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

49 E1

67

149

125

14

49.39

R260/R350HT

12-25

49 E2

67

148

125

14

49.1

R260/R350HT

12-25

50 E1

65

153

134

15.5

50.37

R260/R350HT

12-25

50 E2

72

151

140

15

49.97

R260/R350HT

12-25

50 E4

70

152

125

15

50.46

R260/R350HT

12-25

50 E5

67

148

135

14

49.9

R260/R350HT

12-25

50 E6

65

153

140

15.5

50.9

R260/R350HT

12-25

54 E1

70

159

140

16

54.77

R260/R350HT

12-25

54 E2

67.01

161

125

16

53.82

R260/R350HT

12-25

54 E3

67

154

125

16

54.57

R260/R350HT

12-25

55 E1

62

155

134

19

56.03

R260/R350HT

12-25

60 E1

72

172

150

16.5

60.21

R260/R350HT

12-25

Streetcar Grooved Steel Rail Track 59R2 And 60R2 Tram Rail

9. IN Standard Steel Rail

Standard EN 13674-1-2003: A55, A65, A75, A100, A120

Specifications

Standard: DIN536

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

A55

55

65

150

31

31.8

900A

10-12

A65

65

75

175

38

43.1

900A

10-12

A75

75

85

200

45

56.2

900A

10-12

A100

100

95

200

60

74.3

900A

10-12

A120

120

105

220

72

100

900A

10-12
