| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | QU70, QU80, QU100, QU120 |
| Minimum Order Quantity: | 20 tons |
| Price: | Negociable |
| Packaging Details: | In bundle |
| Delivery Time: | 7 days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 30,000pcs per month |
| Product Name: | Steel Rail | Application: | Railway |
|---|---|---|---|
| Grade: | 4.6, 5.6, 8.8, 10.9 | Material: | U71Mn |
| Surface: | Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet | Standard: | YB/T5055-93 |
| Length: | 12m | The Stock: | In Stock |
| High Light: | tram rails,steel rail track |
||

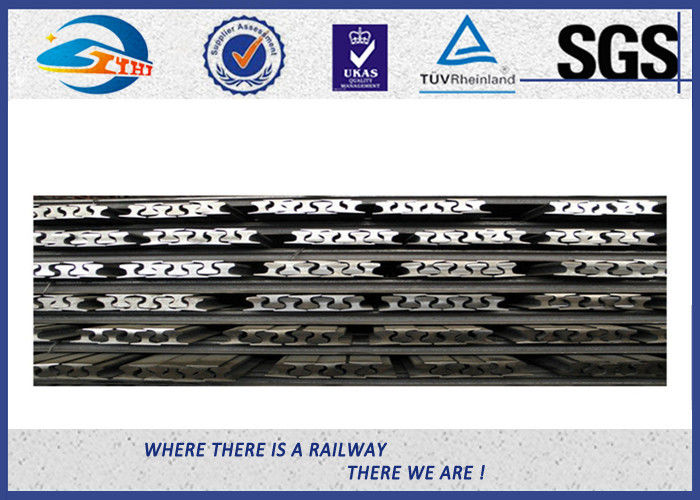

12m Railway Steel Railroad Steel Rail QU70 QU80 YB / T5055-93
Chinese Standard Crane Rail
Standard YB/T5055-93: QU70, QU80, QU100, QU120
Specifications

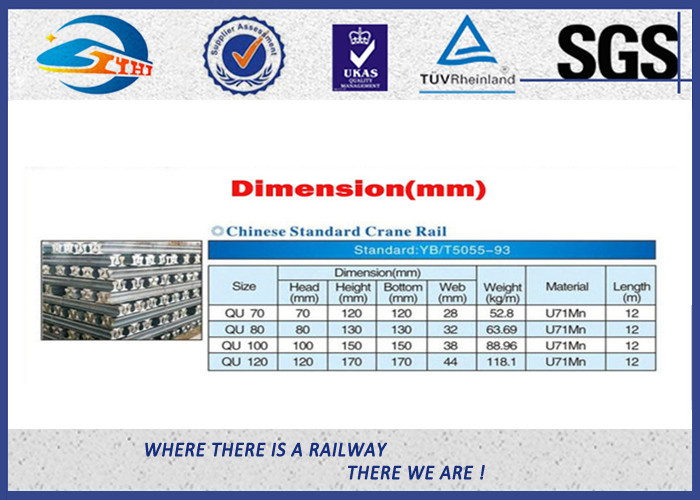

Standard: YB/T5055-93 | |||||||
Size | Dimension(mm) | Weight | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
QU 70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
QU 80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
QU 100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
QU 120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |
Part of the rail:
1 Light Rail
Specification: 12kg/m,15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m
Unit Weight: 12.2kg/m, 15.2kg/m, 18.06kg/m, 22.3kg/m, 24.46kg/m, 30.1kg/m
Length: 6-12m
Material: Q235, 50Q, 55Q
Standard: YB222-63, GB11264-89
2. GB Heavy Rail
Specification: 38kg/m, 43kg/m, 50kg/m
Unit Weight: 38.733kg/m, 44.653kg/m, 51.514kg/m
Length: 12.5m
Material: 50Mn, U71Mn
Standard: GB2585-81
3. Crane Rail
Specification: QU70, QU80, QU100, QU120
Unit Weight: 52.80kg/m, 63.69kg/m, 88.96kg/m, 118.8 kg/m
Length: 12m
Material: U71Mn
Standard: GB3426-82
Specification:
size | specification(mm) | weight(kg/m) | section | |||
a | b | c | d | |||
8 | 65 | 54 | 25 | 7 | 8.42 | Light steel rail |
12 | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
15 | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
18 | 90 | 80 | 40 | 9 | 18.06 | |
22 | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
24 | 107 | 92 | 51 | 10.9 | 24.46 | |
30 | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 | |
38 | 134 | 114 | 68 | 13 | 38.73 | Heavy steel rail |
43 | 140 | 114 | 70 | 14.5 | 44.65 | |
50 | 152 | 132 | 70 | 15.5 | 51.51 | |
60 | 176 | 150 | 73 | 16.5 | 60.64 | |
QU70 | 120 | 120 | 70 | 28 | 52.8 | Crane steel rail |
QU80 | 130 | 130 | 80 | 32 | 63.69 | |
QU100 | 150 | 150 | 100 | 38 | 88.96 | |
QU120 | 170 | 170 | 120 | 44 | 118.1 | |
1. Rail fastening system
Type :1) E type Rail fastening 2)KPO Rail Fastening 3) Nabla Rail Fastening 4) SKL 14 Rail Fastening 5) SKL13/12 Rail fastening
2. Screw spike/Sleeper screw, dog spike/Track spike
3. Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt
4. Tie plate /Base plate /Rail plate/Rail fixing base
5 . Fish plate /Joint bar
6. Elastic clip/ Clamp plate/Rail clamp/Anchor plate
7 . Rail pad, EVA,HDPE or Rubber pad/ Plastic dowel /Guide plate
8. Brake block including composite brake block and cast iron brake shoe.
9. Rail anchor/ crane clip/ rail clip and rail shoulder
10. Steel Rail including light rail and heavy rail( Crane rail, Gooved rail).
