UIC Standard Black Zinc Railway Sleeper Screws For Fastening Rails

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Ss Series
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 25-35 days after placing the order
Payment Terms: T/T, 30% in advance
Supply Ability: 1000 Tons / Month
Color: Black Material: Q235
Grade (Hardness After Quenching): 4.6 Standard: UIC864-1
Application: For Fastening Rails Surface Treatment: Black Oxide
High Light:

stainless steel coach screws

,

black oxide screws

UIC Standard Black Railway Sleeper Screws For Fastening Rails



Ss series railroad screw spike:



ZHONGYUE Railway has been manufacturing screw spikes since its being built in 2003. With rich experience in manufacturing and exporting, our products have been exported all around the world. We have 5 senior engineers to design any screw spikes you need. In the factory, there are 20 technicians and 200 experienced workers who make the production more efficient. So, we can save the production cost maximumly, thus making the price very competitive. The inspetion center controls the quality strictly to assure the screw spikes meet customers' requirements.



Technical specification for reference:

Tensile

Strength

Yield

Strength

Elongation

Reduction

of area

Hardness Bend test Workmanship

120,000

psi min.

92,000

psi min.

14% min. 35% min. HRc 22 min.-HRc 32 max.

Full size carbon

steel screw spikes

shall stand being

 bent cold 45°

around a pin 3

times the spike's

diameter without

cracking on the

outside of the

bent portion

Screw spikes

shall be

free from burrs,

seams,

laps, loose scale,

irregular

surfaces, and

any defects

affecting their

serviceability





Dimension and weight:

Type

Dimension (mm)

Weight (Kg)

Ss5-150

M24×150

0.545

Ss8-140

M24×140

0.528

Ss8-150

M24×150

0.548

Ss8-160

M24×160

0.568

Ss23-160

M24×160

0.645

Ss25-165

M24×165

0.625

Ss35-161

M24×160

0.657





Other kinds:



With more than 10 years' history, SUYU has manufactured many kinds of railroad screw spikes. They are mainly: (1) Ss series according to UIC864-1. (2) 3V sleeper screw as per NF F50006. (3) TR thread screw spike. (4) Screw spike for Metro. (5) Screw spike for South Amerca. (6) Screw spike wih big disk for Africa. (7) High tensile screw spike. (8) Coach screw. (9) Dive spike. (10) Screw spike ASTMA66-87. (11) DHS35 screw spike. (12) T type thread screw NF F500-15. (13) Hex head screw spike. (14) Special screw spike.



Photos:

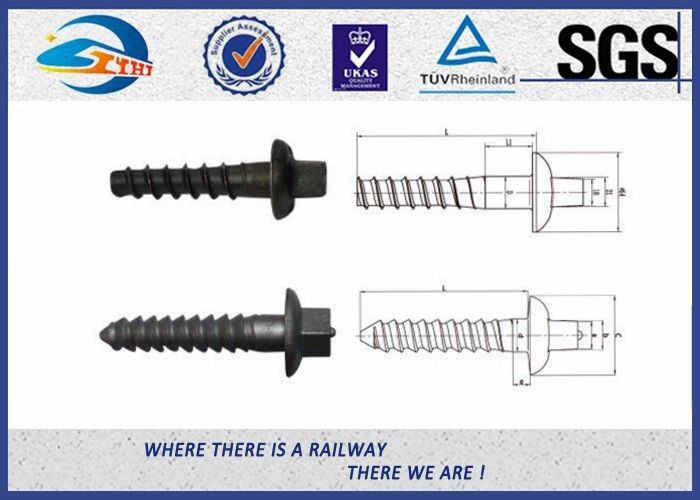

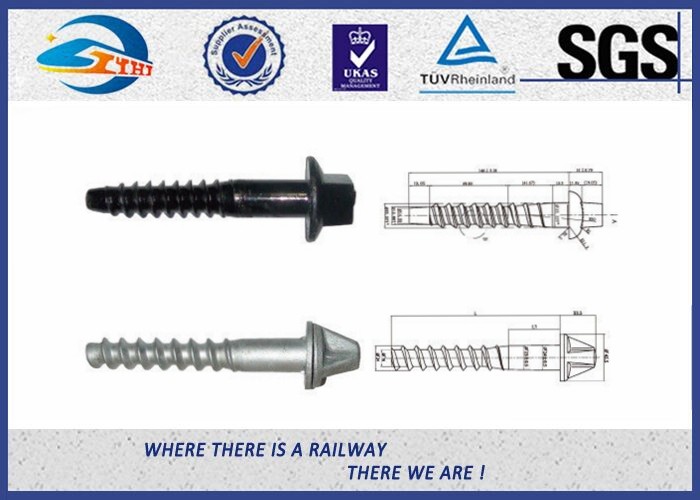

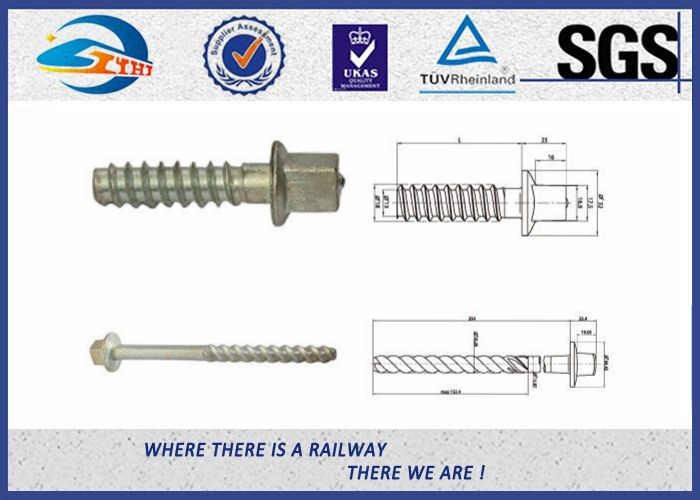

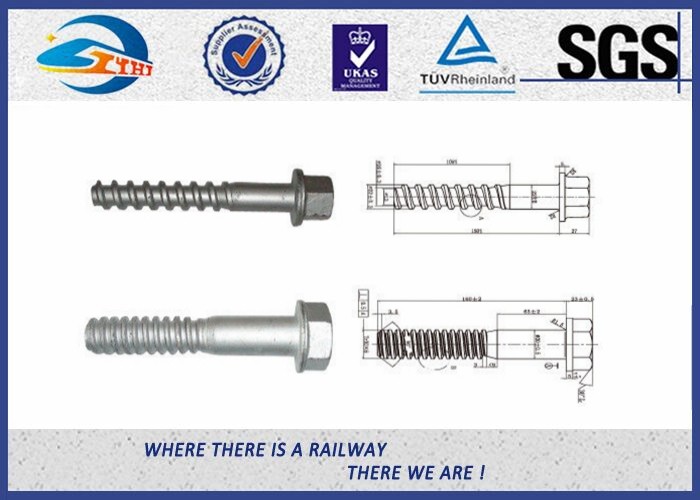

UIC Standard Black Zinc Railway Sleeper Screws For Fastening Rails 0UIC Standard Black Zinc Railway Sleeper Screws For Fastening Rails 1UIC Standard Black Zinc Railway Sleeper Screws For Fastening Rails 2



Our main products:


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
