High Tensile UIC864 Railway Fish Plate Standard Fishplate For Rail UIC54 Joint Bar

Basic Information
Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: UIC 54
Minimum Order Quantity: 2000 pcs
Price: Negotiable
Packaging Details: steel pallet
Delivery Time: 30 days according to order quantity
Payment Terms: T/T
Supply Ability: 10,000pcs per week
Material: 50# Application: Rail Joints
Surface: Plain, Oiled, Oxide Black, Color Painting Customization: Acceptable
Types: 4 Holes, 6 Holes
High Light:

railroad fish plate

,

steel fish plates



Standard Fishplate For Rail UIC54 Joint Bar



Name: Fishplate, Fish Plate, Splice bar or Joint bar



Material: 35#, 45#, 50# or required by client.



Description: Fishplateis a pair of metal bar that is used for the jointion of UIC 54 rail to rail that both end with holes,two fishplate is clamped at two side of rail, the holes are fixed by fishbolts The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast. The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.



We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.



Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.



Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical

composition(%):

 C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035







50#



Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole  - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



Packing: Steel Pallet.



Our Company

    Established in 2013, ZY has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.



    Sticking to our quality first rules, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.

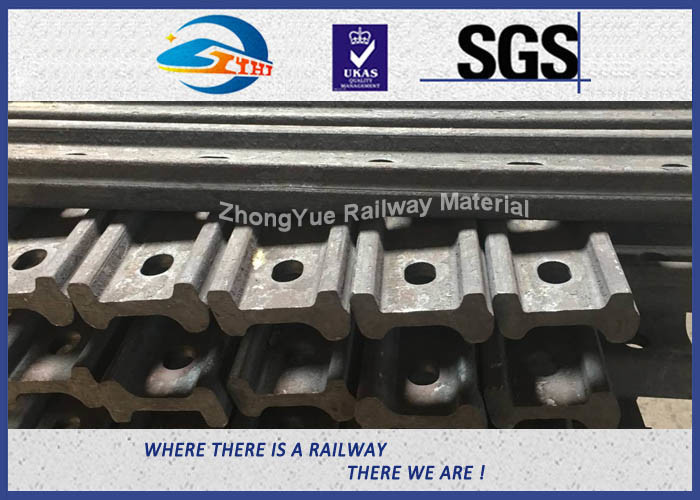

High Tensile UIC864 Railway Fish Plate Standard Fishplate For Rail UIC54 Joint Bar 0

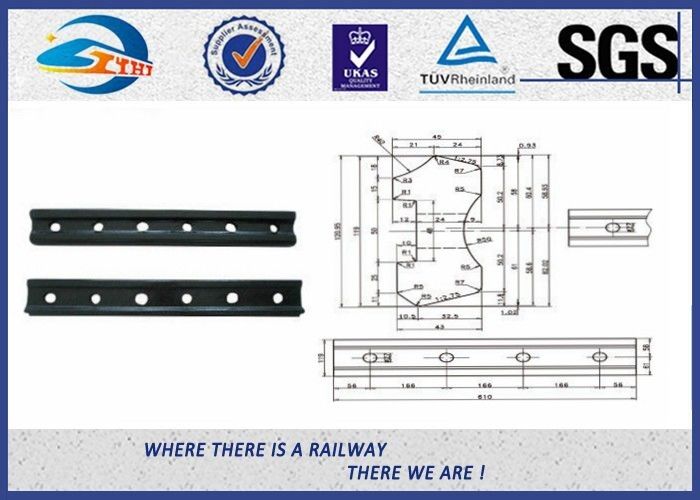

High Tensile UIC864 Railway Fish Plate Standard Fishplate For Rail UIC54 Joint Bar 1

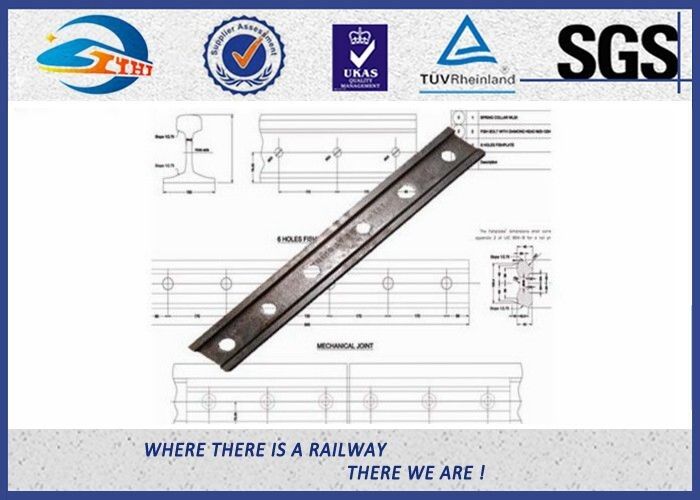

High Tensile UIC864 Railway Fish Plate Standard Fishplate For Rail UIC54 Joint Bar 2
