Ordinary rail joints fish plates joint bars on a railway track

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Customized
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: In Bundle with pallets
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500000pcs each month
Product Name: Ordinary Rail Joints Fish Plates Joint Bars On A Railway Track Application:: Railway Track Joint
Type:: 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. Structure:: Ordinary Rail Joint
Standard:: BS, ASTM And DIN, Among Others. Numbers Of Holes: 4 Holes Or 6 Holes
Material: Q235,45#, 50# Package:: In Bundle With Pallets

Ordinary rail joints fish plates joint bars on a railway track


ZHONGYUE's railway fish plates, also called rail joints or joint bars, offer a different function to other rail components. Rail joints are flat metal plates usually used to connect adjacent two rails with a number of rail bolts or railroad spikes.


Traditionally, railway fish plates are drilled with some holes on the ends of the sections to be connected. There are some holes in the end of railway track, which are used lined up with the holes in the railway fish plate and jointed using a rail bolt. In general, railway fish plates are made of steel, but plastics and composites are alternative raw materials for rail joints.


Ordinary rail joint

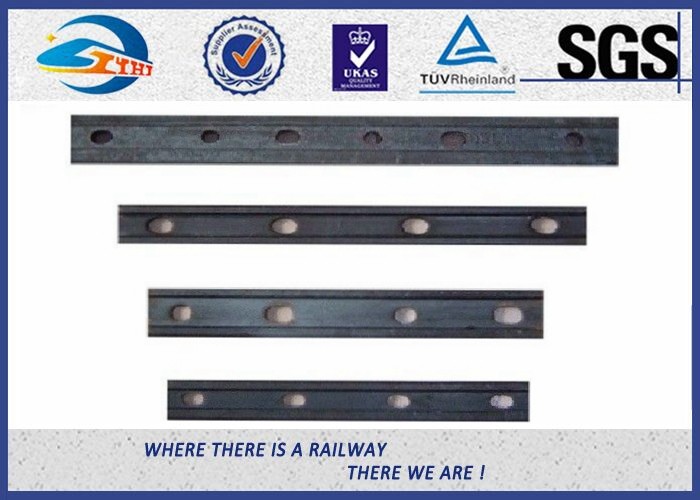

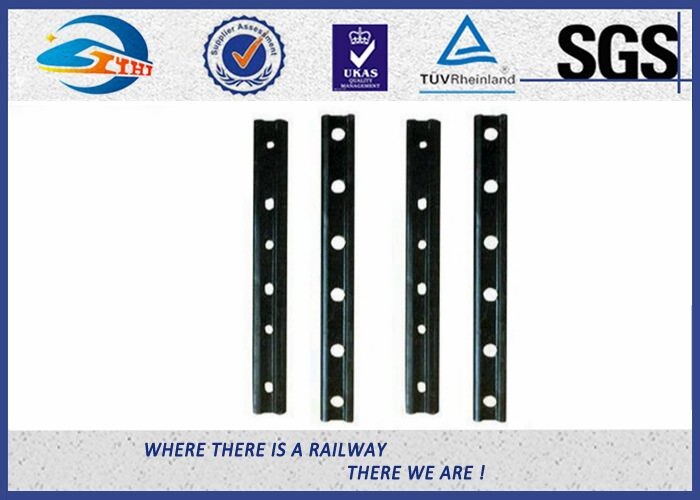

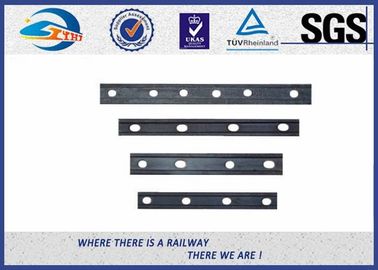

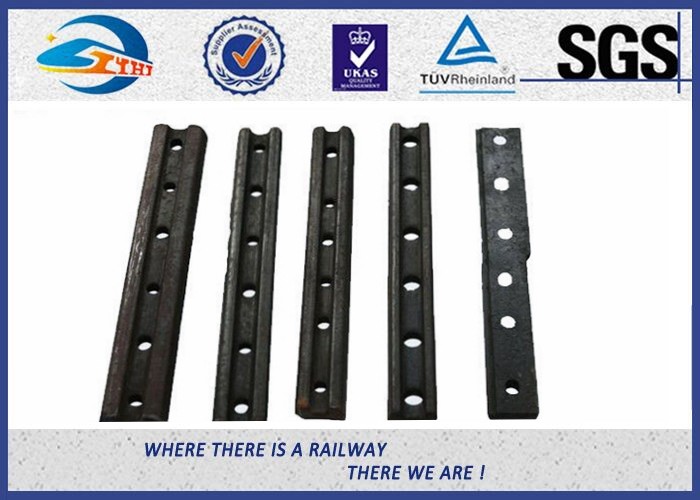

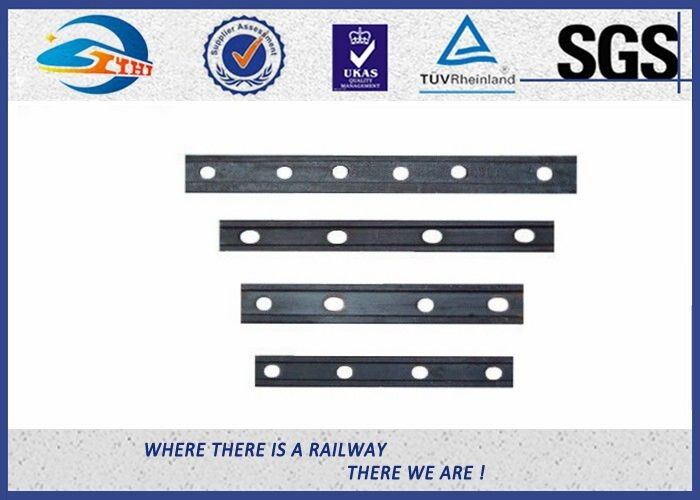

Ordinary rail fish plates are made of the general material Q235 steel, and can be used in various types of rail tracks. The appearance and weight of ordinary rail joints change based on the weight of railway tracks. Main types of ordinary railway fish plate include 4hole and 6hole variants.



We produce specially designed fish plates to join two different rail sections of rail tracks for various

customers when they require them.


Type Length/Diameter Weight(Kg)
115RE 4 hole- 24 ″ 17.04
115RE 6 hole -36 ″ 25.56
132-136RE 4hole-24 ″ 17.75
132-136RE 6hole-36 ″ 26.63
UIC60 4 hole - 630/ ¢ 26 18.07
UIC60 4 hole-600/ ¢ 28 17.47
UIC60 4 hole - 630/ ¢ 25 18.1
UIC54 4hole 14.34
UIC54 6hole- 800 19.94
BS80A 4hole 6.5
BS90A 685.8 / ¢ 26 13.23
BS90A 792.9/ ¢ 26 .2 15.34
90/91LB 4 hole 18.08
90/91LB 6hole 19.9
50Kg 4hole 14.3
50Kg 6hole 19.5
BS75R 4hole 6.56
BS60A 4hole 5.61
S49 4 hole 9.71


Typical railway fish plate types


According to different applications, rail joints can be classified into many types. Typical rail joint types include ordinary rail joints, insulated rail joints, non-standard rail joints and compromise rail joints.


Insulated rail joint


The raw material and production process of insulated rail joints is decided by the process standard of insulating material. Insulated rail joints are the same size as ordinary rail joints, and are generally applied at railway sections near power plants. Insulated rail joint can effectively prevent the occurrence of electrical leakage accidents.


Non-standard rail joint


Non-standard rail joints have various types depending on the section and speed of different railways. Normally, non-standard rail joints have three types with differing weights, pitches and appearances.


Compromise rail joint


Compromise rail joint are different to non-standard rail joints, and include bulge railway fishplate and railway switch expansion joints. Compromise rail joints can be customised and used in switch expansion joints or railway sections with special designs and requirements. Compared to other types of rail joint, compromise rail joint are difficult to process.


Installation of railway fish plates


Railway fish plate installation procedures can be summarised in four steps:

Maintenance of railway fish plates


Railway fish plate is a rail component that is widely applied in railway tracks. Vehicle can produce huge impulse and friction force when the train runs at high speed. Safe railway transportation requires high-quality, regularly maintained railway fish plates.
