Low Friction Train Wheel Composite Railway Brake Blocks Cast Iron / Locomotive Brake Shoe

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: According to customers’ drawing
Minimum Order Quantity: 2000pcs
Price: Negociable
Packaging Details: 25kg/woven box, 36boxes/pallent, 24pallets/container
Delivery Time: 25days after receiving advance payment
Payment Terms: T/T, 30% in advance
Supply Ability: 100000pcs/month
Production Name:: Low Friction Train Wheel Composite Brake Block Cast Iron / Locomotive Brake Shoe Type:: Composite Brake Block
Material:: Composite Material Surface:: Plain Oiled And Customized
Application: Train, Railway
High Light:

composite brake block

,

anchor brake shoe

Low Friction Train Wheel Composite Brake Block Cast Iron / Locomotive Brake Shoe

Brake block, Brakes are used on the cars of railway trains to enable deceleration, control acceleration (downhill) or to keep them standing when parked. While the basic principle is familiar from road vehicle usage, operational features are more complex because of the need to control multiple linked carriages and to be effective on vehicles left without a prime mover. Clasp brakes are one type of brakes historically used on trains.



BrandSUYU
NameRailway Friction composite brake block / brake shoe / brake rail pad
TypeAccording to customers’ drawings, for train or wagon
ApplicationHeavy Duty Truck.Train.Bus,Automobile,petroleum drilling machine.
MaterialCast iron HT200Composite material
DetailsRefer to standard GB/T 9439-1988

1.rail way composite Brake shoe Material:
Composite material, high friction composite brake shoe, low friction composite brake shoe
2.Advantage:
--Composite friction material bearing high energy braking;
--High coefficient of friction and stability,
--small heat fade for coefficient of friction,
--Temperature insensitiveness,
--Develop according to the samples or drawings
--Certification:ISO9001-2000

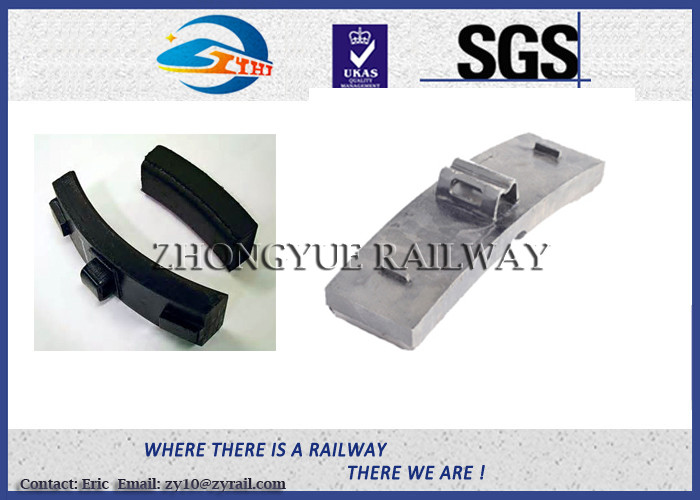

Low Friction Train Wheel Composite Railway Brake Blocks Cast Iron / Locomotive Brake Shoe 0
SGS approved Composite Material brake shoes, brake block,brake pad
Chemical compositions of steel support
C % < 0.13%,
S % < 0.062%,
P % < 0.062%.


1. Physical and mechanical properties of composite
Railroad Friction composite brake block / brake shoe
2. Operational heat

Our composite brake block won't melt or burn and continues to work at a temperature of 250℃
It may burn but causes no flame at a temperature of ≥ 400℃.

3. Materials of cast iron railway brake block and composite railroad brake shoe

A. The materials of composite brake block consist of 3 main substances including reinforcing fiber, organic/inorganic filler and resin bound.
B. It has a high level of uniformity.
C. It can be separated from the backing plate.
D. It contains no asbestos, lead, zinc or other mixtures.
E. It also contains no toxic materials.
F. The hardness of the material is lower than the wheel's.
G. It causes no strong smell in friction.

5. Performance

A. Excessive wear won't be caused on the surface of the wheel and the composite brake block.
B. The composite brake block will not cause the wheel porous or cracked.
C. It won't stick at the wheel during braking therefore won't cause uneven wheel surface.
D. It won't cause wheel slipping during full braking in wet conditions.

6. Test procedure

A. Vernier caliper or other methods are used to test the dimension of the brake block.
B. Laboratory test
Specific gravity test: standard ASTM D 792 or equivalent method
Coefficient of friction test: Standard ASTM D 1894 or equivalent method
Hardness test: standard ASTM D 785 or equivalent method
Shear resistance test: standard ASTM D 732 or equivalent method
Press test: Standard ASTM D 695 or equivalent method
Bending test: Standard ASTM D 790 or equivalent method

Thermal properties test: standard ASTM D 177 or equivalent method.

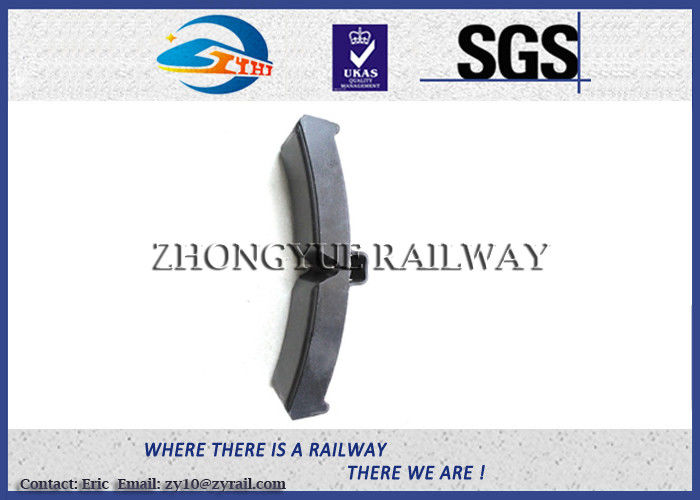

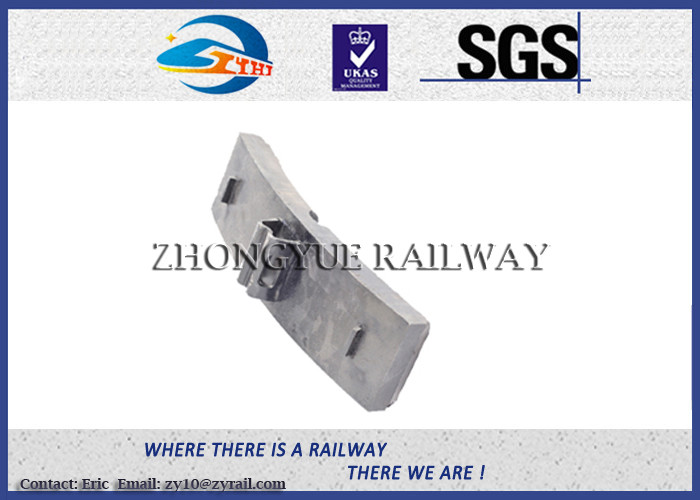

Low Friction Train Wheel Composite Railway Brake Blocks Cast Iron / Locomotive Brake Shoe 2Low Friction Train Wheel Composite Railway Brake Blocks Cast Iron / Locomotive Brake Shoe 3

If you have any other demands on models of rail/ rail fastener, welcome to contact me.
