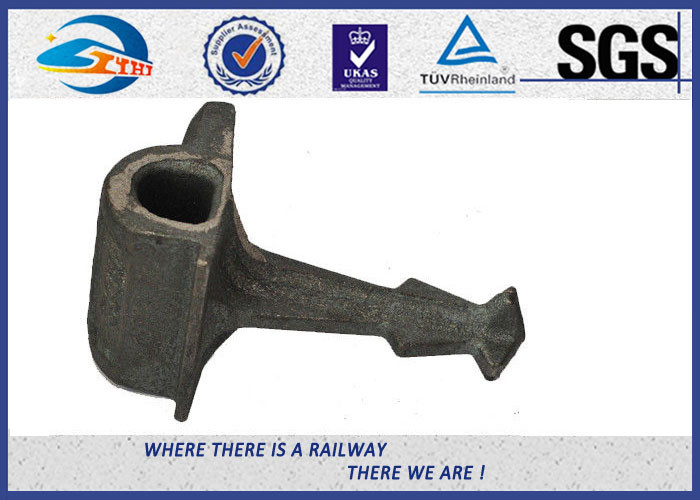

Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Minimum Order Quantity: 2000pcs
Price: Negociable
Packaging Details: 25kg in double-layer woven bag with fumigation-free wooden pallet
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000 pcs/month
Product Name: Rail Shoulder Standard: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Grade: 4.6.4.8.5.6.8.8.10.9. Material: QT500-7 (GGG50), QT450-10(GGG45), QT400-15(GGG40)
High Light:

iron shoulders

,

railway fastening system

50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail





Specifications:

The iron shoulder is cast in the concrete ties for fixation of elastic rail clips. Our rail cast iron shoulders include

M.C.I. shoulder manufactured from pearlitic malleable iron and S.G.C.I. shoulder manufactured from spheroid

graphite iron. We offer two types of iron shoulders. One is Single Stem Iron Shoulder used in pre-stressed

concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.



Casting shoulders are pressed in concrete sleeper and assembled with E clip in order to fasten the rail. The

material we use is cast iron and the mechanical property and chemical composition of the rail cast iron shoulder are shown below:





Brand Zhongyue
Name Plain Surface Cast Iron 5.6 Grade Rail Shoulder For Fixing Elastic Rail Clip
Type For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs
Or the type by customers’ drawings
Material QT500-7 (GGG50) QT450-10(GGG45) QT400-15(GGG40)
Chemical composition(%) C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03 C:3.5-3.60, Mn: ≤0.5, Si:3.00-3.20 ,P:≤0.07, S:≤0.02
Surface plain (oiled)



This type of rail shoulder is produced by hot forging, used together with clip bolt and special rail clip to fix the rail.

The material can be low carbon steel and mid carbon steel, according to our customers' requirement.

Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 0









Production Process



Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 1



Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 2



Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 3

IF YOU NEED MORE PRODUCT INFORMATION PLEASE CONTACT ME.


Contact: Janet Jiang zy15@zyrail.com



Our main products:
Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.

Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 4



About us



Founded in 2003, Suyu is the largest railway fastener manufacturer in China. We are committed to providing our global customers with high quality and economically priced railway fastener products, including our rail sleeper screw, rail spike, railway bolt, and elastic rail clip.

With certificates SGS, TUV, ISO9001-2008, we supply our products, to famous companies such as VAE, and Hilti. In Suyu Group, quality control management is always a priority at Suyu. We welcome costomers all around the world to visit our factory and our office.



Welcome to Visit Our Factory!



Plain Surface Cast Iron Rail Shoulder Embedded Part For Railway Fastening System 5
