| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | BS80A/BS100A |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negociable |
| Packaging Details: | steel pallet |
| Delivery Time: | 45 days after order |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 2000 tons per month |
| Surface Treatment: | Oiled | Weight: | 6.8kg |
|---|---|---|---|
| Application: | For BS80A Steel Rail | Full Set: | 2pcs Of Fishplate, 4 Pcs Of Bolts & Nuts & Washer |
| Holes: | 4 Holes | ||
| Highlight: | railroad fish plate,steel fish plates |
||

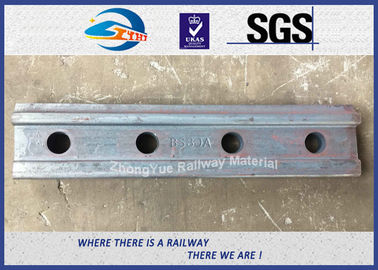

High Tensile Railway Fishplate for BS80A /BS100A
Other Name: Fishplate, Joint bar, splice bar track
Description:
A fishplate is a metal bar that is bolted to the ends of two rails to join them together in a track. The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a carbon steel plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.
A full set of Fishplate includes: 2 pieces of fishplate, 4 pcs of bolts& Nuts& Washer
Application:
| Brand | ZhongYue | |||
| Name | BS80A fish plate | |||
| Type | Length /Diameter | Weight(Kg) | Material | |
| BS80A | 4 hole- 24″ | 6.8 |
45#
Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
Production Process:
Inspection facility:
| Brinell Hardness Tester |
| Carbon and Sulfur Analyzer |
| Rockwell Hardness Machine |
| Automatic Impact Testing Machine |
| Metallographic Microscope |
| Automatic High-speed Analyzer |
| Fatigue Testing Machine |
| Metallographic Specimen Polishing Machine |
|
Metallographic Specimen Pointing Machine |
Our Company:
Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to our quality first policy, ZhongYue pays a lot attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
Sale Range
| 1.Rail fastening system |
| 2.Dog spike / Screw spike |
| 3.Bolts & Nuts |
| 4.Elastic clamp |
| 5.Rail anchor |
| 6.Rail shoulder |
| 7.Fish plate |
| 8.Tie plate |
| 9.Plastic / Rubber parts |
| 10.Brake pad |
| 11.Steel rail |
Packing:
On Steel Pallet
