ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

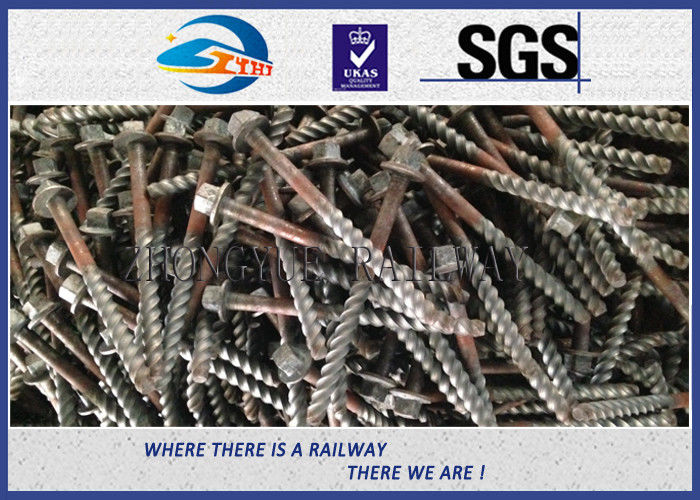

ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa

China ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa supplier
ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa supplier ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa supplier

Large Image :  ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: negotiable
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container
Delivery Time: 25-30days after receiving advance payment
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Product Name: Galvanized Washer Head Timber Drive Screw, Spiral Spike With Q235, 35#, 45# Material Material: Q235, 35#, 45#
Grade:: 4.6/5.6/5.8/6.8/8.8 Surface: Plain/black/hdg/yellow Zinc
Size:: 5/8''x10'' Standard: ASTM
Cold Bending::: 90 Degree Without Crack Tensile Strength:: ≥414Mpa

Galvanized Washer Head Timber Drive screw, Spiral spike with Q235, 35#, 45# material





We are largest manufacturer & supplier of comprehensive range of Railway SPIKES to our valued clients as per given specifications. These are available at market leading price, Also widely appreciated for its durability, corrosion resistance, and easy maintenance.

Washer Head Timber Drive screw, Spiral spike

One of the most popular rigid rail fixation items, are extensively used to tighten the rail track on wooden or concrete tie. Screw Spikes are used for fixing tie plates on the wooden ties in pre-bored holes and with plastic inserts pre-cast in concrete sleepers. They are extensively used on high-speed tracks with the extremely popular H.M. fastening.



Washer HeadThese efficient fasteners reduce installation andmaintenance costs. Used for timber construction,highway crossing planks and panels, bridge andtrestle guard rails, motor car set-off, docks, etc.Washer head is single forged, eliminating corrosionthat occurs between head and washer. Excellentholding power of threads provides tight installation.Spikes are easily installed, driven with maul orpneumatic spike driver. They turn as driven intoprebored holes, causing no damage to wood fibres.They cannot be overdriven and are easily removedwith hand or power tool for reuse.





Name 5.6 Grade 35# Screw Spike DIN Standard High Hardness
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical

properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

  Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50





WASHER HEAD TIMBER DRIVE SPIKES

5/8"TO 7/8" Diameters

6"TO 12" Lengths

Custom spikes may be ordered with different dimensions.



ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa

ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa



ASTM Standard Boat Spikes / Spiral Spike With Q235 35# 45# Material 414Mpa



Zhongyue's products ranges:





  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail
