GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV

China GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV supplier
GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV supplier GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV supplier

Large Image :  GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV

Product Details:

Place of Origin: China,Jiangsu
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: P38KG,P43KG,P50KG,P60KG

Payment & Shipping Terms:

Minimum Order Quantity: 25 ton
Price: negotiation
Packaging Details: In bundle
Delivery Time: 7 days after order
Payment Terms: T/T
Supply Ability: 5000 ton per month
Contact Now
Detailed Product Description
Product Name: Steel Rail Application: Railroad
Material: U71Mn Surface: Plain
Standard: GB2585-2007 Model: P50KG
Weight: 51.514kg/m Length: 12.5m - 25m



GB Standard P50KG GB50 Railway Steel Rail According GB2585-2007


Other Name: Railway Rail, Steel Rail, Railroad Track

Standard:   GB2585-2007

Model:  P38KG,P43KG,P50KG,P60KG


Application:

    Steel rail is used to guide the train wheels in the right position, by withstanding the large stress by the wheel when a train passes by, and transferring to the sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. The heavier the rails and the rest of the track work, the heavier and higher speed for the train these railway tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

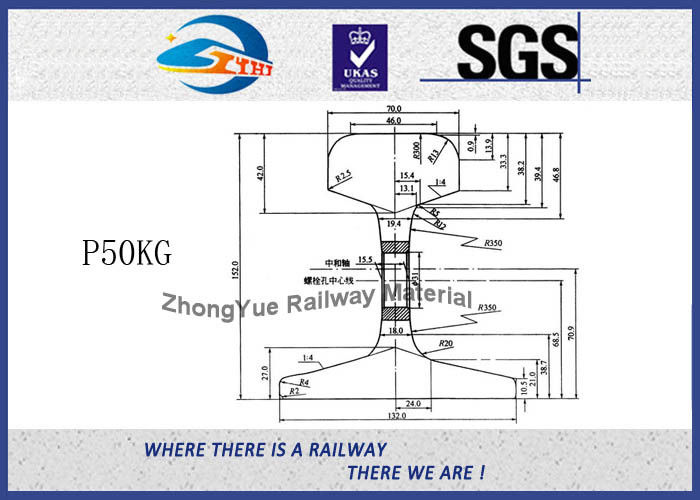

    All modern rails are made by hot rolled steel of specific cross-section (profile) which approximates to I-beam but is asymmetric about a horizontal axis---flat bottomed, so that can rest directly on the tie sleepers and bullhead rails well. A rail is composed by three parts of rail Head, Web and Foot, and overall cross-sectional dimensions are always made of rail height(A), Foot width (B) and Head width(C). Together with the Web thickness(t), the 4 sizes are overall dimensions for rail type classifications.

Specifications



Standard: GB2585-2007
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
  Head(mm) Height(mm) Bottom(mm) Web(mm)
P38KG 68 134 114 13 38.733 U71Mn 12.5-25
P43KG 70 140 114 14.5 44.653 U71Mn 12.5-25
P50KG 70 152 132 15.5 51.514 U71Mn 12.5-25
P60KG 73 170 150 16.5 61.64 U71Mn 12.5-25





GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV





Packaging: in bundle, 26 tons per container
GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV

Sale Range




1 Railway fastening system
2 Dog spike / Screw spike
3 Bolts & Nuts
4 Elastic clamp
5 Fish plate
6 Steel rail
7 Rail shoulder
8 Rail anchor
9 Tie plate
10 Plastic / Rubber parts
11 Brake pad




GB Standard P50KG GB50 Railway Steel Crane Rail According GB2585-2007 TUV

Our Company:
    Established in 2013, ZhongYue Railway Material has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.


    Sticking to the policy of quality first, ZhongYue Railway pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
