American Standard Railway Steel Rail ASTM A1 AREMA ASCE25 ASCE30 ASCE75 ASCE85

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: ASCE 25/30/40/60/75/85
Minimum Order Quantity: 26 ton
Price: negotiation
Packaging Details: In bundle
Delivery Time: 7 days after order
Payment Terms: T/T
Supply Ability: 1500 ton per month
Contact Now
Product Name: Steel Rail Application: Tram Rail
Material: 55Q Surface: Plain
Standard: ASTM A1, AREMA Model: ASCE25,ASCE30 ,ASCE40 , ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS​
Weight: From 24 To 86 Kg/m Length: 6m - 25m
High Light:

railroad steel rail

,

steel rail track



American standard Steel Rail





Other Name: Railway Rail, Steel Rail, Railroad Track



Standard:   ASTM A1, AREMA



Model:

ASCE25,ASCE30 ,ASCE40 , ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS​

ASCE25 ASCE30 ASCE40 ASCE60 ASCE75 ASCE85 90RA 115RE 136RE 175LBS​



Application:

Steel rail is used to guide the train wheels in position, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. The heavier the rails and the rest of the track work, the heavier and higher speed for the train these railway tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

All modern rails now are made by hot rolled steel of specific cross-section (profile) which approximates to I-beam but is asymmetric about a horizontal axis---flat bottomed, so that can rest directly on the tie sleepers and bullhead rails well. A rail is composed by three parts of rail Head, Web and Foot, and overall cross-sectional dimensions are always made of rail height(A), Foot width (B) and Head width(C). Together with the Web thickness(t), the 4 sizes are overall dimensions for rail type classifications.

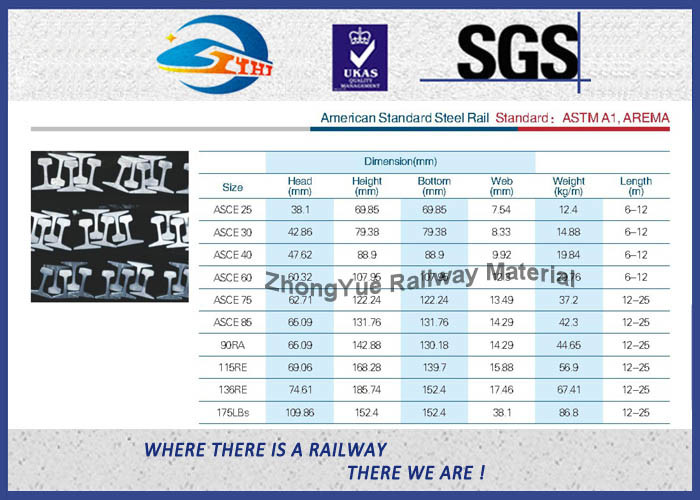

Specifications



Standard: ASTMA1, AREMA
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
ASCE 25 38.1 69.85 69.85 7.54 12.4 700 6-12
ASCE 30 42.86 79.38 79.38 8.33 14.88 700 6-12
ASCE 40 47.62 88.9 88.9 9.92 19.84 700 6-12
ASCE 60 60.32 107.95 107.95 12.3 29.76 700 6-12
ASCE 75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25
ASCE 85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25
90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25
115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25
136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25
175LBs 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25







American Standard Railway Steel Rail ASTM A1 AREMA ASCE25 ASCE30 ASCE75 ASCE85 0

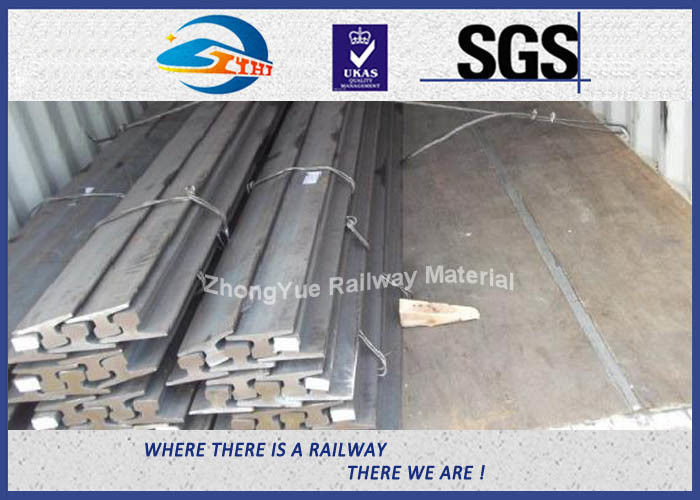

Packaging: in bundle, 26 tons per container

American Standard Railway Steel Rail ASTM A1 AREMA ASCE25 ASCE30 ASCE75 ASCE85 1



Sale Range


1 Railway fastening system
2 Dog spike / Screw spike
3 Bolts & Nuts
4 Elastic clamp
5 Fish plate
6 Steel rail
7 Rail shoulder
8 Rail anchor
9 Tie plate
10 Plastic / Rubber parts
11 Brake pad





American Standard Railway Steel Rail ASTM A1 AREMA ASCE25 ASCE30 ASCE75 ASCE85 2



Our Company:

    Established in 2013, ZhongYue Railway Material has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.

    Sticking to the policy of quality first, ZhongYue Railway pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
