6 Holes 132RE 136RE Railway Fish Plate Rail Joint Bars With Plain Colors

Basic Information
Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: 132RE,136RE
Minimum Order Quantity: 5000pcs
Price: USD10 to USD30
Packaging Details: 25kg/woven bag, 36bags/pallet, 24 pallent/container
Delivery Time: 25 to 40 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,000pcs per week
Material: 50# Application: Rail Joints Bar
Surface: Plain, Oiled, Oxide Black, Color Painting Sample: Available
Customization: Acceptable Types: 6 Holes
Technology: Forging
High Light:

railroad fish plate

,

steel fish plates

6 Holes 132RE 136RE Railway Fish Plate rail joint bars with plain colors



In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

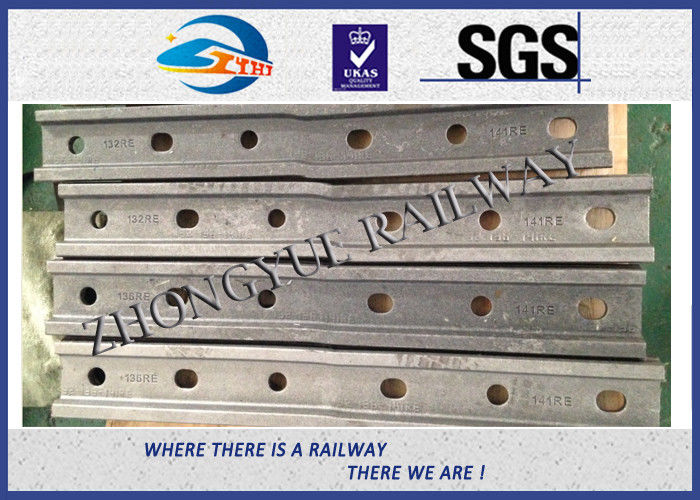

Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.

Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical 'composition(%):

 C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035







50#



Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole  - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71

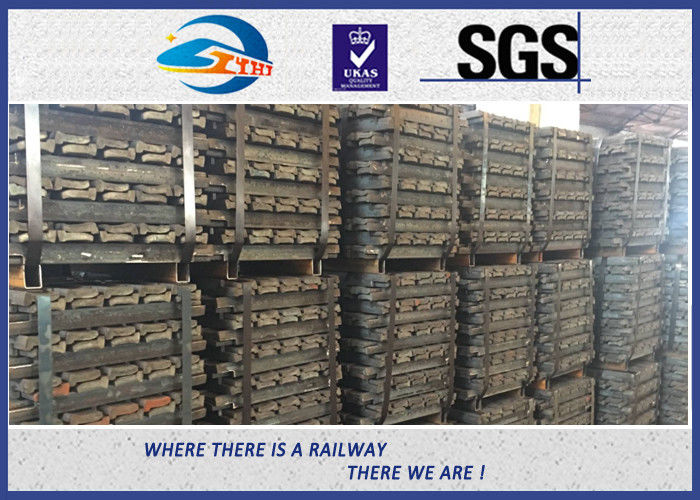

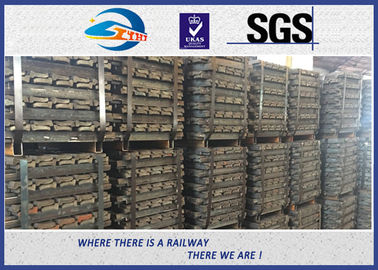

6 Holes 132RE 136RE Railway Fish Plate Rail Joint Bars With Plain Colors 0

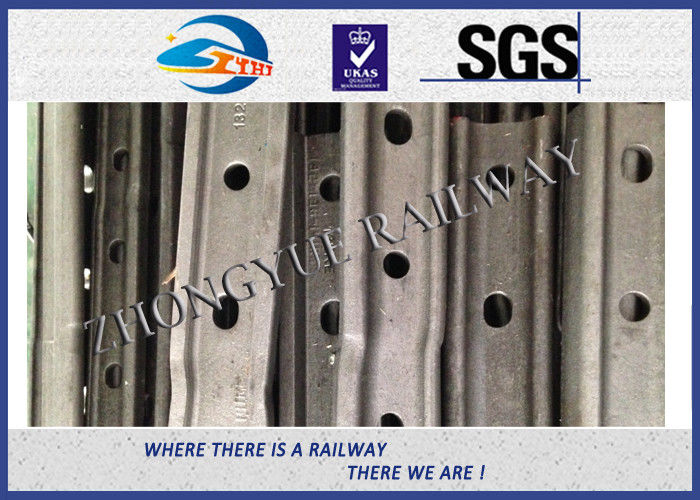

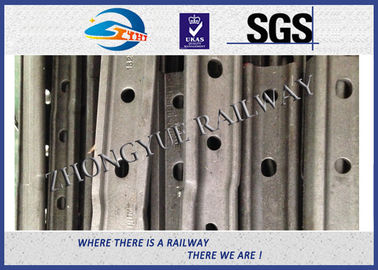

6 Holes 132RE 136RE Railway Fish Plate Rail Joint Bars With Plain Colors 1

If you have any other demands on models of rail/ rail fastener, welcome to contact me.
