Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes

China Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes supplier
Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes supplier Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes supplier Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes supplier

Large Image :  Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Railway Fish Plate

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Product Name: Fish Plate,rail Joint Bars Application: Railway
Type: 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. Material: 45#, 50#
Length: 4 Hole, 6 Hole Standard: BS, ASTM And DIN, Among Others.
Package: In Bundle

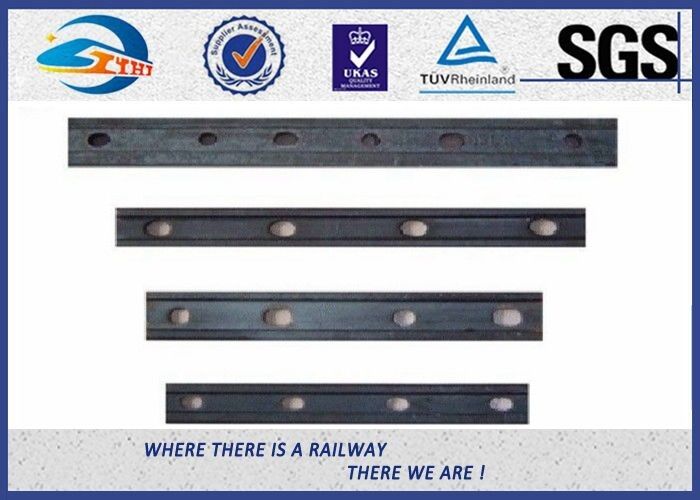

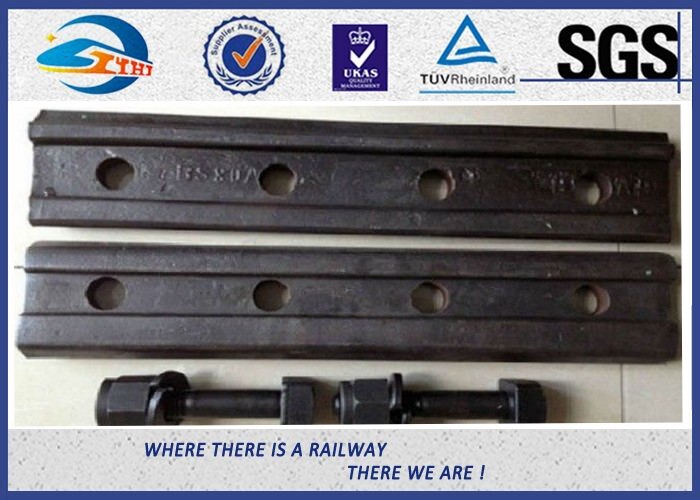

Railroad Joint Bars and Bolts, Railway Fish Plate Fishplate with 4 Or 6 Holes

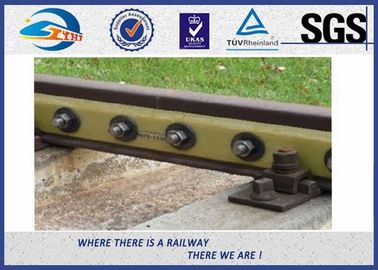

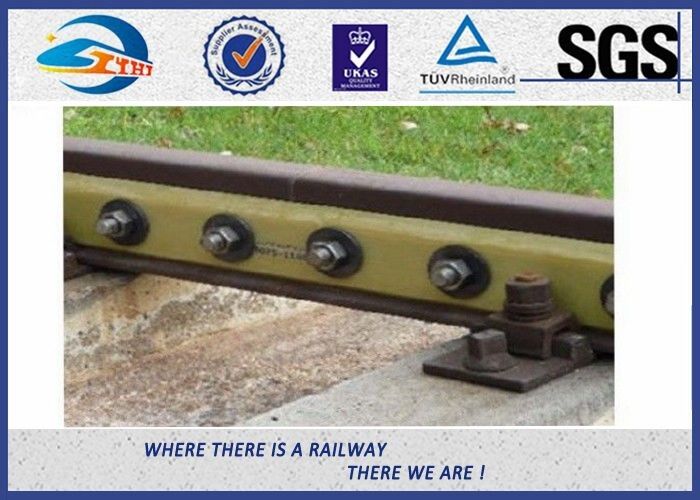

In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast. The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

Specifications:


We produce specially designed fish plates to join two different rail sections of rail tracks for various

customers when they require them.



Type

Length/Diameter

Weight(Kg)

115RE

4 hole- 24 ″

17.04

115RE

6 hole -36 ″

25.56

132-136RE

4hole-24 ″

17.75

132-136RE

6hole-36 ″

26.63

UIC60

4 hole - 630/ ¢ 26

18.07

UIC60

4 hole-600/ ¢ 28

17.47

UIC60

4 hole - 630/ ¢ 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / ¢ 26

13.23

BS90A

792.9/ ¢ 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71





Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes



Railroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 HolesRailroad Joint Bars And Bolts Railway Fish Plate Fishplate With 4 / 6 Holes

Our main products:UIC54 Rail Joint Bar, rail Fishplates, rail joints With GB Standard


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



customize track spikes / threaded spike / screw spike for Rail fastening system





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, ZHONGYUE pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
