| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | OEM |
| Minimum Order Quantity: | 2000sets |
| Price: | Negociable |
| Packaging Details: | according to clients' requirement |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000set per month |
| Product Name: | Railway Clips | Application: | Railway Fastening System |
|---|---|---|---|
| Similarity: | E Type, Nabla Type, SKL Type, KP Type, Etc. | Sample: | Available |
| Warranty: | Two Years | Customize: | Available |
| High Light: | fastening plate,crane rail clips |
||

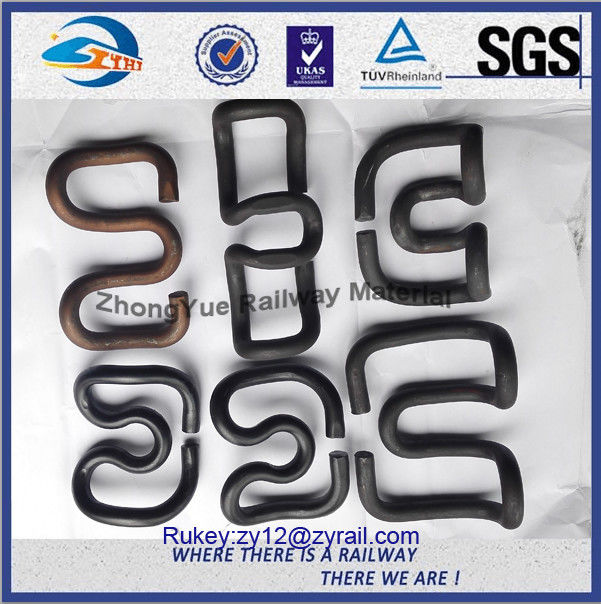

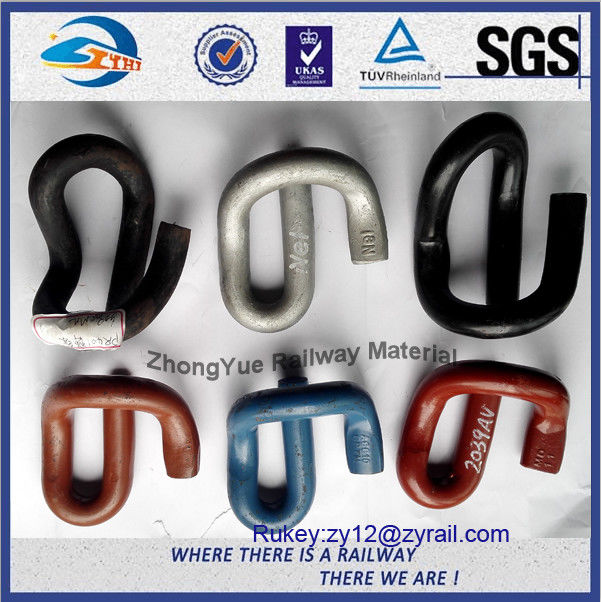

Custom Rail high quality E type SKL type Crane Clips with oxide sprayed color surface treatment
| Brand | ZhongYue | |||
| Name | E clip | |||
| Type | E clip (e1809, e2006,e2007,e2009,etc) | |||
| Skl clip (skl1,skl3,skl12,skl14) | ||||
| Or the type by customers’ drawings | ||||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness |
For e clip: 44-48HRC For skl clip: 42-47HRC |
|||
| Fatigue life |
for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking |
|||
| Surface | plain (oiled), Oxide black, color painting | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
Application of clips
1)E Type Rail Fastening
2)KPO Rail Fastening
3) Nabla fastening system
4)SKL 14 fastening system
Features:
Produce Process
| Clip Production Process | |
| 1 | raw material |
| 2 | shearing |
| 3 | heating to forging temperature (950-1000 degrees celsius) |
| 4 | forming |
| 5 | hardening |
| 6 | tempering below 350 degrees celsius |
| 7 | inspection |
| 8 | packing |
Surface Treatment
Inspection machine
Package
Similarity
Packing:
