4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated

China 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated supplier
4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated supplier 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated supplier 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated supplier 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated supplier

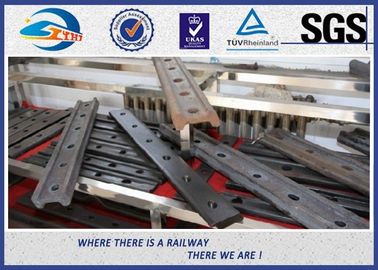

Large Image :  4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated

Product Details:

Place of Origin: Jiangsu,China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: UIC54

Payment & Shipping Terms:

Minimum Order Quantity: 1,500 pcs
Price: negotiation
Packaging Details: In bundles
Delivery Time: 10 work days after getting payment
Payment Terms: T/T or L/C
Supply Ability: 500,000 set per month
Contact Now
Detailed Product Description
Product Name: Railway Fish Plates With Various Internatinal Standards In Stocks Application: Railway / Track / Railroad
Type: QU Series Rail Material: 45#, 50#
Length: 4 Hole Surface: Plain / Oxide Black / Znic Plated

Railway Fish Plates with Various internatinal Standards in stocks



Rail fish plate, also called rail joint bars, is one of the most common kinds of rail fasteners. Below is the specific information about rail fish plate.



Definition: to connect or joint rail tracks



A rail fishplate, also called splice bar or joint bar, is a device used to connect the ends of two rails with bolts in a track. It can be divided into 3 types according to light rail, heavy rail and crane rail. The preferred spare part to fix a rail joint bar is fish bolt set, which is always made of a fishtail bolt, rail nut, flat washer and spring washer. Every 2 fishplates (one unit) need 6 or 4 fish bolts.Definition: to connect or joint rail tracks.




A rail fishplate, also called splice bar or joint bar, is a device used to connect the ends of two rails with bolts in a track. It can be divided into 3 types according to light rail, heavy rail and crane rail. The preferred spare part to fix a rail joint bar is fish bolt set, which is always made of a fishtail bolt, rail nut, flat washer and spring washer. Every 2 fishplates (one unit) need 6 or 4 fish bolts.

Function: to maintain the extended rail track’s continuity



There are bolt holes in the middle of a fishplate used in railway track. Above and below the hole horizontal axis, there are up and down working faces to touch the bottom of railhead and the top of rail flange, respectively. The backside of above mentioned up-working-face forms a transition section over the rail surface while extending upward, which becomes a bridge-arc of high in the middle but low at two ends, orientating along the length of the rail joint bars. Such bridge-arc frame is simple, capable of reducing the impact of carriage wheels to steel rail joints and strengthening the continuity of longitudinal strain at the steel rail joints in order to improve the train’s smooth passing.



Alias:

  1. Fishplate
  2. Fish plate
  3. Rail Fish plate
  4. Bar
  5. Rail Bar

Specifications:

We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.

Types:

  1. 4-Hole
  2. 6-Hole

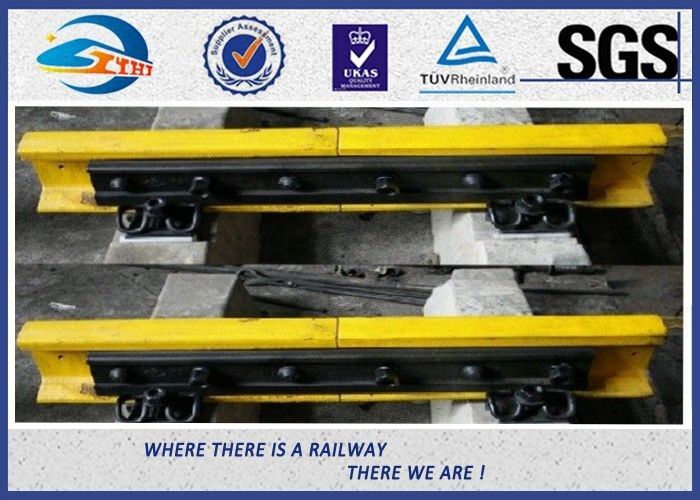

 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated
Suitable Rail Model

QU series: QU70 / 80 /100 120



Model Head Height Bottom Web Weight Material Length
mm mm mm mm kg/m m/pc
QU70 70 120 120 28 52.8 U71Mn 12
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 44 118.1 U71Mn 12


Adhering to our quality first policy, ZHONGYUE pays great attention to quality control management on our rail fish plate. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail fish plates are of high quality and up to customers' requirements.
As a leading manufacturer of rail fastening based in China, ZHONGYUE also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.


Similarity



Type

Length/Diameter

Weight(Kg)

115RE

4 hole- 24 ″

17.04

115RE

6 hole -36 ″

25.56

132-136RE

4hole-24 ″

17.75

132-136RE

6hole-36 ″

26.63

UIC60

4 hole - 630/ ¢ 26

18.07

UIC60

4 hole-600/ ¢ 28

17.47

UIC60

4 hole - 630/ ¢ 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / ¢ 26

13.23

BS90A

792.9/ ¢ 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71




Application

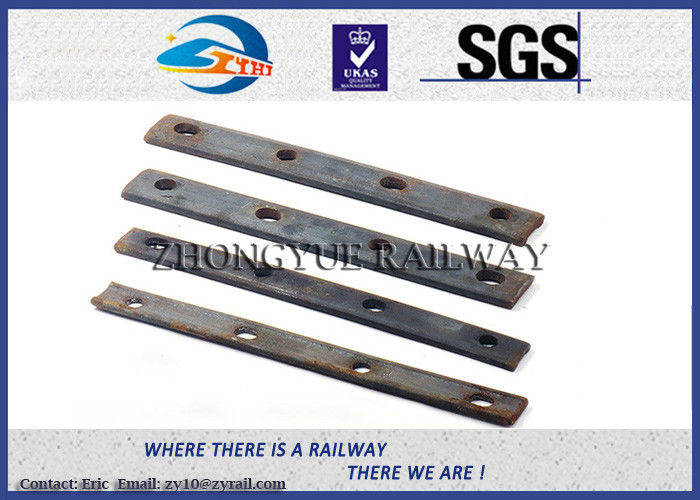

4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated


Sale Rang

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper

Quotation necessity ( the more, the better )

  1. Drawing with full size ( front / side section / hole )
  2. Hole: round / oval
  3. Material : 45# / 50#
  4. Surface Treatment
  5. Order quantity

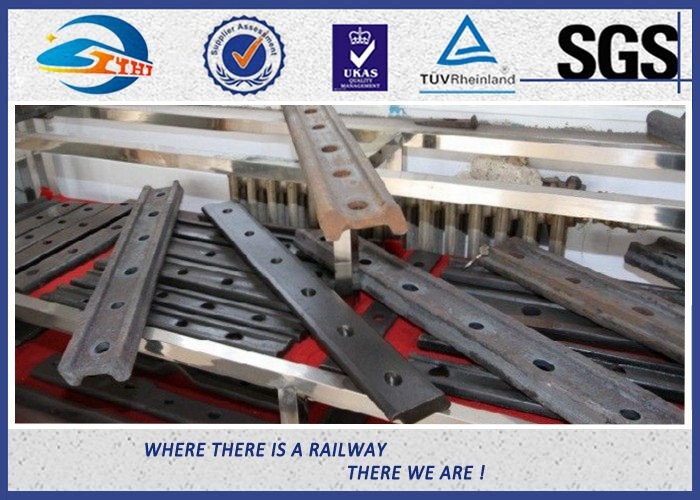

 4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated

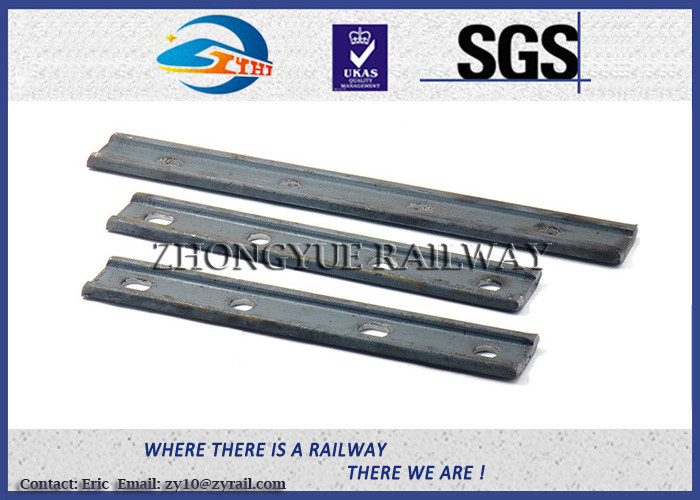

4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated4 Hole 45# 50# Steel Splice Bar Fish Plates In Railway Track With Znic Plated




HS Code: 73024 00000
If you have any other models of rail/ rail fastener, welcome to contact me.
