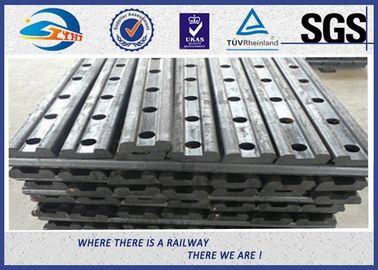

Customized Casting Steel Railway Fish Plate / Rail Joint Bars With BS ASTM Standard

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: BS80A
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000 set per month
Product Name: Fish Plate Application: Railway / Track / Railroad
Type: 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. Material: 45#, 50#
Length: 4 Hole, 6 Hole Standard: BS, ASTM And DIN, Among Others.
Name:: Customized Casting Steel Fish Plates / Rail Joint Bars For Rail Jointing
High Light:

railroad fish plate

,

steel fish plates

Customized Casting Steel Fish Plates / Rail Joint Bars for rail jointing



Alias:

  1. Fishplate
  2. Joint Bar
  3. Bar

Specifications:



We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.



Types:

  1. 4-Hole
  2. 6-Hole



Suitable Rail Model

  1. UIC860 Standard Steel Rail: UIC50 / UIC54 / UIC60
  2. American Standard Steel Rail: 115 RE / 132 RE
  3. BS Standard Steel Rail: 90A / 90R / 80A / 80'O' / 88'O' / 75R / 60R / 50R

We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.



Type

Length/Diameter

Weight(Kg)

115RE

4 hole- 24 ″

17.04

115RE

6 hole -36 ″

25.56

132-136RE

4hole-24 ″

17.75

132-136RE

6hole-36 ″

26.63

UIC60

4 hole - 630/ ¢ 26

18.07

UIC60

4 hole-600/ ¢ 28

17.47

UIC60

4 hole - 630/ ¢ 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / ¢ 26

13.23

BS90A

792.9/ ¢ 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



Adhering to our quality first policy, ZHONGYUE pays great attention to quality control management on our rail fish plate. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail fish plates are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, ZHONGYUE also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.







Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper

Quotation necessity ( the more, the better )

  1. Drawing with full size ( front / side section / hole )
  2. 4 or 6 holes
  3. Material
  4. Surface Treatment
  5. Order quantity

 Customized Casting Steel Railway Fish Plate / Rail Joint Bars With BS ASTM Standard 0Customized Casting Steel Railway Fish Plate / Rail Joint Bars With BS ASTM Standard 1Customized Casting Steel Railway Fish Plate / Rail Joint Bars With BS ASTM Standard 2






If you have any other models of rail/ rail fastener, welcome to contact me.
