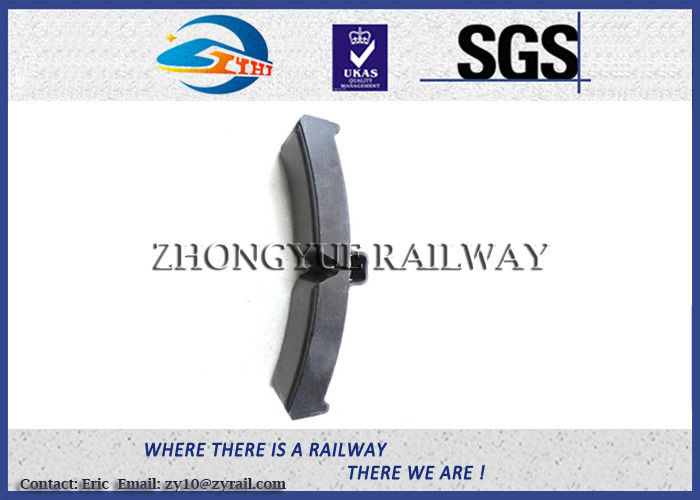

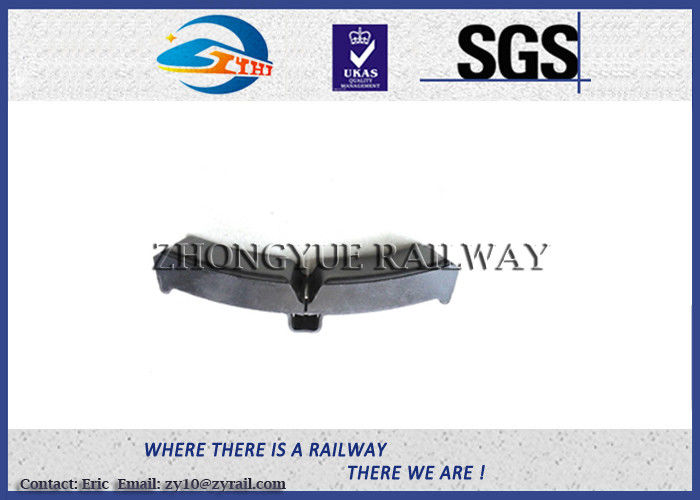

Composite Brake Shoes / Block Rail Fastening System With SGS Approved

China Composite Brake Shoes / Block Rail Fastening System With SGS Approved supplier
Composite Brake Shoes / Block Rail Fastening System With SGS Approved supplier Composite Brake Shoes / Block Rail Fastening System With SGS Approved supplier Composite Brake Shoes / Block Rail Fastening System With SGS Approved supplier Composite Brake Shoes / Block Rail Fastening System With SGS Approved supplier

Large Image :  Composite Brake Shoes / Block Rail Fastening System With SGS Approved

Product Details:

Place of Origin: JIANGSU
Brand Name: ZHONGYUE
Certification: ISO9001-2000
Model Number: According to customers’ drawings

Payment & Shipping Terms:

Minimum Order Quantity: 2000-5000pcs
Price: 0.1-40 USD Dollars
Packaging Details: 25kg/woven box, 36boxes/pallent, 24pallets/container
Delivery Time: 25days after receiving advance payment
Supply Ability: 100000pcs/week
Contact Now
Detailed Product Description
Production Name:: SGS Approved Composite Material Brake Shoes, Brake Block,brake Pad Type:: Composite Brake Block
Material:: Composite Surface:: Plain Oiled And Customized
Application: Train, Railway

SGS approved Composite Material brake shoes, brake block,brake pad



Brakes are used on the cars of railway trains to enable deceleration, control acceleration (downhill) or to keep them standing when parked. While the basic principle is familiar from road vehicle usage, operational features are more complex because of the need to control multiple linked carriages and to be effective on vehicles left without a prime mover. Clasp brakes are one type of brakes historically used on trains.





Brand SUYU
Name Railway Friction composite brake block / brake shoe / brake rail pad
Type According to customers’ drawings, for train or wagon
Application Heavy Duty Truck.Train.Bus,Automobile,petroleum drilling machine.
Material Cast iron HT200 Composite material
Details Refer to standard GB/T 9439-1988

1.rail way composite Brake shoe Material:

Composite material, high friction composite brake shoe, low friction composite brake shoe

2.Advantage:

--Composite friction material bearing high energy braking;

--High coefficient of friction and stability,

--small heat fade for coefficient of friction,

--Temperature insensitiveness,

--Develop according to the samples or drawings

--Certification:ISO9001-2000

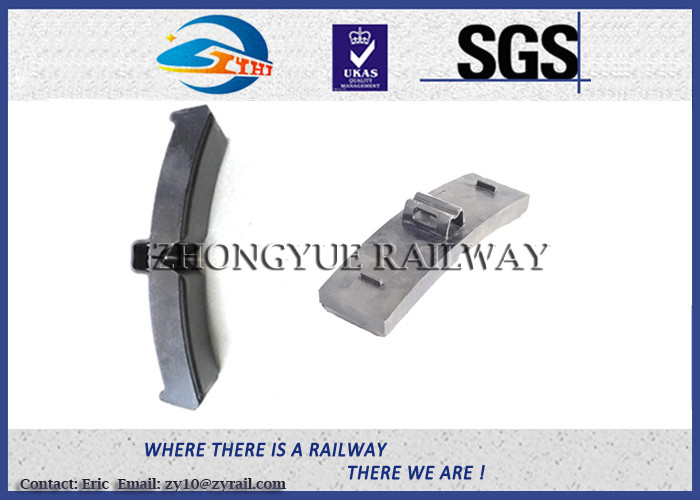

Composite Brake Shoes / Block Rail Fastening System With SGS Approved

SGS approved Composite Material brake shoes, brake block,brake pad

Chemical compositions of steel support

C % < 0.13%,

S % < 0.062%,

P % < 0.062%.





1. Physical and mechanical properties of composite

Railroad Friction composite brake block / brake shoe

2. Operational heat



Our composite brake block won't melt or burn and continues to work at a temperature of 250℃

It may burn but causes no flame at a temperature of ≥ 400℃.



3. Materials of cast iron railway brake block and composite railroad brake shoe



A. The materials of composite brake block consist of 3 main substances including reinforcing fiber, organic/inorganic filler and resin bound.

B. It has a high level of uniformity.

C. It can be separated from the backing plate.

D. It contains no asbestos, lead, zinc or other mixtures.

E. It also contains no toxic materials.

F. The hardness of the material is lower than the wheel's.

G. It causes no strong smell in friction.



5. Performance



A. Excessive wear won't be caused on the surface of the wheel and the composite brake block.

B. The composite brake block will not cause the wheel porous or cracked.

C. It won't stick at the wheel during braking therefore won't cause uneven wheel surface.

D. It won't cause wheel slipping during full braking in wet conditions.



6. Test procedure



A. Vernier caliper or other methods are used to test the dimension of the brake block.

B. Laboratory test

Specific gravity test: standard ASTM D 792 or equivalent method

Coefficient of friction test: Standard ASTM D 1894 or equivalent method

Hardness test: standard ASTM D 785 or equivalent method

Shear resistance test: standard ASTM D 732 or equivalent method

Press test: Standard ASTM D 695 or equivalent method

Bending test: Standard ASTM D 790 or equivalent method



Thermal properties test: standard ASTM D 177 or equivalent method.

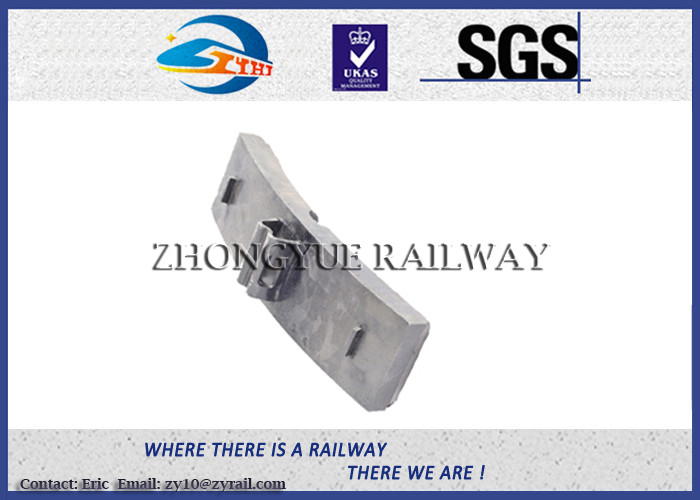

Composite Brake Shoes / Block Rail Fastening System With SGS ApprovedComposite Brake Shoes / Block Rail Fastening System With SGS Approved



If you have any other demands on models of rail/ rail fastener, welcome to contact me.



Our main products:UIC54 Rail Joint Bar, rail Fishplates, rail joints With GB Standard


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



customize track spikes / threaded spike / screw spike for Rail fastening system





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, ZHONGYUE pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
