ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008

China ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008 supplier
ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008 supplier ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008 supplier ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008 supplier ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008 supplier

Large Image :  ZhongYue SKL 60Si2CrA 55Si2Mn Rail Fastening System ISO9001 2008

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: E Type Rail Fastening System

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 10 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Material: Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 Application: Fastening Part
Certification: ISO9001:2008 Main Surface Treatment: Plain (oiled), Oxide Black, Color Painting
Standard Refers: DIN17221, BS970, GB/T1222 Name: ZhongYue SKL Fastening System E Type KPO Railroad Fastener System

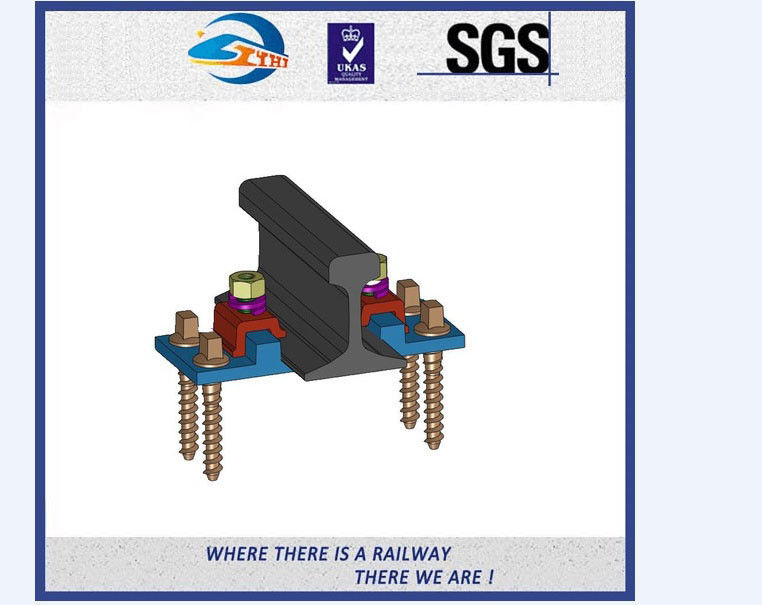

ZhongYue SKL fastening system E type KPO railroad fastener system





SKL fastening system
Meet all the requirements of Tram line. Top-down construction method is available, so sleepers are no needed. It can be used in general line, also in turnout area. It is feasible in open track, also in embedded track. Easy installation, Gauge adjustment +/-10mm, height regulation +20mm. The static stiffness is no less than 30KN/mm, different stiffness of rail pad can be provided according the requirements of customers.

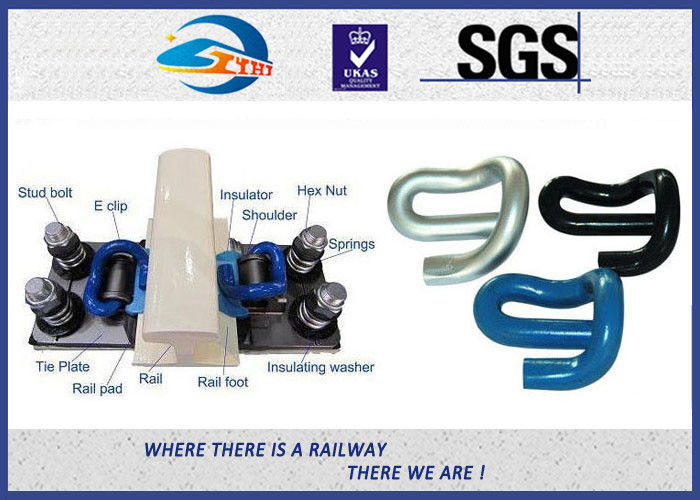

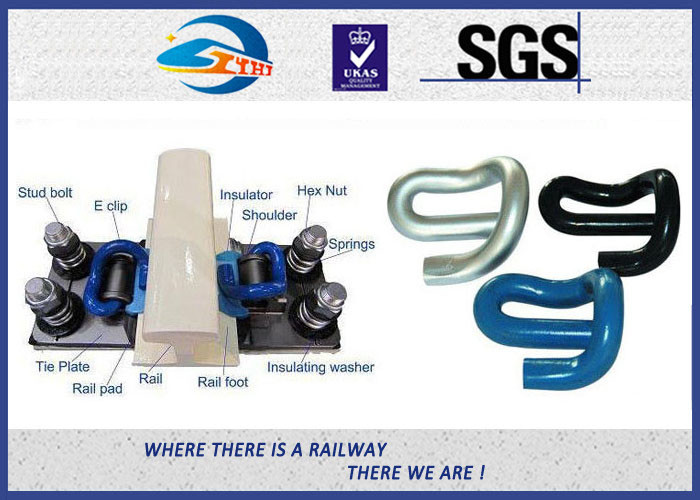

Technical Parameters

Part name

Type

Material

Finish

Remark

E clip

Dia. 16mm

Dia. 18mm

Dia. 20mm

60Si2MnA,

60Si2CrA,55SiMn

Plain oiled,

color painting,

or the other

custom finish

Hardness: 44-48HRC
Toe Load: 500-700kgf for Dia.16mm
750-900kgf for Dia.18mm
1100-1400kgf for Dia.20mm
Fatigue life:3 millions cycles

without breaking for Dia.18mm,

5 millions cycles without breaking

for Dia.20mm
Standard: DIN17221, BS970,

GB/T1222

Shoulder

UIC54,UIC60,

115RE,50kg rail,

60kg rail,BS80lbs,

BS100lbs

QT500-7

QT450-10

Plain oiled,

color painting

Different designs are available.

Rail pad

UIC54,UIC60,

BS80lbs,BS100lbs,

in ordered size

HDPE, EVA,

or rubber

Black or other colors

Different designs are available.

Insulator

UIC54,UIC60,

50kg rail, 60kg rail,

BS80lbs,BS100lbs,

and size as ordered

Reinforced

Nylon 66 (PA66)

Black, blue,

yellow, green

or other colors

Different designs are available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC

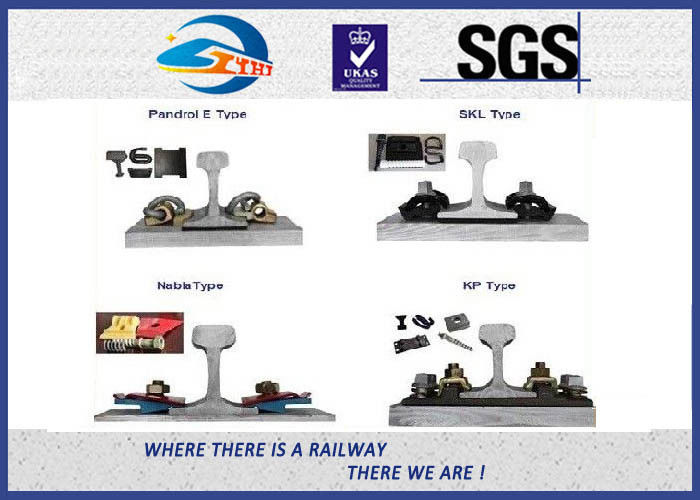

Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
