Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222

China Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222 supplier
Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222 supplier Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222 supplier Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222 supplier Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222 supplier

Large Image :  Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 5000 set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Elastic Rail Clip Application: Railway Fastening System
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
Warranty: Two Years Customize: Available

Zhongyue railway fastening rail clips elastic railroad clamp guage clip





Brand ZhongYue
Name rail clip

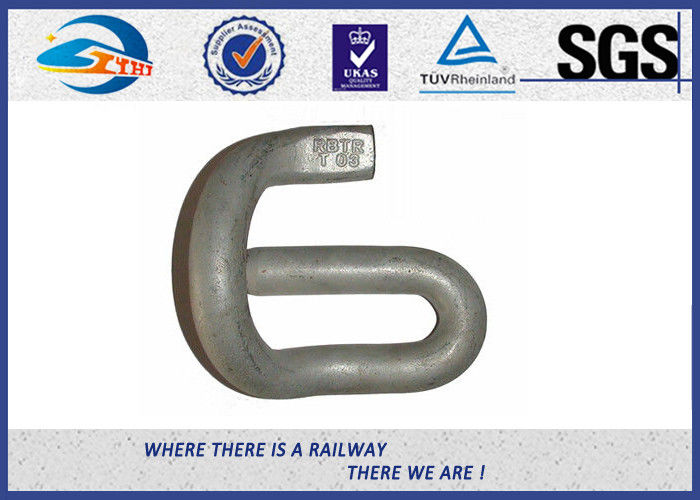

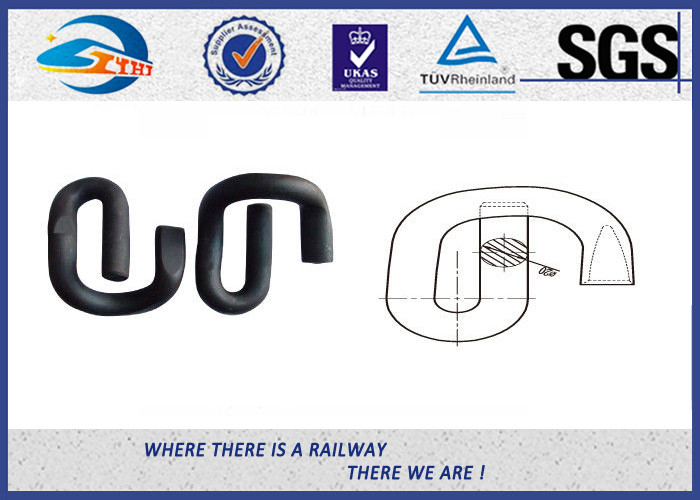

Type E clip (e1809, e2006,e2007,e2009,etc)

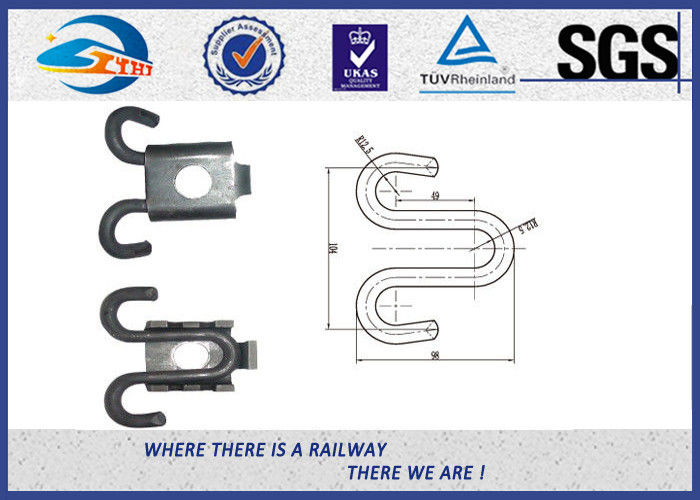

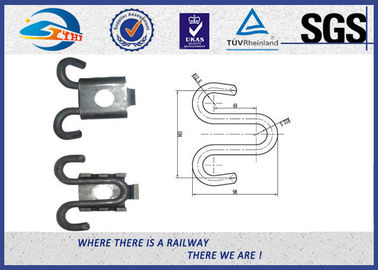

Skl clip (skl1,skl3,skl12,skl14)
Or the type by customers’ drawings
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222



Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222



Features:

  1. Fast clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222





Surface Treatment

  1. plain (oiled)
  2. oxide Black
  3. color painting
  4. DHG
  5. galavazing



Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity

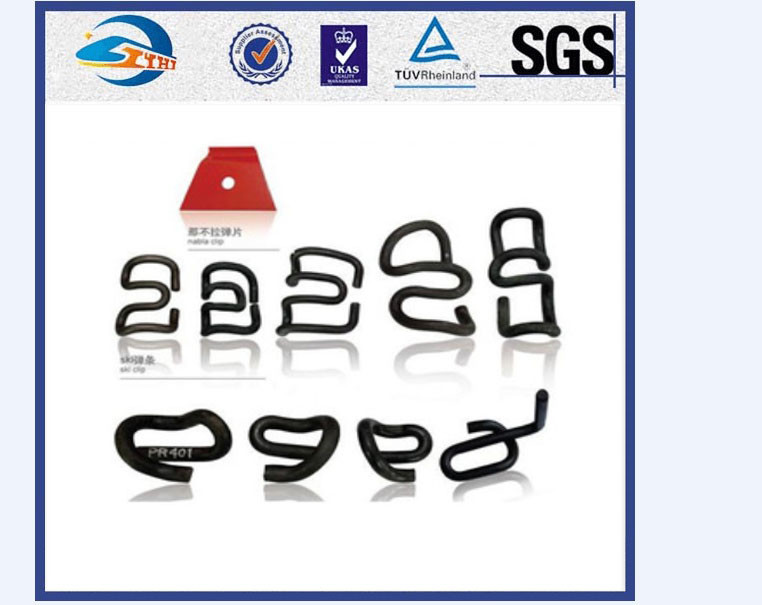

Similarity



  1. E clip system
  2. SKL1 clip system
  3. SKL2 clip system
  4. SKL3 clip system
  5. SKL12 clip system
  6. SKL14 clip system
  7. SKL21 clip system
  8. Nabla clip system
  9. KP clip system

Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222

Packing:



Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222



Skl1 Skl3 Skl12 Skl14 Guage Railroad Clips Railway Clamp BS970 GB/T1222
