| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | OEM |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | about 30 work days after getting payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 600,000 pcs per month |
| Product Name: | Railway Track Spikes Track Spike Dog Spikes Arema Standard | Sample: | Available |
|---|---|---|---|
| Grade: | 4.6, 8.8, 5.6, | Material: | Q235 35# 45# |
| Surface: | Zinc, HDG | Standard: | ISO898-1, UIC864-1, And NF F500-50 |
| Warranty: | Two Years | ||
| Highlight: | rail road spikes,boat spikes |
||

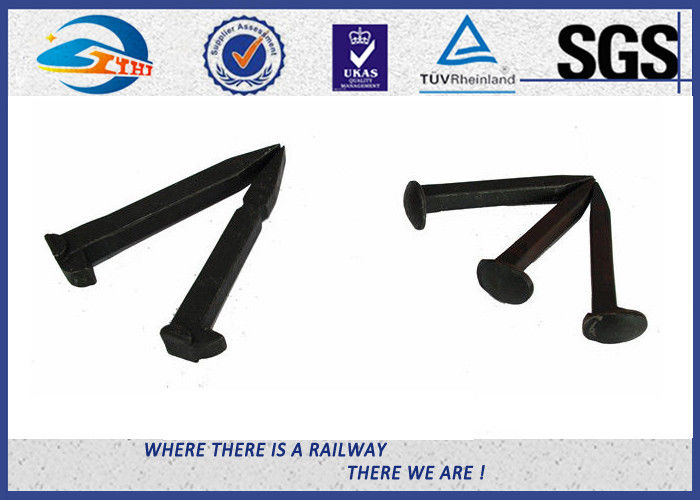

ZhongYue railway track spikes track spike dog spikes arema standard
Introduce:

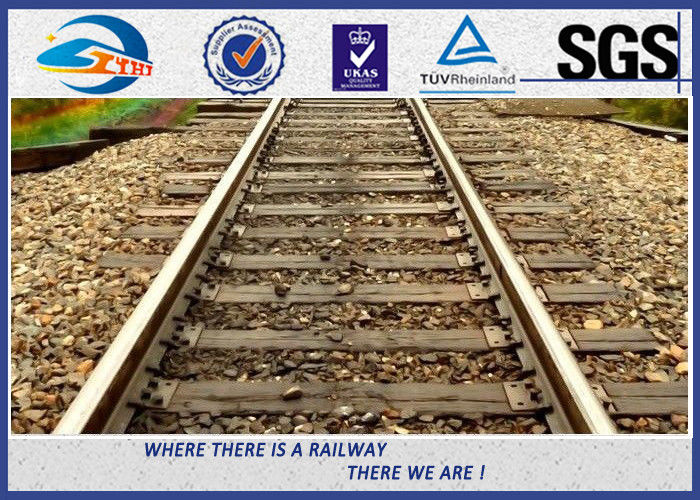

Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.
Description:
Brand |
ZhongYue |
||||||||
Name |
Track Spikes |
||||||||

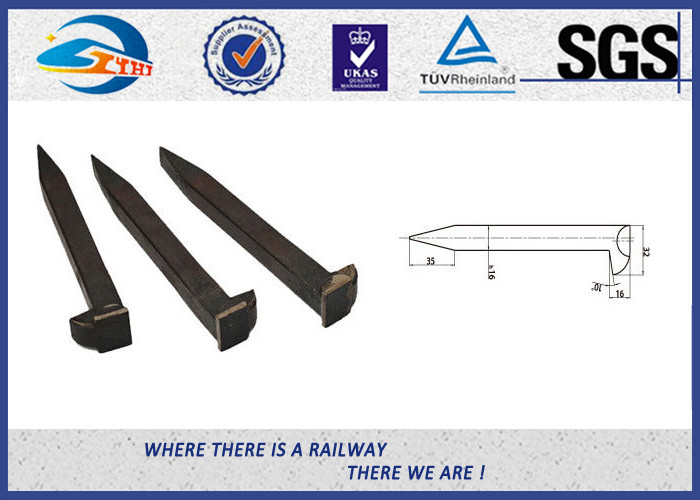

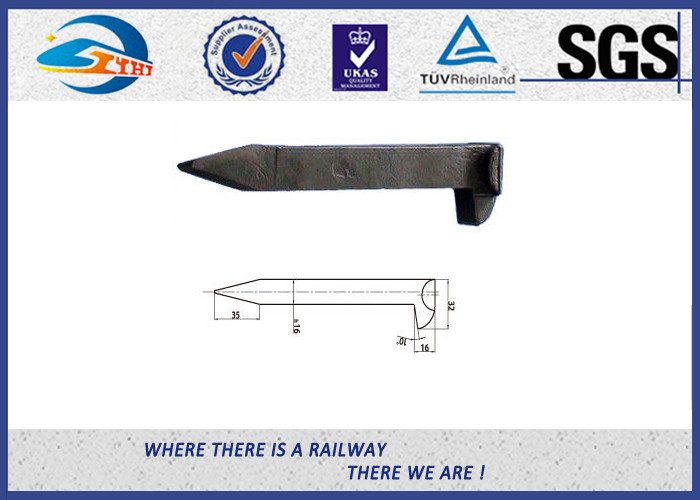

| Size | 16x16xL | 16x16xL | 5/8"x5/8"xL | 3/8"x3/8"xL | 16x16x170 | 16x16x150 | 9/16"xL | square | square 16mm |
| 5/8"x5/8"x5" | 5/8"xL | 10mm | 19mm | ||||||
| 16mm | Dia.22mm | ||||||||
| Grade | 4.6 | 4.6 | A370 | ASTM A65 Gr1,Gr2 | 4.6 | 4.6 | ASTM A65 Gr1,Gr2 | 4.6 | 4.6 |
| Material | Q235 | low carbon steel | Q235 | Q235 | Steel type | ||||
| low carbon | low carbon | low carbon | SS41 | low carbon steel | |||||
| Surface | plain (oiled) | ||||||||
| Standard refers | GB/T 1346 | GOST5812 | AREMA | AREMA | Ss-EN10025 | BS70R, BS60R | AREA | ||
Note (4.8 as a sample)
the first 4: tensile strength of material Q235 is 400MPa;
the second 0.8: the yield ratio is 0.8;
the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.
MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement
Process
Inspection machine
Zhongyue's products ranges:
