ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade

China ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade supplier
ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade supplier ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade supplier ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade supplier ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade supplier

Large Image :  ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade

Product Details:

Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pcs
Price: USD 0.3-1.0 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons / Month
Contact Now
Detailed Product Description
Product: Railway Fasteners Rail Screw Spike Screws 8.8 Grade Material: Carbon Steel Q235 Or 35#
Color: Can Be Customized Grade: 4.6, 5.6, 8.8, 10.9
Appliaction: In Rail Sleeper To Fasten Rails Sample: Available
Warranty: Two Years

ZhongYue railway fasteners rail spike screws 8.8 grade railway supplier



1. Introduce:

Railroad screws provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection

2. Technical Details

Brand ZHONGYUE
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical
properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa



Yield strength:
≥240Mpa

Yield strength:
≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa

  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without
crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard
refers

ISO898-1, UIC864-1, and NF F500-50





4. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.



5. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC



6. Usage:

Railway, mining, high speed way

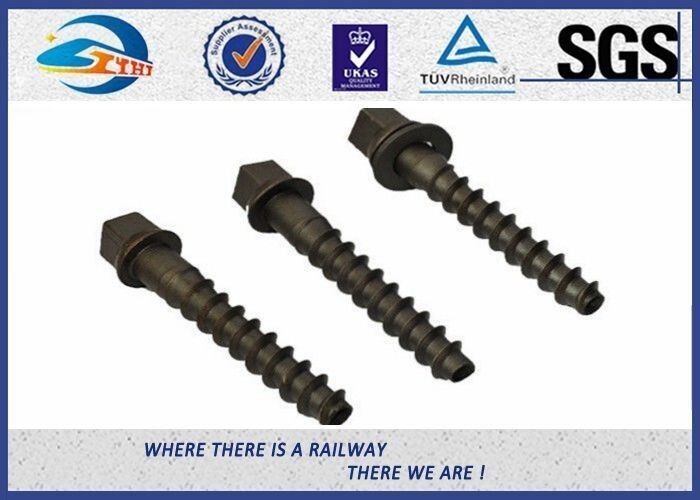

7. Photos for Reference

ZhongYue Railway Fasteners Rail Screw Spike Screws 8.8 Grade
