ZhongYue Carbon Steel Railway Sleeper Screws Railroad Spike 10.9 Grade

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: OEM
Minimum Order Quantity: 5000 pcs
Price: USD 0.3-1.0 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons / Month
Product: Screw Spike Manufacturers Railway Spike Railroad Screw 10.9 Grade Material: Carbon Steel Q235 Or 35#
Color: Black, White Or Yellow Surface: Plain (oil), Zinc, Hdg, Black, Etc
Appliaction: In Rail Sleeper To Fasten Rails Certificate: ISO9001, SGS
Warranty: Two Years
High Light:

stainless steel coach screws

,

railway sleeper fixing screws

ZhongYue Screw Spike Manufacturers Railway Spike Railroad Screw 10.9 Grade





1. Introduce:



Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection



2. Technical Details

Brand ZHONGYUE
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical
properties
Tensile strength:
≥400Mpa
Tensile strength:
≥500Mpa
Tensile strength:
≥800Mpa
Tensile strength:
≥1000Mpa
  Yield strength:
≥240Mpa
Yield strength:
≥300Mpa
Yield strength:
≥640Mpa
Yield strength:
≥900Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
  Cold bending:
90 degree without crack
Cold bending:
90 degree without crack
Cold bending:
90 degree without crack
Cold bending:
90 degree without
crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard
refers
ISO898-1, UIC864-1, and NF F500-50



3. Advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.





4. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





5. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert


6. Photos for Reference

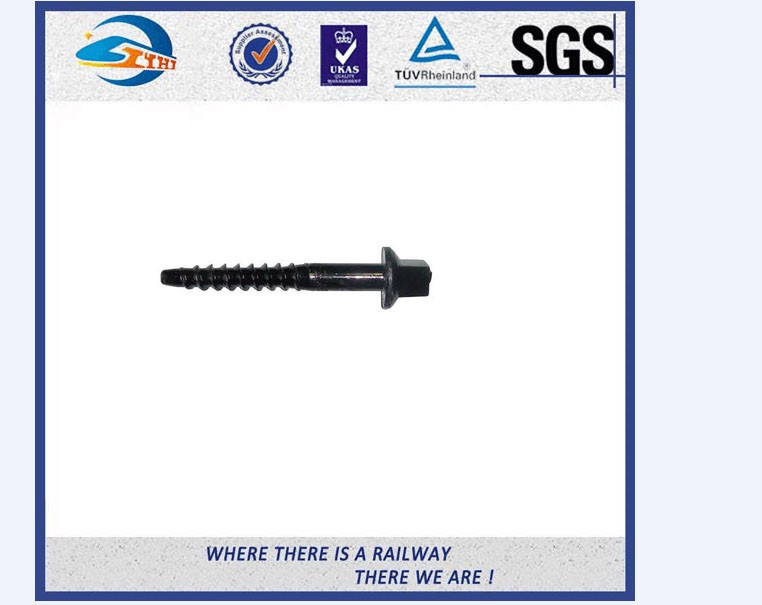

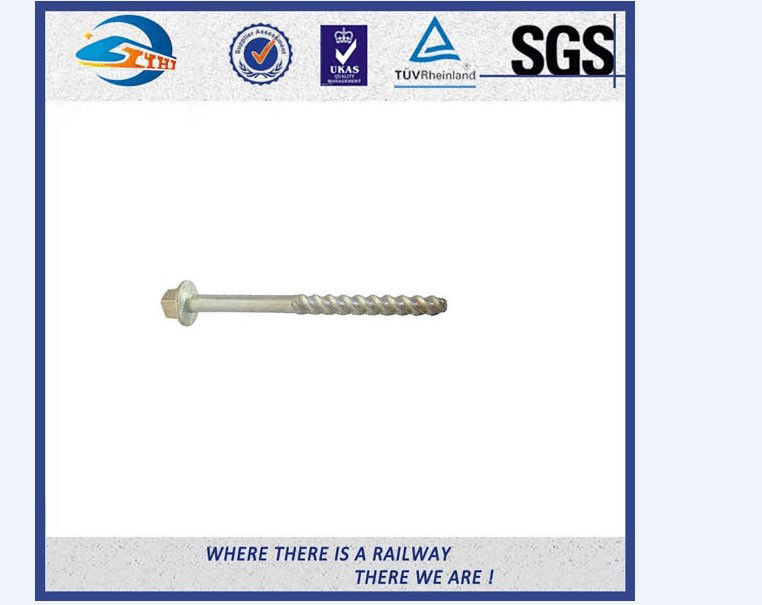

ZhongYue Carbon Steel Railway Sleeper Screws Railroad Spike 10.9 Grade 0ZhongYue Carbon Steel Railway Sleeper Screws Railroad Spike 10.9 Grade 1
