ZhongYue Railroad Coach Screw Spike M24 Railway Spike Screw 5.6 Grade

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: OEM
Minimum Order Quantity: 5000 pcs
Price: USD 0.3-1.0 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons / Month
Product: Railroad Coach Screw Spike M24 Railway Spike Screw 5.6 Grade Material: Carbon Steel Q235 Or 35#
Color: Black, White Or Yellow Surface: Plain (oil), Zinc, Hdg, Black, Etc
Appliaction: In Rail Sleeper To Fasten Rails Sample: Available
Warranty: Two Years
High Light:

stainless steel coach screws

,

railway sleeper fixing screws

ZhongYue Railroad Coach Screw Spike M24 Railway Spike Screw 5.6 Grade



1. Introduce:

A screw spike, rail screw (or lag bolt) is a large (~6 in or 152 mm length, slightly under 1 in or 25 mm) metal screw used to fix a tie plate or fasten rail. Screw spikes are fixed into a hole bored in the sleeper. The railway screw spike has a higher cost to manufacture than the rail spike but has the advantage of greater fixing power; approximately twice that of a rail spike, and can be used in combination with spring washers.





2. Specification:

Available Material 1. Stainless Steel: SS2, SS303, SS304, SS316, SS410, SS420
2. Steel: C45(K1045), C46(K1046), C20,etc.
3. Brass: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),
C27200CuZn37), C28000(CuZn40),etc.
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: 1213, 12L14, 1215, etc.
6. Aluminum: Al6061, Al6063, etc.
7. Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045,12L14,etc.
8. Alloy steel: SCM435,10B21, C10B33,etc.
Material Class 4.8 6.0 8.8 12.9
Specification Various head style and sizes per your request
Surface Finishing Zn-Plated, Ni-plated, Tin-plated, Passivated, Sandblast and Anodize;
Chromate, Polish, Electro Painting, Black Anodize, Plain, Chrome plated;
Hot Deep Galvanize(H.D.G.) etc.
Heat Treatment Tempering, Hardening, Spheroidizing, Stress Relieving.
Standard ISO, DIN, GB, IFI, B.S. ART.
Sample We could make sample within 7 days free of charge
Lead time Per on furniture hardware order quantity
Packing Boxs or pallet or customer request
Payment terms
L/C,T/T





3. Our advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.





4. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

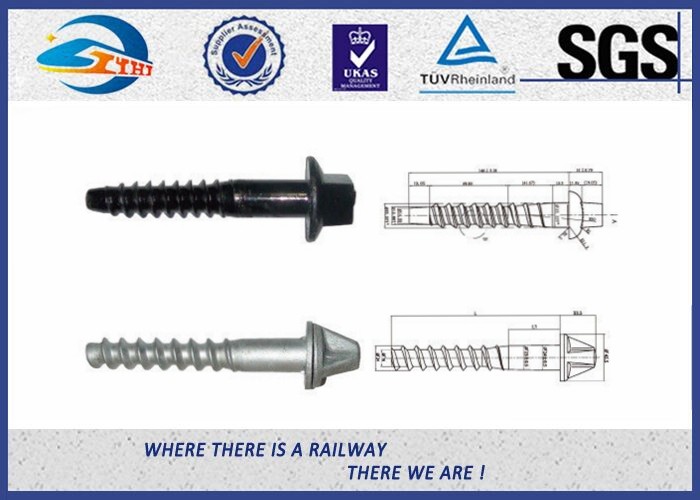

5. Photos for Reference:



 ZhongYue Railroad Coach Screw Spike M24 Railway Spike Screw 5.6 Grade 0

ZhongYue Railroad Coach Screw Spike M24 Railway Spike Screw 5.6 Grade 1
